Holders and components
505247

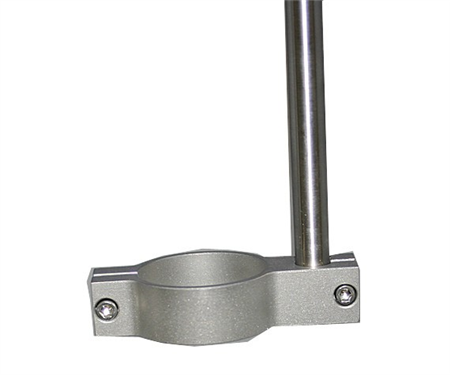

Drill Holder for OmniDrill. The Drill Holders were designed specifically for the Micromotor Drills
505249

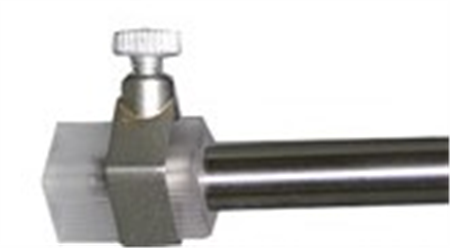

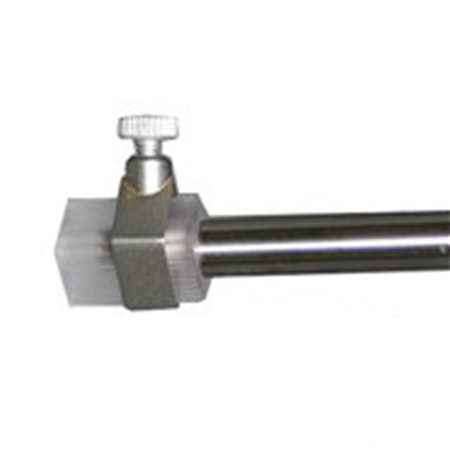

Standard Probe Holder-Corner Clamp: Standard Probe Holders include an 11mm square acrylic block connected to our standard 19.5cm standard shaft (6mm diameter) with grooves spaced 1 mm apart. The grooves (on three sides) facilitate loading of probes.
505250

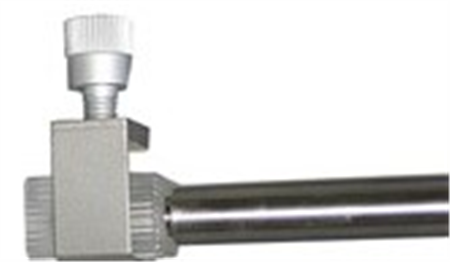

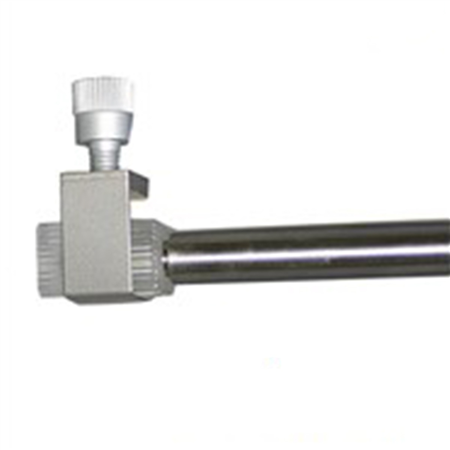

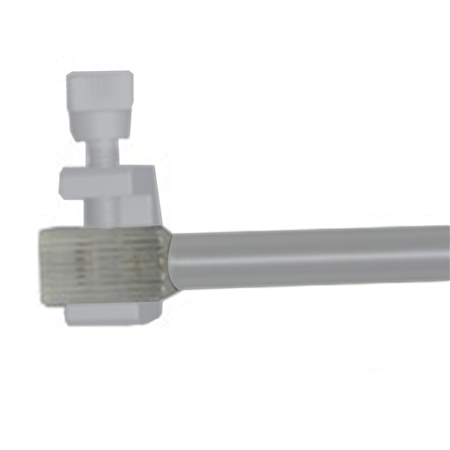

Standard Probe Holder - Side Clamp: Standard Probe Holders include an 11mm square acrylic block connected to our standard 19.5cm standard shaft (6mm diameter) with grooves spaced 1 mm apart. The grooves (on three sides) facilitate loading of probes.
505251

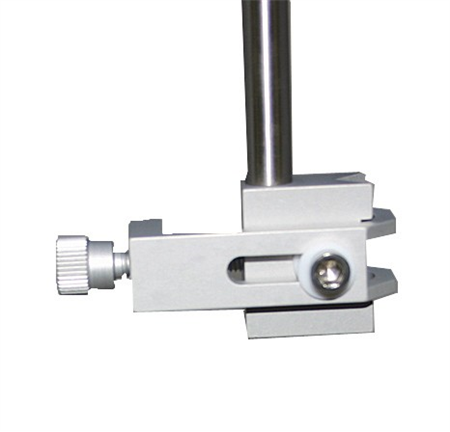

Large Probe Holder. The Large Probe Holder supports shafts with diameters from 6.5 mm up to 13 mm (0.5 inch). This holder is ideal for Hamilton™ Micro-syringes . A threaded drive pulls the sliding “U” holder against the outside of the probe, pulling the probe into a “V” notch for straight and reproducible positioning.
505253

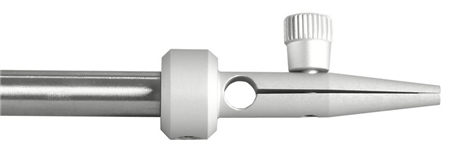

Cannula and Minipump Holder: The Cannula Holder was designed to hold 3.4 mm cannula heads, as manufactured by Plastics One™ for cannula sets, and DURECT for ALZET® Osmotic Pumps. Non-intrusive for cementing cannulas in place
The 505253 holds the cannula vertically directly in line with the shaft of the probe holder
505254

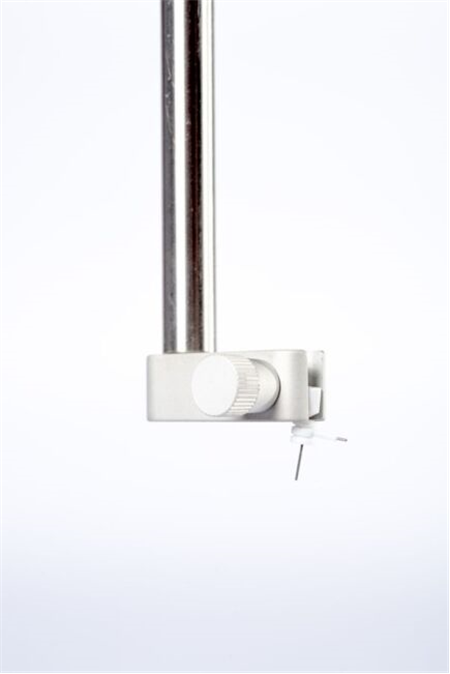

Cannula Holder: Cannula Holder was designed to hold 3.4 mm cannula heads, as manufactured by Plastics One™ for cannula sets, and DURECT for ALZET® Osmotic Pumps. Non-intrusive for cementing cannulas in place
The 505254 holds the cannula away from the shaft of the probe holder while the 505253 holds the cannula vertically directly in line with the shaft of the probe holder
505256
Microdialysis Probe Holder: Customized to fit a specific size of probe. The hole may be drilled to fit probes from 1.5 to 6.0 mm. Default size is 1.5 mm
505257

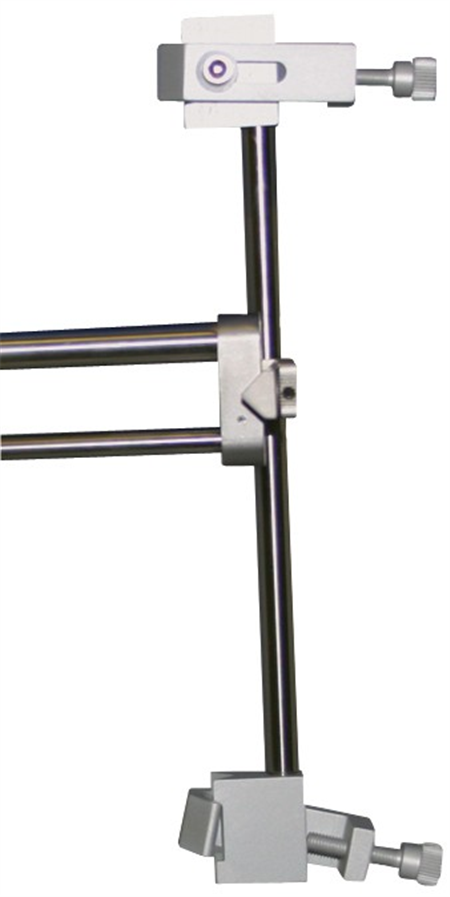

Dual Large Probe Holder: Double-Head Large Probe Holder has a large ”C” gripping component at each end, with the “V” clamp attachment. Clamps ¼"–½" diameter.
505258

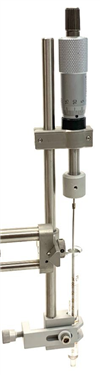

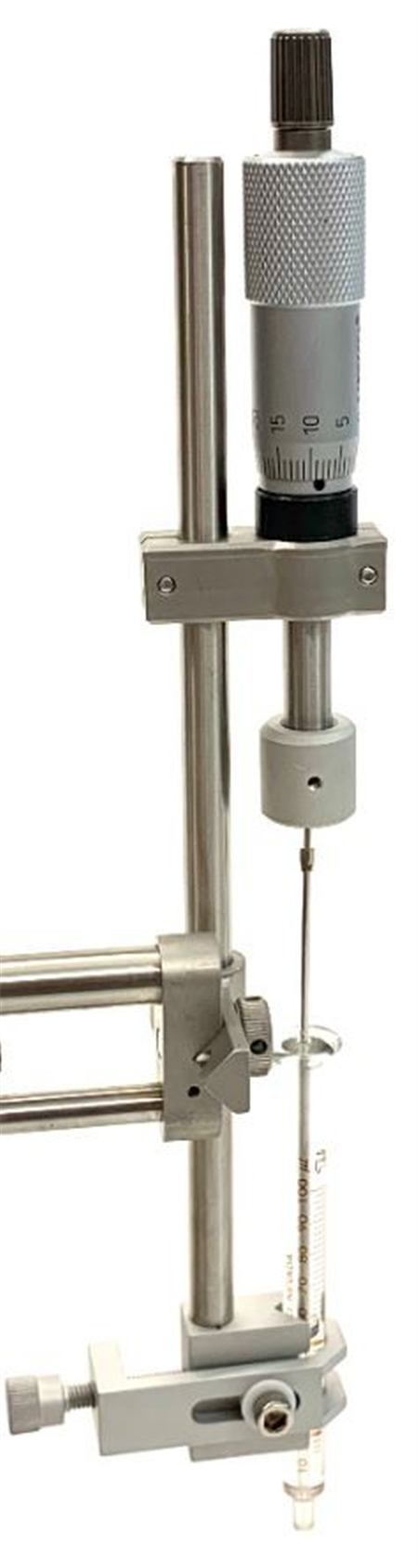

Manual Stereotaxic Injector provides an economical means of injecting/withdrawing a calibrated volume with simple, precise manual control.
