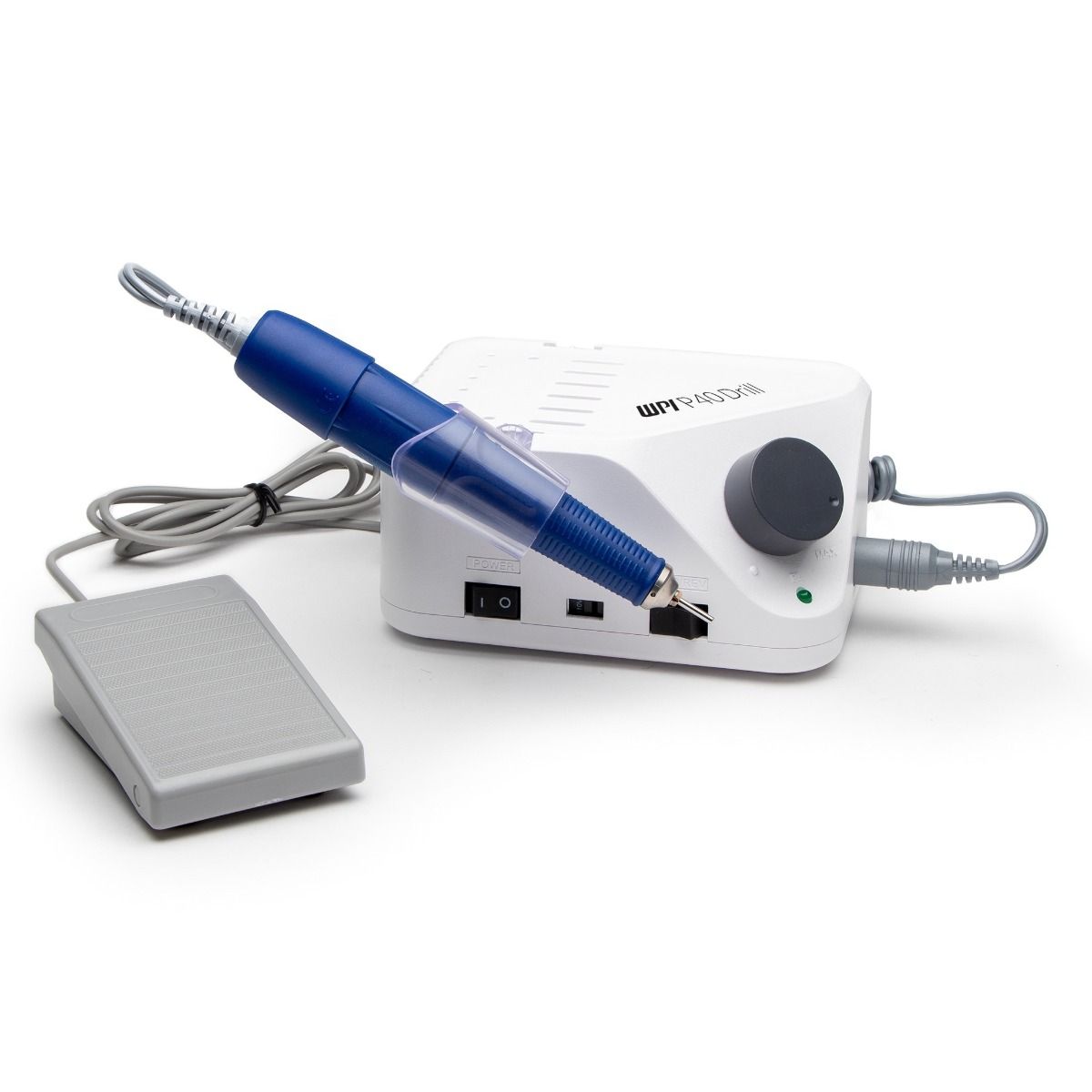

WPI P40 Micro Drill

WPI P40 microdrill is perfect for drilling, grinding, or finishing bone, teeth, and other materials. Its high torque motor runs extremely quietly, even at 40,000 RPM. The product includes a foot switch and is available in a kit version with the optional drill bit startup kit.

• High-torque, variable speed drill upto 40,000 rpm
• Excellent system for grinding, finishing, drilling bone and other material
• Handpiece holder allows for a solid grip on the handpiece
• Removable nose cone that can be cleaned and sterilized
• Consistent power for the duration of its use
• Switchable power supply from 110V to 220V

The WPI P40 mains powered microdrill will make easy work of grinding, finishing, cutting and drilling bone, teeth and other material. The high-torque 40,000 RPM (maximum) motor is quiet and has minimal vibration, which reduces wear on the motor and provides greater comfort for you. It also features a forward and reverse switch.  The “E Type” handpiece is ergonomically design for ease of use manually or on a stereotaxic application.  The handpiece has a removable nose cone that can be cleaned and sterilized. It accepts 3/32” and 2.35 mm diameter bur shanks. Unlike battery-powered drills, this unit maintains consistent power for the duration of use. The wide range of speeds allows you to control the amount of heat generation.

WPI P40 Drill Options

Order Code	Description

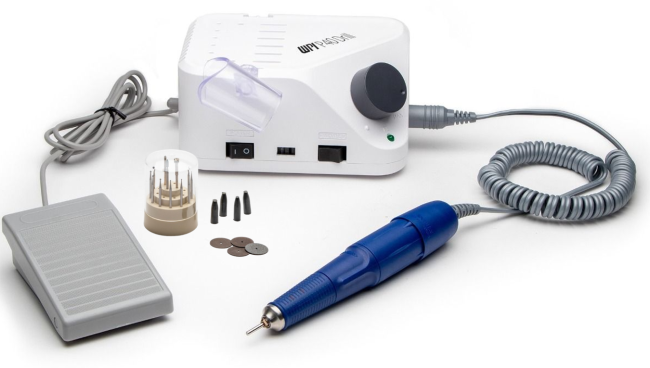

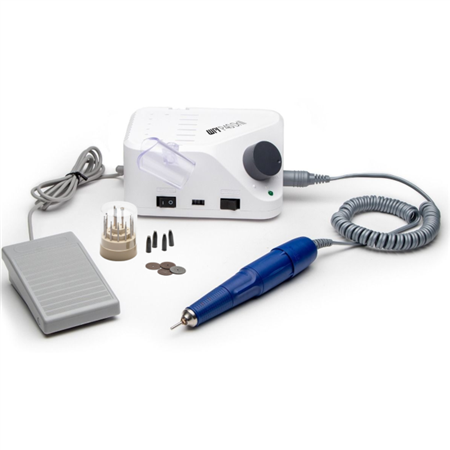

505635	WPI P40 Micro Drill System, with drill bit kit P40 Drill system includes P40 Drill Handpiece, Control Box, Footswitch, Nose Cone for handpiece and maintenance kit (collet chuck wrench, replacement carbon brushes and replacement fuse) Drill bit kit includes an accessory stand, abrading tips, carbide burs, disks and mandrels
505634	WPI P40 Micro Drill System, without drill bit kit (order burs and drill accessories separately) P40 Drill system includes P40 Drill Handpiece, Control Box, Footswitch, Nose Cone for handpiece and maintenance kit (collet chuck wrench, replacement carbon brushes and replacement fuse) Order drill bits and burs separately to complete the system



WPI P40 Drill Specification

Type	Description
Operating Speed	0-40,000 RPM
Collet / Bur Holder	Chuck Type for bur Φ3/32" (2.35 mm) Minimum fitting length of Bur 10 mm
Maximum Torque	3.0 N.cm
Footswitch	On/Off pedal with IP Rating IPX1
Power	110 VAC or 220 VAC switchable, 50/60 Hz
Dimensions	Base: 178 x 114 x 89 mm (7" x 4.5" x 3.5") Handpiece: 153 x Φ29 mm
Environmental Operating Conditions	Temperature: 10°C to 40°C Humidity: 30 to 75% Air pressure: 700 to 1060 hPa
Weight	1.7 kg (3.75 lbs.) Handpiece: 186 g (without cord)



WPI P40 Micro Drill System Instruction Manual



Accessories

The WPI P40 Micro Drill has a wide choice of compatible accessories

Order Code	Description
502237	Drill holder for stereotaxic frame (suitable for WPI stereotaxic frames as well as Stoelting and RWD frames)
503563	Micro Drill Kit includes an accessory stand, abrading tips, carbide burs, disks and mandrels
501850	Abrading Tip, Rubber, 5 per pack
501851	Abrading Tip, Stone, 5 per pack
501852	Accessory Stand For Drill Bits

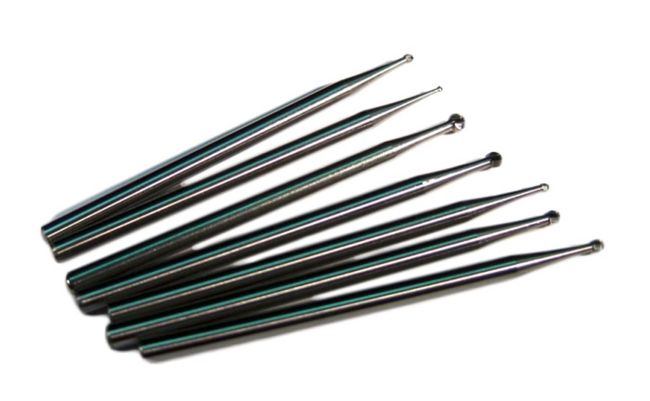

501860	Ball Mill, Carbide, Bur Drill Bit #1/4, 0.5 mm (0.019”) Diameter, 5 per pack
501861	Ball Mill, Carbide, Bur Drill Bit #1/2, 0.7 mm (0.027”) Diameter, 5 per pack
501853	Ball Mill, Carbide, Bur Drill Bit #1, 0.8 mm (0.031”) Diameter, 5 per pack
501854	Ball Mill, Carbide, Bur Drill Bit #2, 1.0 mm (0.039”) Diameter, 5 per pack
501855	Ball Mill, Carbide, Bur Drill Bit #3, 1.2 mm (0.047”) Diameter, 5 per pack
501856	Ball Mill, Carbide, Bur Drill Bit #4, 1.4 mm (0.055”) Diameter, 5 per pack
501857	Ball Mill, Carbide, Bur Drill Bit #5, 1.6 mm (0.063”) Diameter, 5 per pack
501858	Ball Mill, Carbide, Bur Drill Bit #6, 1.8 mm (0.071”) Diameter, 5 per pack
501842	Ball Mill, Carbide, Bur Drill Bit #7, 2.1 mm (0.083”) Diameter, 5 per pack
501862	Cutoff Disk, 20 per pack
501863	Mandrel, Screw, 5 per pack
501864	Mandrel, Threaded, 5 per pack

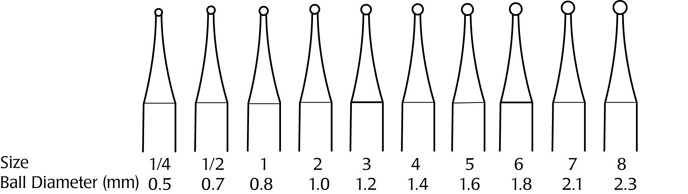

Ball Mill Bur Drill Sizes

---
