Stand-Alone Raturn System
The Raturn is a movement response caging system that is designed for use with tether-based applications in awake animals. Used as an alternative to a liquid swivel or commutator, the Raturn responds to animal movement to keep wires, tubing, fluid lines and cables from twisting.
The Raturn is a movement response caging system that is designed for use with tether-based applications in awake animals. Used as an alternative to a liquid swivel or commutator, the Raturn responds to animal movement to keep wires, tubing, fluid lines and cables from twisting.
- Reduce stress with less animal handing
- Eliminate swivels and commutators
- Combine multiple fluid or electrical lines
- Small size stand-alone option optimizes bench space
- Use with round, stackable or universal cages

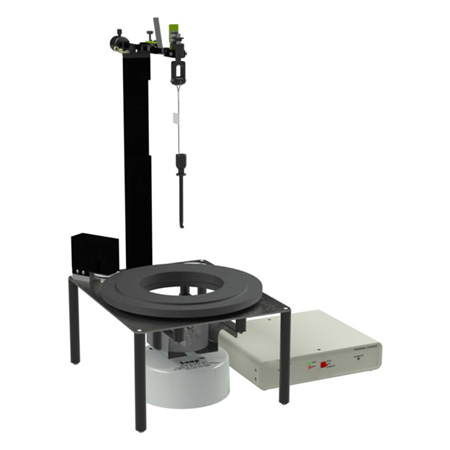

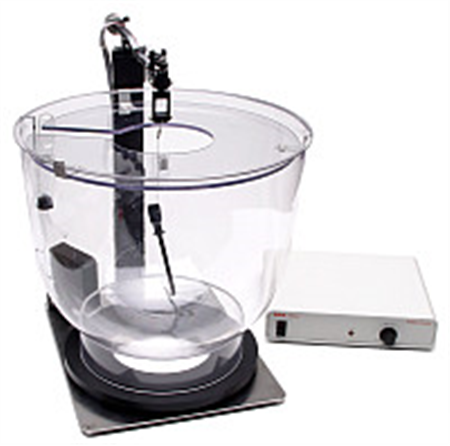

The Raturn consists of a turntable and drive mechanism connected to a control box. The rat or mouse is placed into a cage (sold separately) and tethered to a counterbalance arm. The animal can move up to 280° before activating the optical sensor, causing the cage to counter rotate to prevent twisting. The optional Raturn Activity Monitoring System easily integrates with the Raturn to observe changes in locomotor activity following treatments. Metabolic floor inserts also available for collection of metabolic waste products.
The Raturn systems are used in academic and pharmaceutical laboratories and CROs in a wide range of applications including:
- In vivo Microdialysis
- Blood Collection
- Optogenetics
- Infusion and Biosensor Implants
- Pressure Monitoring
- ECG
- Locomotor Activity Analysis
System Includes:
- Raturn Control box
- Base with Support Stand
- Turntable
- Balance arm w/rearing
- O-zone resistant o-rings for Raturn Motor (1 pack of 3)
| Part # | Descriptions |
| 505449 | Raturn - Microdialysis Stand-Alone System - Rat (110V/US plug) |
| 505450 | Raturn - Microdialysis Stand-Alone System - Rats (240V/Euro), please contact us to order. |
| 505454 | Raturn Microdialysis Stand-Alone System - Mouse (110V/US plug) |
| 505455 | Raturn - Mice - Microdialysis Stand-Alone System (240V/Euro), please contact us to order. |
| 505451 | Raturn Metabolic Stand-Alone System (110V/US plug) |
| 505452 | Raturn Metabolic Stand-Alone System (240V/Euro), please contact us to order. |
Choose your Balance arm/Tether based on species and cage type:
| Part # | Descriptions |
| 505476 | Raturn Balance Arm with Rat Tether |
| 505560 | Balance arm/Mouse Tether for Universal Cage |
| 505541 | Raturn - Sensor Assembly |
| 505528 | Culex/Raturn - Rat Collars |
Order Raturn compatible cages separately
Optional Parts:
| Part # | Descriptions |
| 505456 | Raturn Activity Monitor |
Optional parts for Metabolic Collections:
| Part # | Descriptions |
| 505557 | Elevated Legs for Stand-Alone Raturn |
| 505559 | Metabolic Accessory Holder |
Replacement parts:
| Part # | Descriptions |
| 505410 | Culex/Raturn Replacement sensor flag for tether arm |
| 505459 | Rat Tether with mounting bracket |
| 505409 | Culex/Raturn - Mouse tether for use with dual-species cage |
| 505460 | Culex/Raturn - Tether line w/mounting bracket |
| 505528 | Culex/Raturn - Rat Collars |
505409
Culex/Raturn - Mouse tether for use with dual-species cage
505410
Culex/Raturn Replacement sensor flag for tether arm
505411
Culex/Raturn Waste Vial
- Vial is for “W” position on fraction collector and is not to be used in numbered positions for sample collection
- Includes 1 x vial and 1 x cap
505412
Metabolic Mouse Cage with Mesh Floor (cage only)
505413
Culex/Raturn Stackable Polycarbonate Cage
- Cage washer-safe polycarbonate
- Easy-access side door facilitates animal dosing
- Easy lift-off access panel “pins” onto the cage
- For blood collection, microdialysis, and other studies
- Fits all Raturn systems, including Rodent Workstation four Animal Station Cart
- Stacks for easy storage
- Cage Dimensions: height 13in (~33cm), diameter of cage floor (estimated with bedding) 10.75in (~27cm), door opening 9.5in (~24cm)
- Lid sold eparately (item 505553)
505416
Culex/Raturn Stackable Polycarbonate Cage Kit
- Includes Raturn cage (item 505413), lid (item 505553) and externally mounted water tube (item 50432)
- Stacks for easy storage
- Cage washer-safe polycarbonate
- Easy-access side door facilitates animal dosing
- Easy lift-off access panel “pins” onto the cage
- For blood collection, microdialysis and other studies
- Fits all Raturn systems, including Rodent Workstation four Animal Station Cart
- Cage Dimensions: height 13in (~33cm), diameter of cage floor (estimated with bedding) 10.75in (~27cm), door opening 9.5in (~24cm)
505417
Chads for Small Vials - Multi-Color Pack
Includes one each of: Green, Blue, Grey, Pink, White, Yellow & Salmon
Small Chads can be used on, for example (not limited to):
- 300 μL borosilicate glass vial, 6 mm OD
- 250 μL plastic vial, 6 mm OD
505418
Chads for Small Vials - Grey
192 chads oer sheet; 10 sheets per pack
Small Chads can be used on, for example (not limited to):
- 300 μL borosilicate glass vial, 6 mm OD
- 250 μL plastic vial, 6 mm OD
505419
Chads for Small Vials - Blue
192 chads oer sheet; 10 sheets per pack
Small Chads can be used on, for example (not limited to):
- 300 μL borosilicate glass vial, 6 mm OD
- 250 μL plastic vial, 6 mm OD
505420
Chads for Small Vials - Green
192 chads oer sheet; 10 sheets per pack
Small Chads can be used on, for example (not limited to):
- 300 μL borosilicate glass vial, 6 mm OD
- 250 μL plastic vial, 6 mm OD
505421
Chads for Small Vials - Pink
192 chads oer sheet; 10 sheets per pack
Small Chads can be used on, for example (not limited to):
- 300 μL borosilicate glass vial, 6 mm OD
- 250 μL plastic vial, 6 mm OD
505422
Chads for Small Vials - Salmon
192 chads oer sheet; 10 sheets per pack
Small Chads can be used on, for example (not limited to):
- 300 μL borosilicate glass vial, 6 mm OD
- 250 μL plastic vial, 6 mm OD
505423
Chads for Small Vials - Violet
192 chads oer sheet; 10 sheets per pack
Small Chads can be used on, for example (not limited to):
- 300 μL borosilicate glass vial, 6 mm OD
- 250 μL plastic vial, 6 mm OD
505424
Chads for Small Vials - White
192 chads oer sheet; 10 sheets per pack
Small Chads can be used on, for example (not limited to):
- 300 μL borosilicate glass vial, 6 mm OD
- 250 μL plastic vial, 6 mm OD
505425
Chads for Small Vials - Yellow
192 chads oer sheet; 10 sheets per pack
Small Chads can be used on, for example (not limited to):
- 300 μL borosilicate glass vial, 6 mm OD
- 250 μL plastic vial, 6 mm OD
505426
Chad Rack for Small Culex Vials with 8 Sheets of Chads
- Chad rack includes 8 sheets of chads (one of each colour)
505427
Chad rack for small Culex vials
505428
Chads for Large Vials - Blue
- 96 per sheet, 2 numbered sets
Large Chads can be used on, for example (not limited to):
- No. 2 Kimax centrifuge tube, 10.5 mm OD
- 1 cc BD disposable luerlok syringe, 9.5 mm OD
- 3 cc BD disposable luerlok syringe, 10.5 mm OD
- BD vacutainer, 10.2 mm OD
- Pipette tip, 10.0 mm OD
- 1.5 mL Eppendorf centrifuge tube, 10.5 mm OD
- 2.0 mL Eppendorf centrifuge tube, 10.8 mm OD
505429
Chads for Large Vials - White
- 96 per sheet, 2 numbered sets
Large Chads can be used on, for example (not limited to):
- No. 2 Kimax centrifuge tube, 10.5 mm OD
- 1 cc BD disposable luerlok syringe, 9.5 mm OD
- 3 cc BD disposable luerlok syringe, 10.5 mm OD
- BD vacutainer, 10.2 mm OD
- Pipette tip, 10.0 mm OD
- 1.5 mL Eppendorf centrifuge tube, 10.5 mm OD
- 2.0 mL Eppendorf centrifuge tube, 10.8 mm OD
505430
Chad Rack for Eppendorf Vials with 10 Sheets of Chads
- Complete Chad rack for Eppendorf vials
- Includes 10 sheets of chads (5 blue and 5 white; each colour numbered 1 through 480)
505432
Rat water bottle
- Polycarbonate
- Includes stainless steel sipper
- Cage Wash Compatible
Use with Universal Cage, Stackable Cage, Round Bottom Bowl Cage with Access Panel & Dual Species Cage
505433
Mouse Water Bottle
- Autoclavable
- Polycarbonate
- Includes stainless steel sipper
505449
Raturn - Microdialysis Stand-Alone System - Rat (110V/US plug)
505450
Raturn - Microdialysis Stand-Alone System - Rats (240V/Euro)
505451
Raturn Metabolic Stand-Alone System (110V/US plug)
505452
Raturn Metabolic Stand-Alone System (240V/Euro)
505454
Raturn Microdialysis Stand-Alone System - Mouse (110V/US plug)
505456
Raturn Activity Monitor
505459
Rat Tether with mounting bracket
505460
Culex/Raturn - Tether line w/mounting bracket
505476
Raturn Balance Arm with Rat Tether
505528
Culex/Raturn - Rat Collars
505541
Raturn - Sensor Assembly

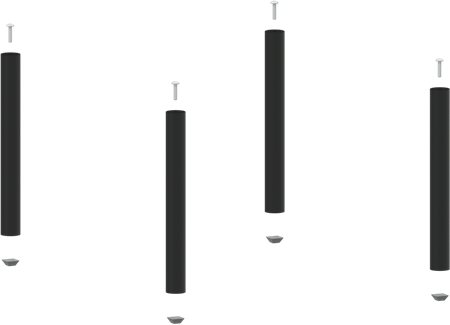

505557
Elevated Legs for Stand-Alone Raturn
505559
Metabolic Accessory Holder
_1518634015.png)
505560
Balance arm/Mouse Tether for Universal Cage
