Bee Syringe Drive

Options

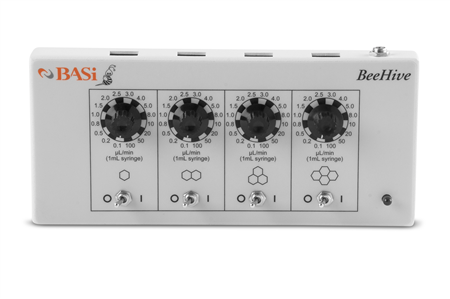

Bee Hive Controller

• Equivalent to four Worker Bee Controllers in a single component.
• Control up to four Bee Syringe Drives at independent and discretely variable flow rates.
• Packaged with 4 connecting cables of varying lengths to promote flexibility (3ft, 6ft, 8ft, and 10ft).
• Utilizing 10’ (3 meter) cables, the syringe pump drive can be positioned up to that far from the Controller.

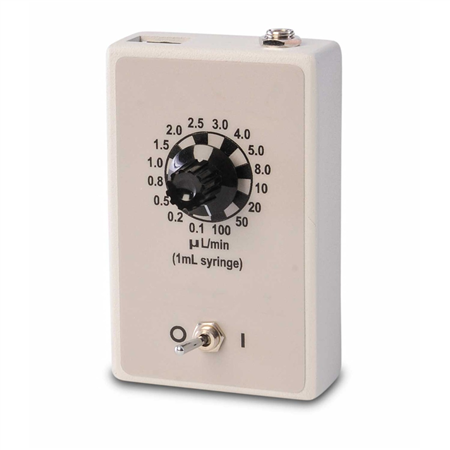

Syringe Drive Controllers: requires Bee Syringe Drive

• The compact Worker Bee Controller connects to a single Bee Syringe Drive by a cable, and offers switch-selectable flow rates ranging from 0.1 µL/min to 100 µL/min (based on a one mL syringe).
• 16-step speed selection includes settings of 0.1, 0.2, 0.5, 0.8 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 8, 10, 20, 50 and 100 µL/min (based on a one mL syringe).
• Flow rates calibrated to 60 mm calibration length syringes, but alternative syringes can be easily substituted.
• Ideal for labs needing an easy-to-use one syringe (or three syringe (see MD-1002) pump.

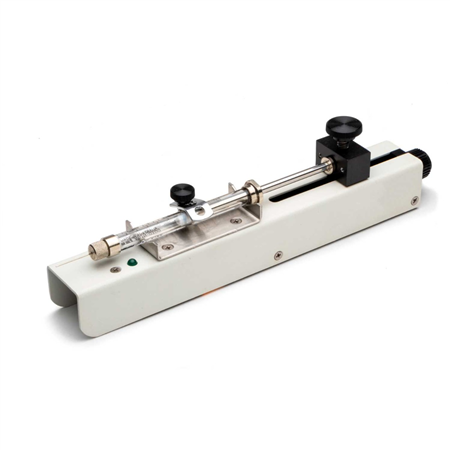

Syringe Drive: requires one of the Syringe Drive Controllers

• Syringe Pumps are modular systems that consist of a syringe drive and a drive controller.
• Compact syringe pump drive (3cm x 23cm) is deal for limited space applications.
• Reliably delivers flow rates ranging from 0.001 to 500 µL/min utilizing 10 µL to 5.0 mL syringes.
• A stepper motor and precise lead screw provide smooth, constant flow from start to finish.
• Automatic shut-off feature protects both the drive mechanism and syringes.

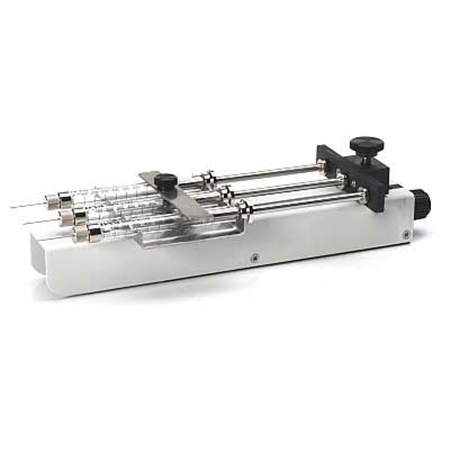

• Can hold up to three syringes when used with the optional bracket (505438).
• The syringe pump drive is separate from the controller to provide flexibility. Controller choices include a single connection to the Worker Controller  or the Hive Controller which controls up to four syringe pump drives.
• When used with the Hive controller, the syringe drive can be positioned up to 10' (3.0 meters) from the Controller.
• If desired, the syringe pump drive may be mounted on a variety of surfaces via the magnetic base or keyhole slot on the bottom.
• Different lenght cables from controller to syringe drive avaialbe. Inquire upon placing order.
