Von Frey Testing

WPI's Electronic von Frey Anesthesiometer is used to measure sensory thresholds in test subjects with amazing accuracy and ease.

The Electronic von Frey Anesthesiometer was developed to assess mechanical allodynia, which is a painful response to a light touch or pressure from a stimulus that is not normally painful.

The pain sensitivity of a person or animal is important to know when delving into related life science research like pain research, neuropathy assessment, and the testing for analgesic drug discovery. Having the necessary equipment to get the most accurate results possible is critical. Electronic von Frey aesthesiometers, also called electronic von Frey analgesiometers, assess mechanical allodynia, which is a painful response to a light touch or pressure from a stimulus that is not normally painful or hyperalgesia, which is increased pain sensitivity. With a series of rigid tips and flexible von Frey hairs, you can test the pain receptors in the skin. Electronic von Frey apparatuses make gauging subject comfort a simple process, allowing you to get more out of your research in less time.

Benefits & Features

Plug up to three probes into a single unit
Independent from temperature
Independent from Hygroscopy
LCD readout (Floating or last maximum/minimum)
90 g, 800 g or 1000 g probe with rigid tips
Supertips™ - 15 sizes covering the range from 0.1 g to 65 g
Optional analogue output cable for chart recorder
Optional MRI probes available (contact customer service for details)

WPI's electronic von Frey meter enables researchers to plug up to three probes into a single unit. To test pain and sensory thresholds it is supplied with either a 90 g, 800 g or 1000 g probe and rigid tips. Options include a set of 15 different flexible von Frey hairs called “SuperTips™”. Each hair, regardless of model chosen, is exactly 0.8 mm in diameter. This uniformity of design eliminates false readings and allows for comparison of test results. The Electronic von Frey can be used with chart recorders and analogue/digital converters. Mesh stands are available in a variety of sizes for large group studies.

Options

Order Code	Description

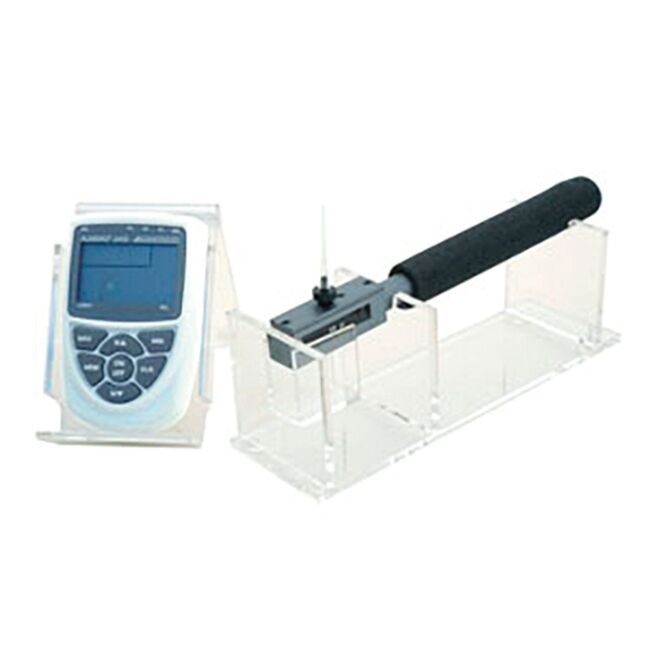

II-2390	Electronic Von Frey Anesthesiometer, Rigid Tips, 90 g Range
II-2391	Electronic Von Frey Anesthesiometer, Rigid Tips, 800 g Range
II-2392	Electronic Von Frey Anesthesiometer, Rigid & 15 Supertips, 90 g
II-2393	Electronic Von Frey Anesthesiometer, Rigid & 15 Supertips, 800 g
II-23931	Electronic Von Frey Anesthesiometer, Rigid Tips, 1000 g
II-2888	Trio 3-in-1 Analgesia System (Electronic von Frey, Plethysmometer and Randall Selitto Meter)
II-2889	Quattro 4-in-1 Analgesia System (Electronic von Frey, Plethysmometer, Randall Selitto and the Grip Strength Meter)
II-2890	Penta 5-in-1 Analgesia System (Electronic von Frey, Plethysmometer, Randall Selitto, Grip Strength and Rodent Pincher Meter)

Accessories

Order Code	Description

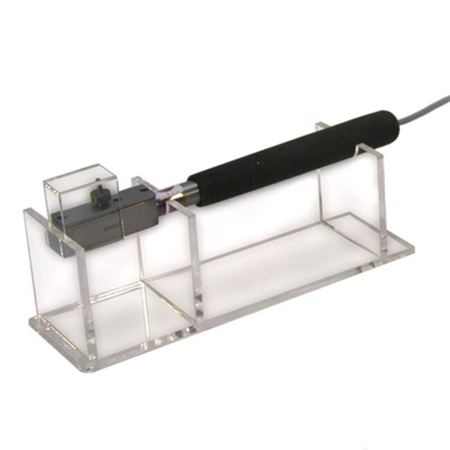

II-2394	Von Frey Probe, 90 g range (probe only)
II-2395	Von Frey Probe, 800 g range (probe only)
II-2396	Von Frey Probe, 1000 g range (probe only)
II-2397	MRI Option For Von Fey Probe (must be added at time of ordering the probe)

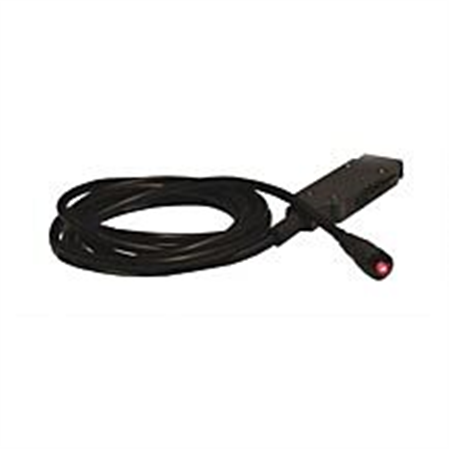

II-2400	Analogue Output Cable for von Frey

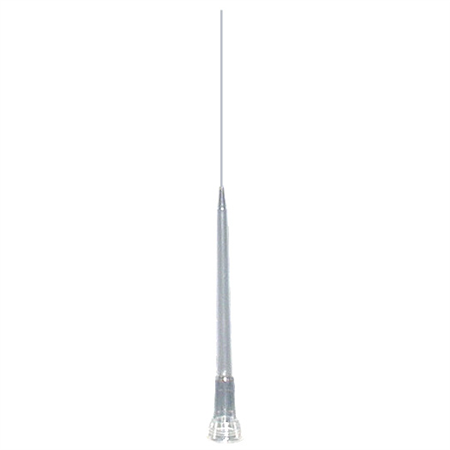

II-115VFHS	Complete set of 15 von Frey hairs with Supertips

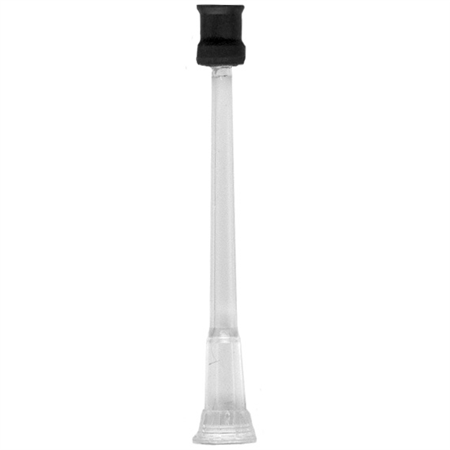

II-110BT	Blunt Tips For Von Frey Probe 10/pk

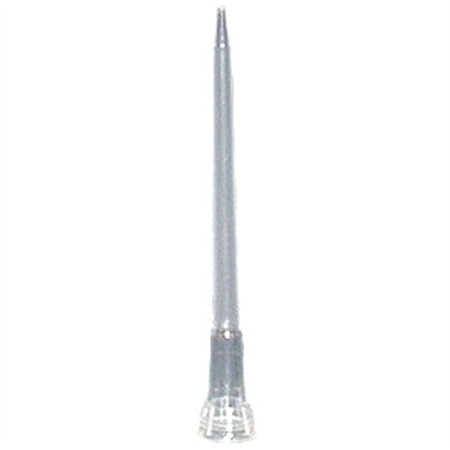

II-110RT	Rigid Tips For Von Frey Probe 90 g or 800 g 10/pk
II-110RT1	Rigid Tips For Von Frey Probe 1000 g 10/pk
II-120SFH	Semi-Flexible von Frey hair 10/pk
