Anaesthesia
EZ Anesthesia is the system of choice for anesthetizing small animals where it comes with a variety of choices. Seclect from the following four systems:

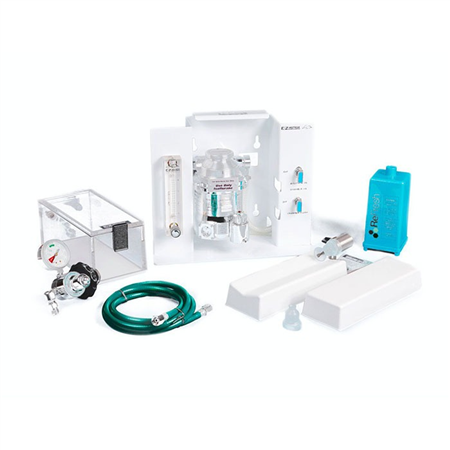

- EZ-SA800 Single Animal System offers an economical choice for single animal treatment. Includes a TEC 3 Isoflurane Key Filled Vaporizer; splitter output to supply either an induction chamber or a breather

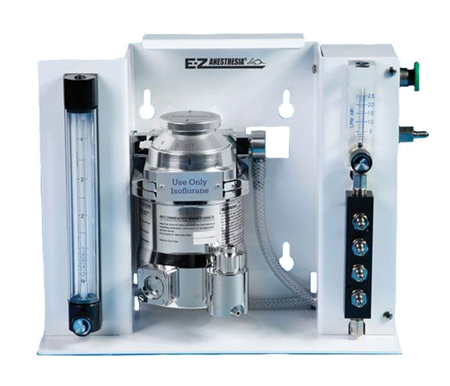

- EZ-7000 Classic Small Animal Anesthesia System incorporates a TEC 3 Isoflurane Key Filled Vaporizer and a manual five output manifold for supply to an induction chamber and up to four breathers
- EZ-AF9000 Auto Flow Anesthesia System features an automatic five output manifold that does not require flowmeters and provides consistent, precise gas flow to each of the five outlets
- EZ-AD5000-F (supplied with flat bed) and EZ-AD5000-V (supplied with V-shaped bed) Digital Anesthesia System with a user friendly touch screen control including real time flow rate monitoring to each of the three outputs
The safety of laboratory personnel is of primary importance. So, WPI's anesthesia systems all come with a patented valve that mitigates the gas flow to the snugly-fitted nosecone. A highly sensitive valve regulated by the animal’s breathing works with the nosecone to ensure non-rebreathing efficiency and allow safe anesthesia for up to 12 hours.
Animals to be anesthetized are placed in the acrylic induction chamber and the system delivers a precisely blended mixture of oxygen and isoflurane. An activated charcoal air filter canister at the top of the chamber releases safe, filtered air back into the room. Optionally a water-heated cage warmer or warming plate is used to retain the animal body temperature while in the induction chamber. After the initial anesthetizing, the animal can be moved to the heated surgical water bed and positioned properly in the snugly fitted nosecone. A highly sensitive valve regulated by the animal’s breathing works with the nosecone to ensure non-rebreathing efficiency, and allow safe anesthesia for up to several hours. The breathing device also includes an air filter that releases safe, filtered air back into the room.
Isofluorane Anesthesia Masks
These rodent gas masks fits mice and rats of all sizes, and they are versatile for a...
Induction Chambers
Initial anesthesia is performed in the induction chamber before animals are moved to...
EZ-AF9000
Auto Flow Anesthesia System - the autoflow anesthesia system offers highly efficient...
EZ-7000
Classic Small Animal Anesthesia System incorporates a TEC 3 Isoflurane Key Fill...
Nuvo5 Oxygen Concentrator
Affordable oxygen concentrator is efficient and easy to use with our anesthesia syst...

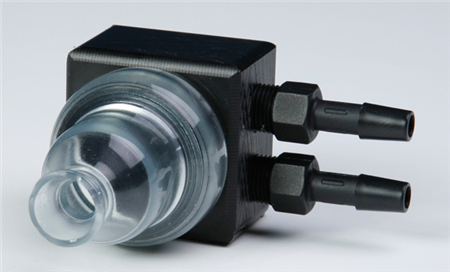

EZ-10901-1
Integrated Imaging Single Breather Block
- Accommodates animals weighing up to 500 grams.
- Breather blocks can be permanently integrated into a wide range of imaging systems
- Low profile, all plastic construction breathers utilize threaded mounting holes
- Tight-fitting nosecone eliminates gas leakage and protects personnel from gas exposure
- Threaded mount

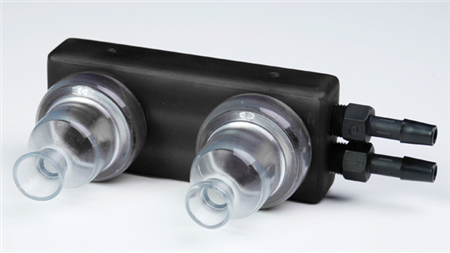

EZ-10901-2
Integrated Imaging Double Breather Block is designed for use with MRI, X-ray, and other imaging equipment.
- Accommodates animals weighing up to 500 grams.
- Breather blocks can be permanently integrated into a wide range of imaging systems
- Low profile, all plastic construction breathers utilize threaded mounting holes
- Tight-fitting nosecone eliminates gas leakage and protects personnel from gas exposure

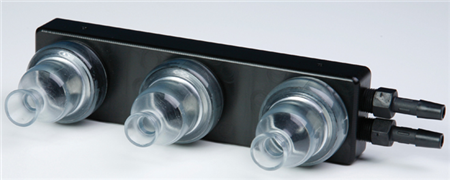

EZ-10901-3
Integrated Imaging Triple Breather Block is designed for use with MRI, X-ray, and other imaging equipment.
- Accommodates animals weighing up to 500 grams.
- Breather blocks can be permanently integrated into a wide range of imaging systems
- Low profile, all plastic construction breathers utilize threaded mounting holes
- Tight-fitting nosecone eliminates gas leakage and protects personnel from gas exposure
- Threaded mount

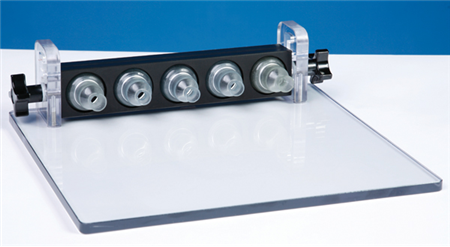

EZ-109
Multi-Animal Breather is designed for use with MRI, X-ray, and other imaging equipment.
- For use with EZ Anesthesia Systems
- Up to five mice or three rats
- All ports operate in a level plane of anesthesia
- Single gas line supplies multiple outputs
- Exhaust runts to a charcoal filter for safety
EZ-109 Breather Includes:
- EZ-110 (5) Mouse Nosecones
- EZ-112 (3) Rat Nosecone
- EZ-251 Tabletop Filter Stand

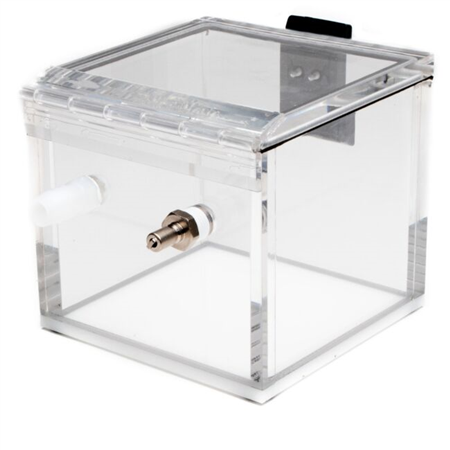

EZ-177
Sure-Seal Mouse Induction Chamber
For use when home cage is unavailable. The EZ-177 Sure-Seal Mouse Chamber is constructed of heavy-duty, clear acrylic plastic with a non-skid bottom and simple locking, snap latch top.
Dimensions: 4" L x 4" W x 4" H (10 x 10 x 10 cm)
- For use with EZ-Anesthesia
- Seal gasket ensures no gas leakage
- Gas exhaust outlet port connects to charcoal filter
- Heavy-duty, acrylic
EZ-178
Sure-Seal Mouse/Rat Induction Chamber
For use when home cage is unavailable. The EZ-178 Sure-Seal Mouse/Rat Chamber is constructed of heavy-duty, clear acrylic plastic with a non-skid bottom and simple locking, snap latch top.
Dimensions: 9" L x 4" W x 4" H (23 x 10 x 10 cm)
- For use with EZ-Anesthesia
- Seal gasket ensures no gas leakage
- Gas exhaust outlet port connects to charcoal filter
- Heavy-duty, acrylic

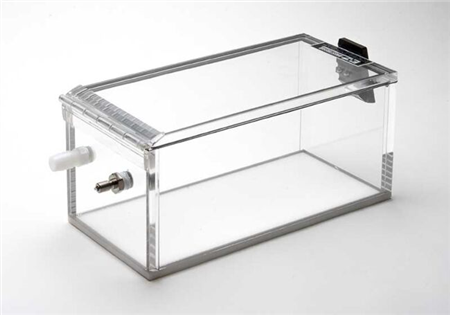

EZ-1785
Sure-Seal Large Mouse/Rat Induction Chamber
For use when home cage is unavailable. The EZ-1785 Sure-Seal Large Mouse/Rat Chamber is constructed of heavy-duty, clear acrylic plastic with a non-skid bottom and simple snap latch top.
Dimensions: 11.25" L x 7" W x 6" H (ca. 28.6 x 17.8 x 15.2 cm)
- For use with EZ-Anesthesia
- Seal gasket ensures no gas leakage
- Gas exhaust outlet port connects to charcoal filter
- Heavy-duty, acrylic
EZ-179
Sure-Seal Guinea Pig/Rabbit Induction Chamber
For use when home cage is unavailable. The EZ-179 Sure-Seal Guinea Pig/Rabbit Chamber is constructed of heavy-duty, clear acrylic plastic with a non-skid bottom and simple locking, snap latch top.
Dimensions 18" L x 12" W x 12" H ( 45.7 x 30.5 x 30.5 cm)
- For use with EZ-Anesthesia
- Seal gasket ensures no gas leakage
- Gas exhaust outlet port connects to charcoal filter
- Heavy-duty, acrylic

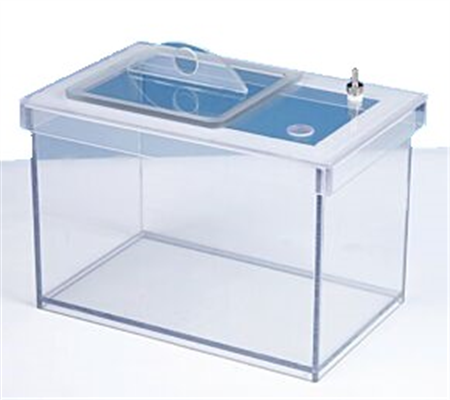

EZ-161A
High Volume Non-Gasketed Induction Chamber accommodates up to 16 mice or 4 medium rats
Dimensions 11.5" L x 7.5" W x 8" H ( 29.2 x 19.1 x 20.3 cm)
- Designed for use under fume hood or biosafety cabinet
- High Volume Chamber accommodates up to 16 mice or 4 medium rats
- Constructed of heavy-duty, polycarbonate plastic
- Compatible with a wide range of disinfectants and frequent sterilization cycles

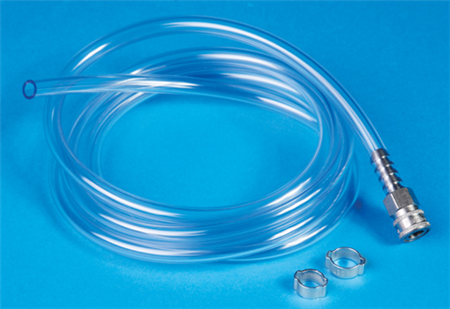

EZ-1130
Anesthesia Connection Kit. This kit is required for integrating third party equipment into an EZ Ansthesia system. It includes EZ-2SF Female Quick Disconnect with 6 ft of 0.25" ID clear PVC tubing with clamps.

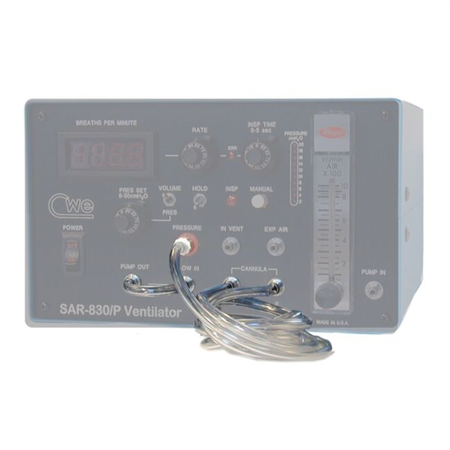

EZ-830
EZ-830 Ventilator Connection Kit. Includes tubing and fittings to connect the EZ-SAR830/AP Ventilator to any E-Z Anaesthesia system and to a charcoal filter canister.
EZ-260N
Chamber Connection Hose. 5' of 0.25" ID hose for connecting anesthesia output to the induction chambers.

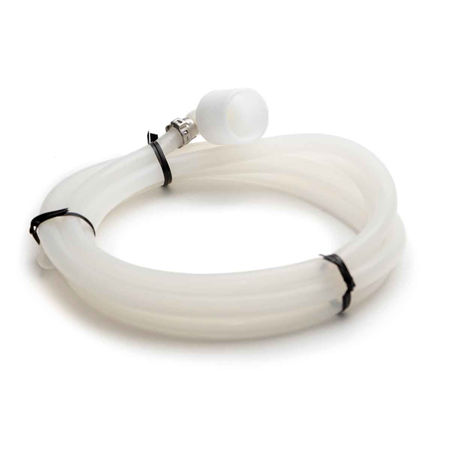

EZ-251A
Filter Connection Kit. 5 feet of ¼” ID hose with connectors and clamps for connection to charcoal filter canister.

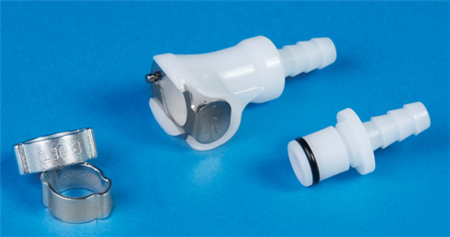

EZ-200-2
Waterpump Conversion Kit. Set of male and female quick disconnects and clamps to convert standard water heating pump for use with EZ Anesthesia water-heated surgical beds.

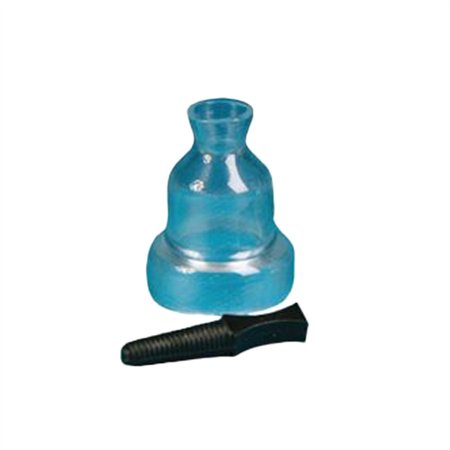

EZ-110
Mouse Nosecone. E-Z Anaesthesia nosecones are custom-designed for small animals, ensuring a tight fit and minimal dead space. They are available in three sizes to fit mice, rats and rabbits. Nosecones include rubber plugs to close off gas supply when not in use. Nosecone plugs are also available separately (EZ-119).

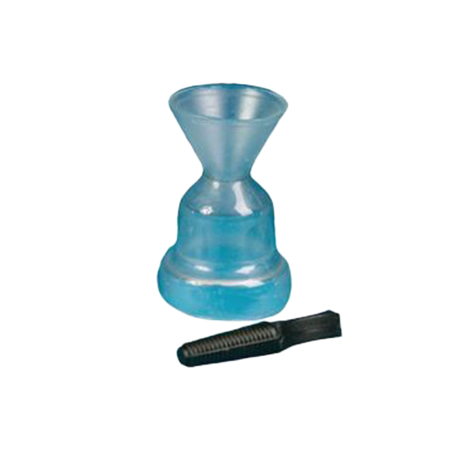

EZ-112
Rat Nosecone. E-Z Anaesthesia nosecones are custom-designed for small animals, ensuring a tight fit and minimal dead space. They are available in three sizes to fit mice, rats and rabbits. Nosecones include rubber plugs to close off gas supply when not in use. Nosecone plugs are also available separately (EZ-119).

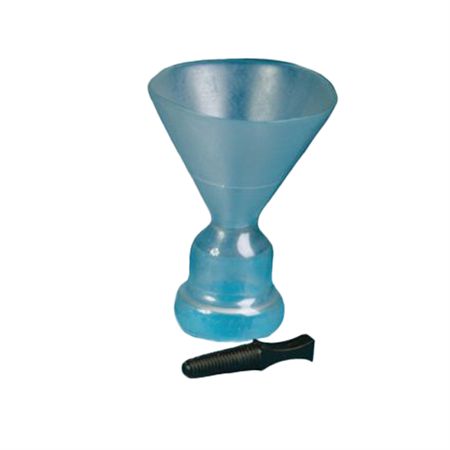

EZ-115
Rabbit / Guinea Pig noscone. E-Z Anaesthesia nosecones are custom-designed for small animals, ensuring a tight fit and minimal dead space. They are available in three sizes to fit mice, rats and rabbits. Nosecones include rubber plugs to close off gas supply when not in use. Nosecone plugs are also available separately (EZ-119).

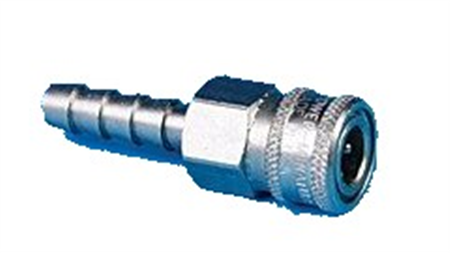

EZ-S2F
Female Quick Disconnect with ¼” hose barb

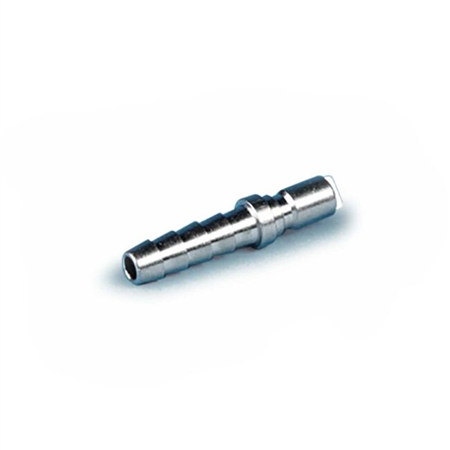

EZ-S2M
Male Quick Disconnect with ¼” hose barb

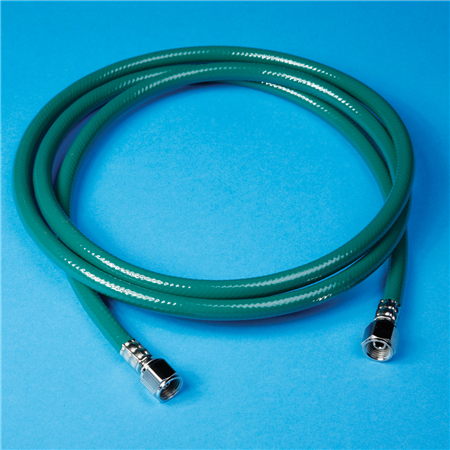

EZ-15021 Oxygen Hose
Standard 6′ hose connection from the oxygen regulator to the E-Z Anesthesia system. Female DISS fittings are attached to both ends of the green hose.
.png)

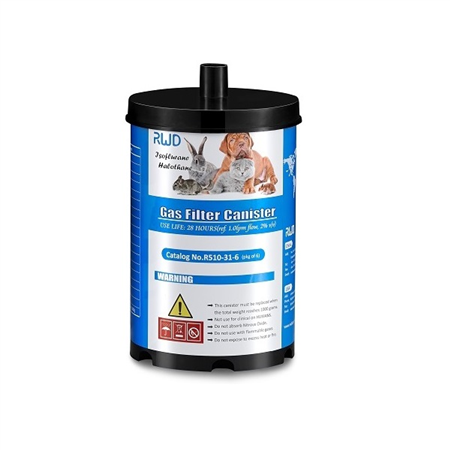

R510-31-6
Gas Filter Canister, Large, Package of 6pcs
Self Weight: 800 g
Effective absorption: 200g
.png)
R510-31S-6
Gas Filter Canister, Small, pkg of 6pcs
Self Weight: 250g
Effective absorption: 50g
R546Pro
Gas Evacuation Apparatus designed to safely and actively remove waste gas associated...
