FORT25
Force Transducer 25g- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 1 images available to view - click to enlarge and scroll through the product gallery.
FORT25 Instruction Manual
/ Download as PDF
- 25g force transducer
- Broad dynamic measurement range
- Very high sensitivity
Details
Features

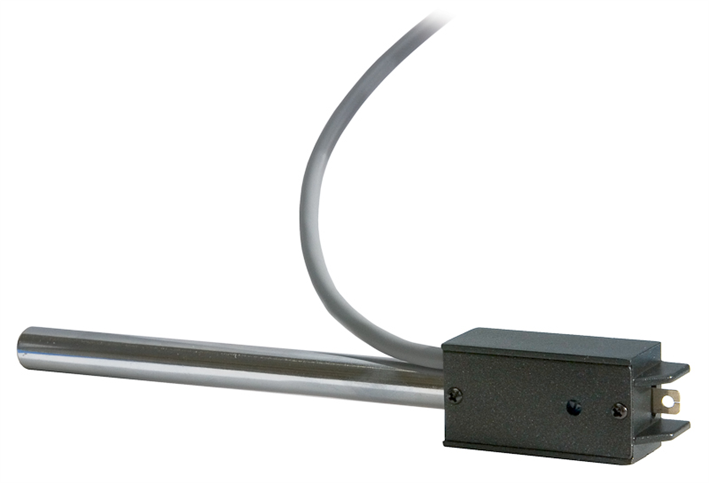

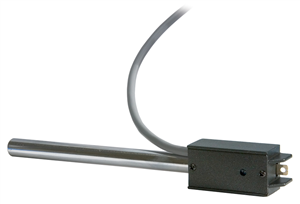

This 25-gram force transducer is a reliable tool for high precision force measurement. Using balanced semiconductor strain gauges, FORT25 produces linear output voltage vs. applied force input with very little deflection. The rigid lever force transducer transforms the applied force into a proportional voltage. It is a temperature-compensated full-bridge configuration with four high sensitivity semiconductor strain gauges. FORT25 has a broad dynamic measuring range and a very high sensitivity.
Details
The transducer is highly resistant to mechanical damage; its body is machined from aluminum and mounts to a standard ring stand or, with the handle removed, clamp mounts. The cable that connects the FORT10-100 to the recording amplifier is detachable, allowing for multiple cables to be configured for the user’s choice of amplifiers.
How to use
Clamp the handle of the FORT25 transducer in a horizontal position and apply the forces to be measured to a rivet or hook mounted in the hole at the end of the flat sensing leaf.
Specifications
| Force Range, full scale | 0-25g |
| Output Sensitivity | 3mv/g@10V, 300μV/volt/g, nominal |
| INPUT & OUTPUT Resistance | 1500MΩ |
| Resolution | < 2mg |
| Resonant Frequency | 450 Hz |
| Linearity Error | < 0.2% of full scale |
| Maximum Operating Voltage | 10VDC (-5V ~ +5V or 0 ~ 10V) |
| MAXIMUM APPLIED FORCE | 2x rated full scale force |
| DRIFT | < 50mg/hr |
| DIMENSIONS |
40 x 22 x 19mm |
| Weight | 100g |
