FORT1000
Force Transducer 1000g
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 1 images available to view - click to enlarge and scroll through the product gallery.
Force Transducer Instruction Manual
/ Download as PDF
Details
Features

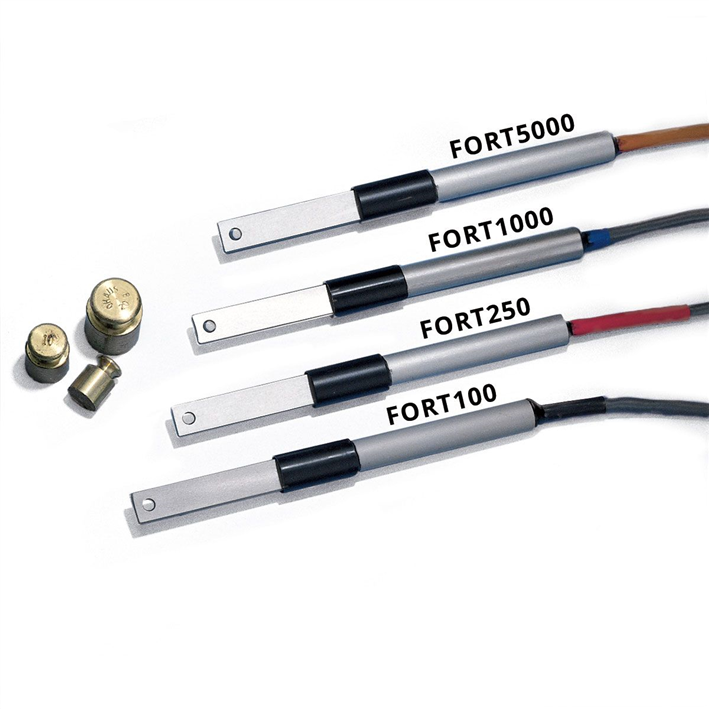

This rigid-lever force transducer transforms applied force into proportional voltage. Using balanced strain gauges, FORT transducers produce linear output voltage vs. applied force input with very little deflection. To use, clamp the handle of the FORT transducer in a horizontal position and apply the forces to be measured to a rivet or hook mounted in the hole at the end of the flat sensing leaf.
Details
The transducer is highly resistant to mechanical damage; its body is machined from aluminum and mounts to a standard ring stand or, with the handle removed, clamp mounts.
How to use
Clamp the handle of the FORT1000 transducer in a horizontal position and apply the forces to be measured to a rivet or hook mounted in the hole at the end of the flat sensing leaf.
Specifications
| Force Range, full scale | 1000g |
| Output Sensitivity (+/- 10%) | 0.84 µv/V/g |
| INPUT & OUTPUT Resistance | 350Ω |
| Resolution | 0.01% of full scale force |
| Resonant Frequency | 300 Hz |
| Linearity Error | < 0.1% of full scale |
| Maximum Operating Voltage | 10V AC or DC |
| MAXIMUM APPLIED FORCE | 3x rated full scale force |
| DRIFT | thermally compensated |
| DIMENSIONS |
0.3 inch diam. x 4 inch 7.6 mm diam. x 10.16 cm |
| Weight (excluding cable) | 0.3 oz (8g) |
