FORT100

FORT100

Force Transducer 100g



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

Force Transducer

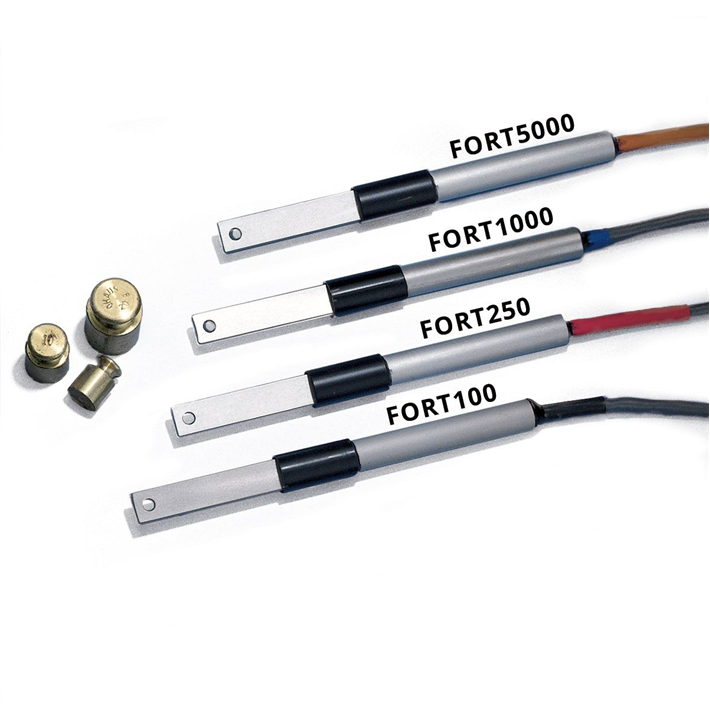

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Force Transducer Instruction Manual
/ Download as PDF

Details

Features

This rigid-lever force transducer transforms applied force into proportional voltage. Using balanced strain gauges, FORT transducers produce linear output voltage vs. applied force input with very little deflection. To use, clamp the handle of the FORT transducer in a horizontal position and apply the forces to be measured to a rivet or hook mounted in the hole at the end of the flat sensing leaf.

Details

The transducer is highly resistant to mechanical damage; its body is machined from aluminum and mounts to a standard ring stand or, with the handle removed, clamp mounts.

How to use

Clamp the handle of the FORT100 transducer in a horizontal position and apply the forces to be measured to a rivet or hook mounted in the hole at the end of the flat sensing leaf.

Specifications

Force Range, full scale  100g
Output Sensitivity (+/- 10%) 7µv/V/g
INPUT & OUTPUT Resistance 350Ω
Resolution 0.01% of full scale force
Resonant Frequency 300 Hz
Linearity Error < 0.1% of full scale
Maximum Operating Voltage 10V AC or DC
MAXIMUM APPLIED FORCE 3x rated full scale force
DRIFT  thermally compensated
DIMENSIONS

0.3 inch diam. x 4 inch

7.6 mm diam. x 10.16 cm

Weight (excluding cable) 0.3 oz (8g)
