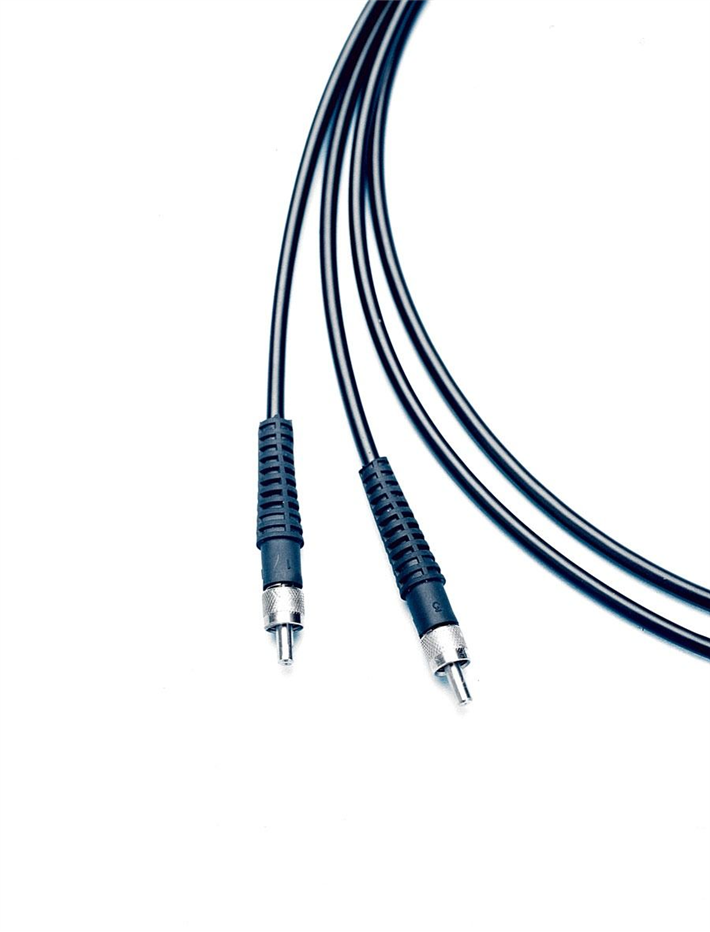

FO-200AS-SMA
Fiber Optic Cable 1m, SMA, 200 um core, Anti-Solarization
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 1 images available to view - click to enlarge and scroll through the product gallery.
- Broad UV/Vis spectral range
- Laser damage resistant
- High core to clad ratios
- Broad temperature range
- Bio-compatible materials & Radiation resistant
Details
Properties
Multimode • Pure silica core • Numerical aperture: 0.22 ± 0.02 (standard)
Standard prooftest: 70 kpsi • Minimum bend radius: 100x clad radius (momentary), 600x clad radius (long term)
Features
Higher transmission than PCS between 180nm and 300nm
Sterilizable by ETO and gamma radiation
Anti-Solarization
The transmission of conventional UV-enhanced silica/silica fiber decreases rapidly at wavelengths below 240 nm when exposed to high intensities of a deuterium lamp. This effect is called “UV-solarization” and results from the generation of color centers in the fiber material. The lifetime of such a fiber, defined by the 1/e reduction in transmission at 240 nm, is normally less than 200 minutes. This effect renders them unsuitable for UV spectroscopy below 240 nm. Anti-solarization fibers suitable for deep UV spectroscopy solve this problem. These fibers stabilize to less than 5% degradation over a period of 20,000 hours after an initial transmission “burn-in” loss of less than 25%. Additionally, this anti-solarization characteristic will not degrade over time.
