FO-6000
Tungsten Fiber Light Source
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview

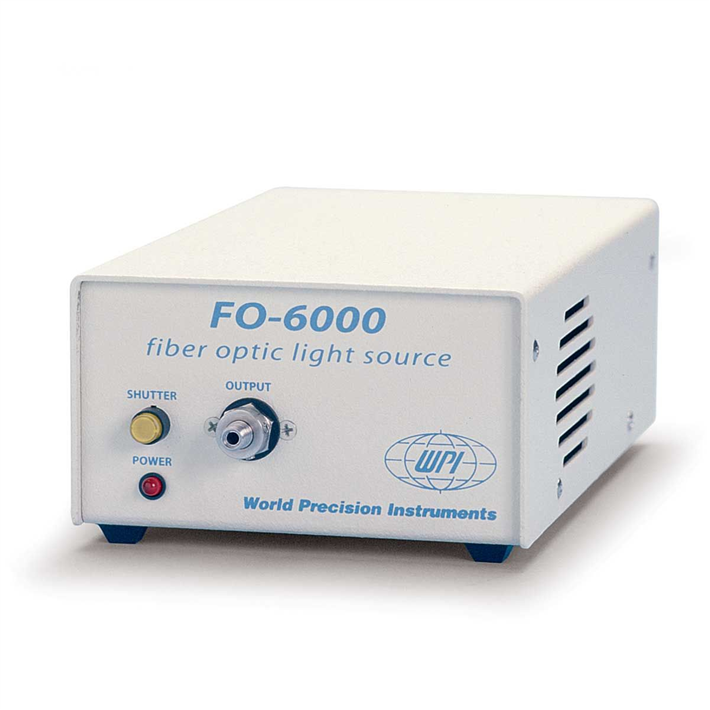

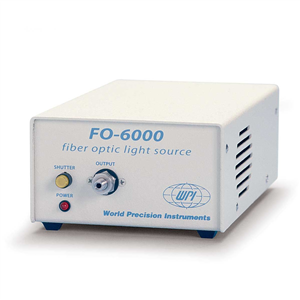

There are 1 images available to view - click to enlarge and scroll through the product gallery.
Data Sheet
/ Download as PDF
Manual
/ Download as PDF
- VIS/NIR continuous fiber optic light source
- Wavelength range: 380-1700nm
- Integrated TTL shutte
- Ultra-low drift: < 1mAU/h
High light power output
This miniature tungsten light source was developed for high precision portable and low-power spectroscopy applications. The FO-6000 is a light source for the extended visible part of the light spectrum (380–1700nm). It has an SMA type output connector. Shutter and lamp can be operated via TTL external triggering. This light source offers a wide assortment of field applications in analytical chemistry, as well as environmental and life science.
In comparison with competitors' fiber optic light sources, the FO-6000 has two distinct advantages:
- The optical bench is designed for minimal drift (
- Expanded spectral range (380-1700nm)
The inherent low noise and low drift of the FO-6000 makes it particularly suitable for low-noise detection systems.
Specifications
LIGHT SOURCE SPECIFICATIONS |
D4H |
FO-6000 |
| Application | UV/VIS/NIR | VIS/NIR |
| Spectral Range | 200—1100 nm | 380—1700 nm |
| Deuterium Lamp Life | 2000 hr | NA |
| Tungsten/Halogen Lamp Life | 2000 hr | 3000* hr |
| Stability | 1-2 mAU/h | |
| Power Consumption | 140 W | 6 W |
| Power Requirements | 110/240V, 50-60Hz, 1A | 12VDC/1A |
| Shutter / TTL Trigger | Yes | Yes |
| Max Fiber Output | 1000 µm | 1000 µm |
| Connections | SMA | SMA |
| Shipping Weight | 13.2 lb (6 kg) | 1.3 lb (0.6 kg) |
| Dimensions (W/H/L) | 17.8 x 15.7 x 25 cm | 12 x 7 x 19 cm |
| *Lamp life is dependent upon internal power settings. |
