DIP-UV-MINI-5

Overview

• The Mini DipTip is much smaller than the standard DipTips and connects with most standard spectrometers using ta 600µm connection.

Details

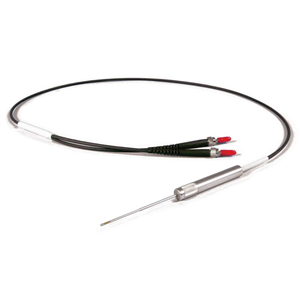

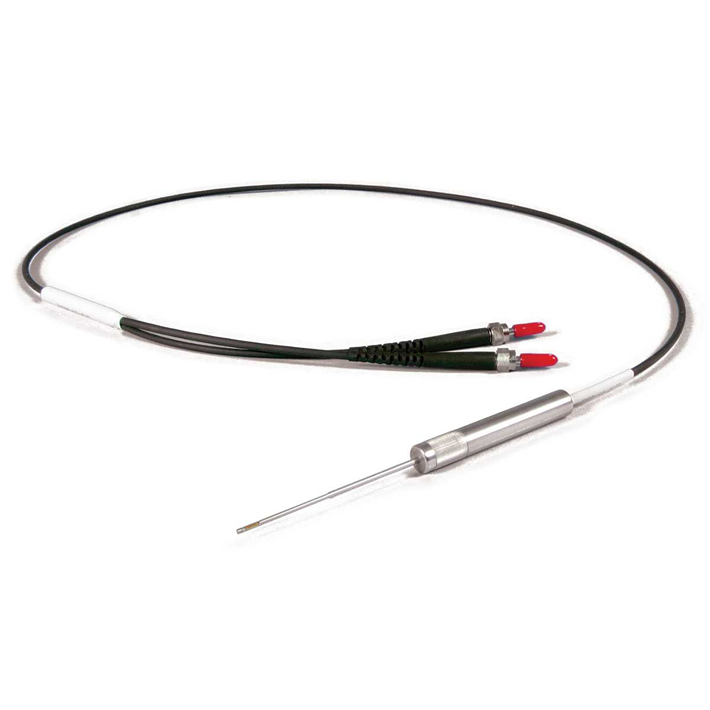

DipTip™ is a miniature transmission probe for microliter spectroscopic sampling. DipTip’s tip diameter is only 1.5 mm—the size of a 17-gauge needle. It will fit into all micro centrifuge tubes on the market and is a useful tool for measuring protein and DNA samples. The diminutive dipping probe can also be used for a dissolution system.

Because of WPI's proprietary optical design, the standard DipTip is not only four to five times smaller in diameter than any other product on the market, but also costs 50% less. Now, the new Mini DipTip is even smaller.

Microliter samples can be analyzed cost effectively when you combine the Mini DipTip with one of the following:

• The Fiber optic-based spectrometer (Tidas I) and a light source (D2H and FO-6000)
• A spectrophotometer (Tidas 100)
• WPI's biophotometric detection system (LEDspec)

The Mini DipTip is ideal for multi-channel applications.

• 10 times more efficient than standard DipTips
• Compatible with many standard spectrophotometers (600µm fiber optic coupler connections)

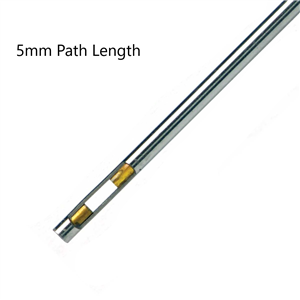

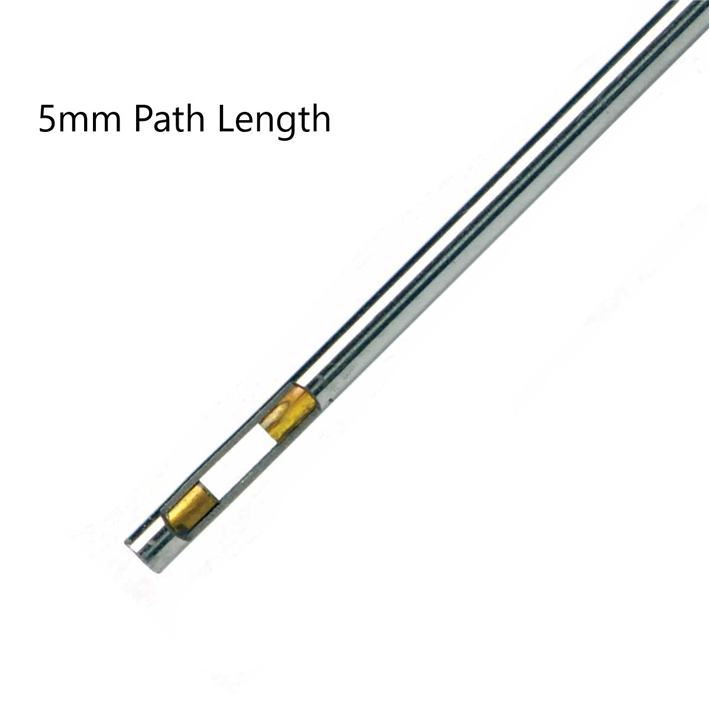

• 2, 5 and 10mm light pathlengths available
• More flexible cables than standard DipTips
