56200

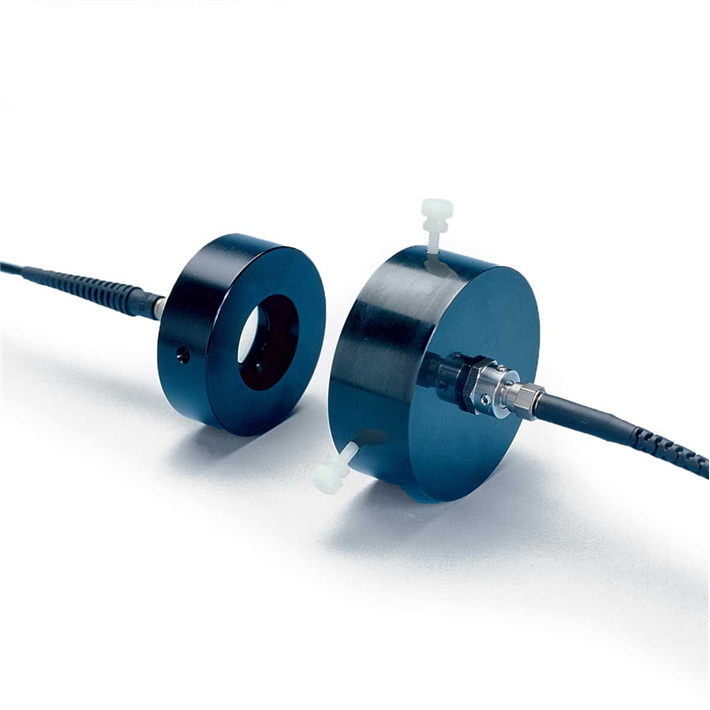

Inline Fiber Optic Filter Holder (SMA)
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 1 images available to view - click to enlarge and scroll through the product gallery.
56200 Instruction Manual
/ Download as PDF
- Allows the insertion of optical filters within a fiber optic pathway
- Connectors are compatible with WPI' range of fiber optic jumper cables
- Can be coupled using SMA or ST connectors
Details
Filters
Filters with outer diameters from 12.5 to 25.4 mm and thicknesses from 2 to 10 mm can be accomodated. The design limits lateral and axial movement of the filter when secured in the holder.
Collimators
Two fiber optic collimators are internally mounted in the holder so as to pass collimated light through the filter and then refocus the filtered light into the aperture of the output fiber. Spectral range will be largely limited by the bandpass of the optical fibers (from UV to near IR using WPI UV-enhanced cables)
