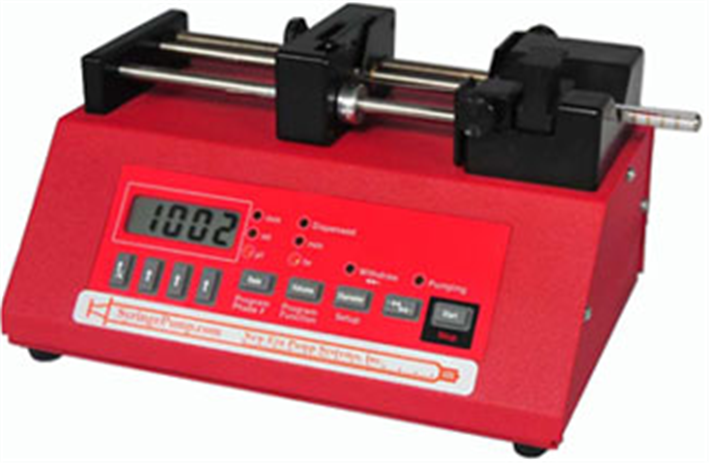

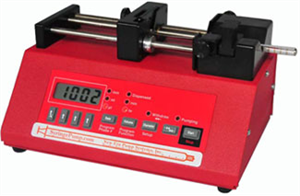

NE-1002X

Overview

• The smoothest microfluidic syringe pump on the market. (Compare our advance per step with the competition and discover for yourself).
• Holds 1 syringe up to 60 mL*
• Advance Per Step: 4.252232 Nanometers
• Infusion rates from .008 nL/hr (.5 µL syringe) to 2545 µL/min (140 mL syringe)
• Available in Double Syringe (NE-4002X) version
• Easy-to-use keypad interface
• Space Saving Chassis: Foot print size of only 5 3/4" x 8 3/4"  Won't take up unnecessary space on your laboratory or production bench
• Includes all the advanced functions and programming features of the ALADDIN family
• Includes the X Upgrade Smooth Linear/Gradient increasing and decreasing pumping feature
• Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately.

Example Flow Rates

Syringe Size	Maximum Rate	Minimum Rate
0.5 µl	187.3 nL/min	0.071 nL/hr
1 µl	37.57 nL/min	0.015 nL/hr
2 µl	74.81 nL/min	0.029 nL/hr
5 µl	2979 nL/min	1.117 nL/hr
10 mL	445.6 µL/min	167 nL/hr
20 mL	639.7 µL/min	239.7 nL/hr
30 mL	821.7 µL/min	307.9 nL/hr
60 mL	1555 µL/min	582.6 nL/hr



SyringePumpPro is fully compatible with syringe pumps!

SyringePumpPro Software Take Your Pump Control to the Next Level! SyringePumpPro helps you get your pumps working for you - fast, so you can get to work on your project.
