SPLG100

Legato 100 Single Syringe Infuse Only

Overview
Specifications
Accessories
Citations
Related Products

Overview

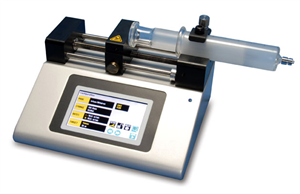

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Legato 100 Datasheet
/ Download as PDF

The KD Scientific Legato 100 and 200 series offer unparalleled ease of use through the high resolution touch screen user interface. The full touch screen interface enables the user to quickly create configurations and recall them for ease of use. The TFT colour display presents all the pump operating parameters on an easy to view run screen.

The password feature prevents accidental configuration changes ensuring the program integrity is retained. The pumps are versatile and can be interconnected through the RS485 interface. Legato 100 and 200 series models can be mixed and matched in the daisy chain offering maximum flexibility. Up to 99 pump can be linked together through the RS485 interface.

The Legato optimizes your lab bench space. For limited laboratory space the Legato 100 and 200 series can be placed on its side to reduce the footprint. The display can also be changed to allow the user to operate the pump vertically.

LEGATO 100 INFUSE ONLY SYRINGE PUMP

Infuse only single syringe pump. Accommodates syringes from 0.5ul to 60ml. User definable flow rates with selectable target volume or time values to control the total infusion volume.

Features:

Holds one syringe from 0.5ul to 60ml
Stall detection
High resolution colour touch screen
Unparalleled ease of use
Password protected touch display
Run LED light on front panel
Full metal chassis
Built in syringe table
Up to 30 lbs/13kg linear force
Advanced microstepping techniques
Built in RS485 interface
USB port
I/O & TTL interface
Continuous mode of operation
Spill dam

Examples of Flowrates

Syringe	Diameter	Minimum	Maximum
0.5 µl	0.103 mm	1.260 pl/min	1.325 µl/min
1 µl	0.146 mm	2.520 pl/min	2.651 µl/min
2 µl	0.206 mm	5.1 pl/min	5.299 µl/min
5 µl	0.343 mm	14.100 pl/min	14.690 µl/min
10 µl	0.485 mm	28.260 pl/min	29.380 µl/min
25 µl	0.729 mm	63.900 pl/min	66.370 µl/min
50 µl	1.03 mm	127.600 pl/min	132.500 µl/min
100 µl	1.457 mm	255.200 pl/min	265.100 µl/min
250 µl	2.304 mm	638.300 pl/min	662.900 µl/min
500 µl	3.256 mm	1.275 nl/min	1.324 ml/min
1000 µl	4.608 mm	2.553 nl/min	2.652 ml/min
1 ml	4.699 mm	2.655 nl/min	2.757 ml/min
3 ml	8.585 mm	8.863 nl/min	9.204 ml/min
5 ml	11.989 mm	17.290 nl/min	17.950 ml/min
10 ml	14.427 mm	25.030 nl/min	25.990 ml/min
20 ml*	19.05 mm	43.640 nl/min	45.320 ml/min
30 ml*	21.59 mm	56.050 nl/min	58.210 ml/min
60 ml*	26.594 mm	85.050 nl/min	88.320 ml/min

Specifications

Accuracy:	± 0.5%
Reproducibility	± 0.05%
Syringes (Min/Max)	0.5 ul to 60ml
Flow Rate:	Minimum (0.5 ul syringe): 1.28 pl/min Maximum (10ml syringe): 25.99 ml/min Maximum (60ml syringe): 88.28 ml/min
Display	4.3 WQVGA TFT Color Display with Touchpad
Non-Volatile Memory	Stores all Settings
Connectors:	RS485 - IEEE-1394 6 pos USB - Type B I/O & TTL - 15 pin D-Sub Connector
Linear Force (Max)	13.6 kg (30 lbs) @ 100% Force Selection
Drive Motor	0.9 degree Stepper Motor
Motor Drive Control	Microprocessor with 1/16 microstepping
Number of Microsteps per one rev. of Lead Screw	15,360
Step Rate - Minimum	27.5 sec/ustep
Step Rate - Maximum	26 usec/ustep
Pusher Travel Rate - Minimum	0.15 um/min
Pusher Travel Rate - Maximum	159 mm/min
Power	100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse
Dimensions	22.6 x 19.05 x 15 cm (9 x 7.5 x 5 in)
Weight	2.66 kg (5.9 lbs)
Operating Temperature	4 degree'C to 40 degree C (40 degree F to 104 degree F)
Storage Temperature	-10 degreeC to 70 degree C (14 degree F to 158 degree F)
Humidity	20% to 80% RH non condensing
Mode of Operation	Continuous
Classification	Class 1
Pollution Degree	1
Installation Category	11
Regulatory Certification	CE, UL, CSA, CB Scheme, EU RoHS
