AL-DUAL-AL-1000

Overview

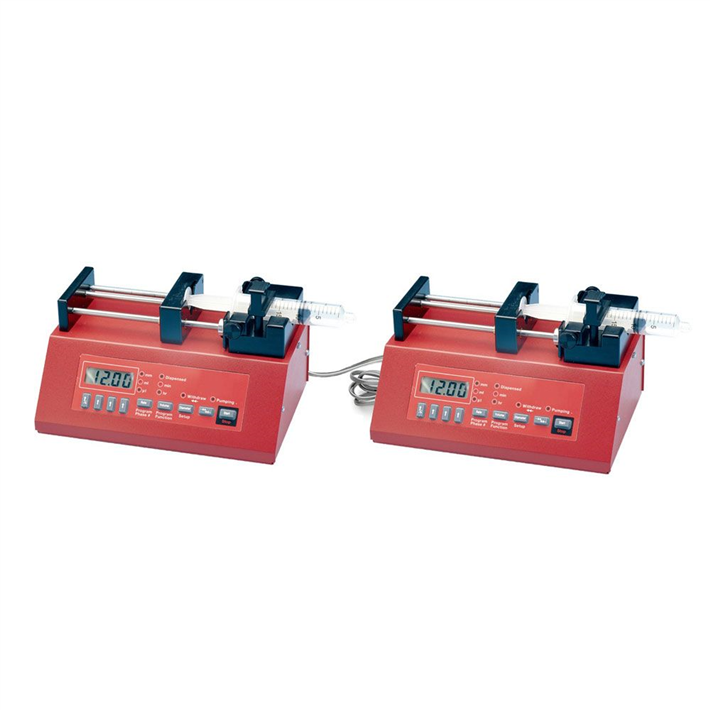

• Includes 2 x AL-1000 pumps and sync cable for reciprocating use
• Each pump accepts syringe sizes: 1-60mL, or 0.5-5 uL
• Programmable, economical, verstaile
• Network, control, and monitor up to 100 pumps with one computer

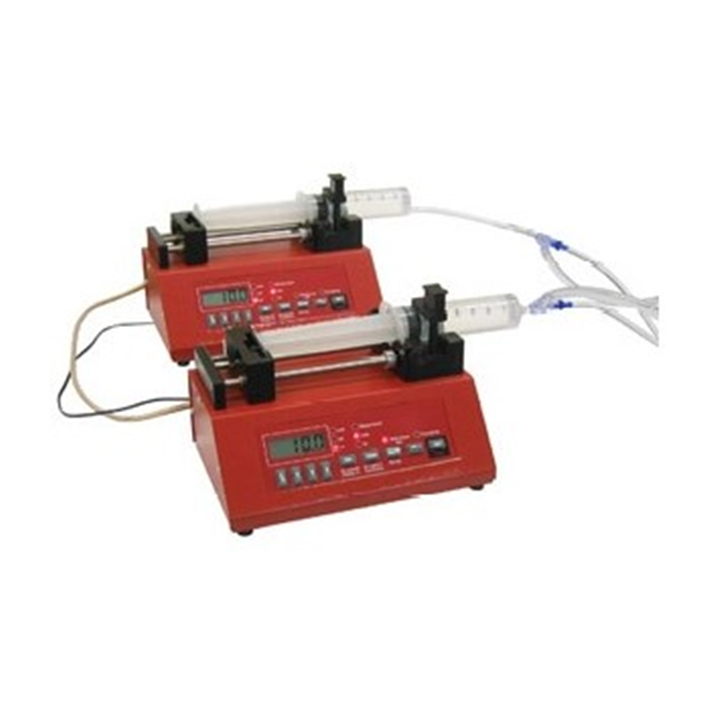

The Dual System allows the two pumps to communicate with each other through a synchronization cable. The system is flexible and can the pumps casn be configured to operate in:

• Continuous flow (push/pull configuration requires p-dkit optional check valve set)
• Emulsification
• Independently

Each AL-1000 pump offers

• Automatic dispensing of small volumes
• Very precise, reproducible flow rate control
• Displays total volume dispensed in mL or µL units
• Selectable infusion/withdrawal rate units (mL/hr, µL/hr, mL/min, µL/min)
• Infusion rate can be changed while pumping
• Program pump via keypad or from a computer
• Highly controllable – program sequences without a computer (holds up to 41 programming phases)
• Motor stall detection

To meet the demands of a busy lab Aladdin Pumps offer exceptional value providing versatility and reliability for accurately dispensing media down into the nanoliter range.

The Aladdin AL-1000 is a programmable single channel infusion / withdrawal syringe pump. It has a metal casing to provide stability, ensuring less vibration is transferred to the syringes. Setup is easy using the pumps keypad or via a computer with optional PC to pump cable (GN-PC7 or GN-PC25).

The Aladdin AL-1000 can run complex programs with up to 41 pumping phases can be set to change pumping rates; set dispensing volumes; insert pauses; control and respond to external signals; sound the buzzer.

Channels Per Pump	1
Type	Infusion / Withdrawal
Flow Range	0.001 µL/hr (0.5 mL syringe) to 3470 mL/hr (140 mL syringe)
Dispensing Accuracy	±1%
Syringe Sizes Accepted	0.5 µL to 60 mL or 140 mL partially filled
Linear Force	35 lb at low speed; 18 lb at maximum speed

Example Flow Rates

Syringe Size	Maximum Rate	Minimum Rate
0.5 µL	25.49 µL/hr	0.001 µL/hr
1 mL	52.86 mL/hr	0.727 µL/hr
3 mL	223.8 mL/hr	3.076 µL/hr
5 mL	372.5 mL/hr	5.119 µL/hr
10 mL	607.6 mL/hr	8.349 µL/hr
20 mL	966.2 mL/hr	13.28 µL/hr
30 mL	1260 mL/hr	17.32 µL/hr
60 mL	2120 mL/hr	29.1 µL/hr
140 mL	3470 mL/hr	47.7 µL/hr

Specifications

SYRINGE SIZES	1-60 mL, or 0.5-5µL micro syringes
NUMBER OF SYRINGES	1
MOTOR TYPE	Step Motor, 1/8 to 1/2 step modes
STEPS PER REVOLUTIONS	400
STEPPING (max. min.)	0.21µm to 0.850µm
MOTOR TO DRIVE SCREW RATIO	15/28
SPEED (max./min.)	5.1 cm/min / 0.0042 cm/hr
PUMPING RATES	1699 mL/hr with 60 mL syringe, to 0.73µL/hr with 1 mL syringe
MAXIMUM FORCE	35 lb at min. speed, 18 lb at max. speed
NUMBER OF PROGRAM PHASES	41
RS-232 PUMP NETWORK	100 pumps maximum
POWER supply	Wall adapter 12V DC @ 850 mA
DIMENSIONS	22.9 x 14.6 x 11.4 cm (8.75 x 5.75 x 4.5 in.)
WEIGHT	3.2 kg

Accessories

Citations

Birngruber, T., & Ghosh, A. (2013). Cerebral open flow microperfusion: A new in vivo technique for continuous measurement of substance transport across the intact blood–brain barrier. Clinical and  …. Retrieved from https://onlinelibrary.wiley.com/doi/10.1111/1440-1681.12174/full

Ferreira, D., Reis, R., & Azevedo, H. (2013). Peptide-based microcapsules obtained by self-assembly and microfluidics as controlled environments for cell culture. Soft Matter. Retrieved from https://pubs.rsc.org/EN/content/articlehtml/2013/sm/c3sm51189h

Herricks, T., Avril, M., Janes, J., Smith, J., & Rathod, P. (2013). Clonal Variants of Plasmodium falciparum Exhibit a Narrow Range of Rolling Velocities to Host Receptor CD36 under Dynamic Flow Conditions. Eukaryotic cell. Retrieved from https://ec.asm.org/content/12/11/1490.short

Maya, H., Vincent, M., & Nötzli, S. (2013). Increased porosity of electrospun hybrid scaffolds improved bladder tissue regeneration. …  Research Part A. Retrieved from https://onlinelibrary.wiley.com/doi/10.1002/jbm.a.34889/full

Tõnurist, K., Thomberg, T., & Jänes, A. (2013). Polymorphic Behavior and Morphology of Electrospun Poly (Vinylidene Fluoride) Separator Materials for Non-Aqueous Electrolyte Based Electric Double Layer. ECS  …. Retrieved from https://ecst.ecsdl.org/content/50/45/49.short

Tõnurist, K., Thomberg, T., Jänes, A., & Lust, E. (2013). Specific Performance of Electrical Double–Layer Capacitors Based on Different Separator Materials and Non–Aqueous Electrolytes. ECS Transactions. Retrieved from https://ecst.ecsdl.org/content/50/43/181.short

Zander, N., & Orlicki, J. (2013). Electrospun polycaprolactone scaffolds with tailored porosity using two approaches for enhanced cellular infiltration. Journal of Materials  …. Retrieved from https://link.springer.com/article/10.1007/s10856-012-4771-7

Zhang, J., Jiang, D., & Peng, H. (2014). A pressurized filtration technique for fabricating carbon nanotube buckypaper: Structure, mechanical and conductive properties. Microporous and Mesoporous Materials. Retrieved from https://www.sciencedirect.com/science/article/pii/S1387181113005192

Zhang, J., Jiang, D., Peng, H., & Qin, F. (2013). Enhanced mechanical and electrical properties of carbon nanotube buckypaper by in situ cross-linking. Carbon. Retrieved from https://www.sciencedirect.com/science/article/pii/S000862231300568X
