AL-DUAL-AL-1010

AL-DUAL-AL-1010

Dual Aladdin High Pressure Pump System (Two Aladdin AL-1010 SyringeONE:100 High Pressure Syringe Pumps with sync cable for reciprocating use)



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

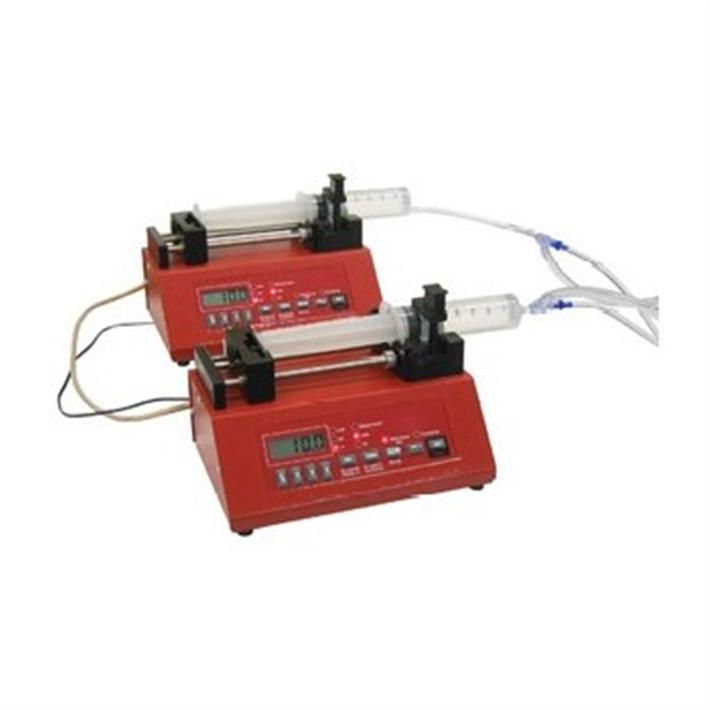

AL-DUAL-AL-1010 Dual Aladdin High Pressure Pump System

There are 1 images available to view - click to enlarge and scroll through the product gallery.

AL-DUAL-AL-1010 Instruction Manual
/ Download as PDF

  • Includes 2 x AL-1010 pumps and sync cable for reciprocating use
  • Each pump accepts syringe sizes: 1-60mL, or 0.5-5 uL
  • Programmable, economical, verstaile
  • Network, control, and monitor up to 100 pumps with one computer

The Dual System allows the two pumps to communicate with each other through a synchronization cable. The system is flexible and can the pumps casn be configured to operate in:

  • Continuous flow (push/pull configuration requires p-dkit optional check valve set)
  • Emulsification
  • Independently

Each AL-1010 pump offers

  • Automatic dispensing of small volumes
  • Very precise, reproducible flow rate control
  • Displays total volume dispensed in mL or µL units
  • Selectable infusion/withdrawal rate units (mL/hr, µL/hr, mL/min, µL/min)
  • Infusion rate can be changed while pumping
  • Program pump via keypad or from a computer
  • Highly controllable – program sequences without a computer (holds up to 41 programming phases)
  • Motor stall detection

To meet the demands of a busy lab Aladdin Pumps offer exceptional value providing versatility and reliability for accurately dispensing media down into the nanoliter range.

The Aladdin AL-1010 is a high pressure programmable single channel infusion / withdrawal syringe pump. It has a metal casing to provide stability, ensuring less vibration is transferred to the syringes. Setup is easy using the pumps keypad or via a computer with optional PC to pump cable (GN-PC7 or GN-PC25).

The Aladdin AL-1010 can run complex programs with up to 41 pumping phases can be set to change pumping rates; set dispensing volumes; insert pauses; control and respond to external signals; sound the buzzer. (For Linear/Gradient programs use AL-1010X)

Example flow rates

Syringe Size Maximum Rate Minimum Rate
0.5 µL 91.83 µL/hr 0.001 µL/hr
1 mL 190.4 mL/hr 1.453 µL/hr
3 mL 806.1 mL/hr 6.151 µL/hr
5 mL 1341 mL/hr 10.24 µL/hr
10 mL 2188 mL/hr 16.7 µL/hr
20 mL 3479 mL/hr 26.55 µL/hr
30 mL 4539 mL/hr 34.64 µL/hr
60 mL 7635 mL/hr 58.3 µL/hr
140 mL 208.3 mL/min 95.37 µL/hr





Specifications

SYRINGE SIZES 1-60 mL (140 mL partially filled)
NUMBER OF SYRINGES 1
MOTOR TYPE Step Motor, 1/8 to 1/2 step modes
STEPS PER REVOLUTIONS 200
STEPPING (min. max.) 0.425 µm (1/8 stepping) to 1.701 µm (1/2 stepping)
MOTOR TO DRIVE SCREW RATIO 15/28
SPEED (max./min.) 18.4 cm/min / 0.0084 cm/hr
PUMPING RATES 6120 mL/hr with 60mL syringe, to 1.459 µL/hr with 1mL syringe
MAXIMUM FORCE 100 lb at min. speed, 18 lb at max. speed
NUMBER OF PROGRAM PHASES 41
RS-232 PUMP NETWORK 100 pumps maximum
POWER supply Wall adapter 12V DC @ 1000mA
DIMENSIONS 22.9 x 14.6 x 11.4 cm (8.75 x 5.75 x 4.5 in.)
WEIGHT 1.6 kg (3.6 lb)

Accessories


Choose Quantity
GN-NET7

GN-NET7

Pump-to-pump Network Cable, 7 ft for Aladdin series pumps

View details...


Choose Quantity
GN-NET25

GN-NET25

Pump-to-pump Network Cable, 25 ft for Aladdin series pumps

View details...


Choose Quantity
GN-PC25

GN-PC25

PC to pump cable, 25 ft for Aladdin series pumps

View details...


Choose Quantity
ADPT2

ADPT2

Footswitch for Aladdin programmable syringe pumps

View details...


Choose Quantity
GN-PC7

GN-PC7

PC to pump cable, 7 ft for Aladdin series pumps

View details...


Choose Quantity
GN-TTL-1

GN-TTL-1

Pump-to-pump reciprocating cable for Aladdin series pumps

View details...


Choose Quantity
P-DKIT

P-DKIT

Dual Pump Plumbing Kit

View details...

Citations

Birngruber, T., & Ghosh, A. (2013). Cerebral open flow microperfusion: A new in vivo technique for continuous measurement of substance transport across the intact blood–brain barrier. Clinical and  …. Retrieved from https://onlinelibrary.wiley.com/doi/10.1111/1440-1681.12174/full

Ferreira, D., Reis, R., & Azevedo, H. (2013). Peptide-based microcapsules obtained by self-assembly and microfluidics as controlled environments for cell culture. Soft Matter. Retrieved from https://pubs.rsc.org/EN/content/articlehtml/2013/sm/c3sm51189h

Herricks, T., Avril, M., Janes, J., Smith, J., & Rathod, P. (2013). Clonal Variants of Plasmodium falciparum Exhibit a Narrow Range of Rolling Velocities to Host Receptor CD36 under Dynamic Flow Conditions. Eukaryotic cell. Retrieved from https://ec.asm.org/content/12/11/1490.short

Maya, H., Vincent, M., & Nötzli, S. (2013). Increased porosity of electrospun hybrid scaffolds improved bladder tissue regeneration. …  Research Part A. Retrieved from https://onlinelibrary.wiley.com/doi/10.1002/jbm.a.34889/full

Tõnurist, K., Thomberg, T., & Jänes, A. (2013). Polymorphic Behavior and Morphology of Electrospun Poly (Vinylidene Fluoride) Separator Materials for Non-Aqueous Electrolyte Based Electric Double Layer. ECS  …. Retrieved from https://ecst.ecsdl.org/content/50/45/49.short

Tõnurist, K., Thomberg, T., Jänes, A., & Lust, E. (2013). Specific Performance of Electrical Double–Layer Capacitors Based on Different Separator Materials and Non–Aqueous Electrolytes. ECS Transactions. Retrieved from https://ecst.ecsdl.org/content/50/43/181.short

Zander, N., & Orlicki, J. (2013). Electrospun polycaprolactone scaffolds with tailored porosity using two approaches for enhanced cellular infiltration. Journal of Materials  …. Retrieved from https://link.springer.com/article/10.1007/s10856-012-4771-7

Zhang, J., Jiang, D., & Peng, H. (2014). A pressurized filtration technique for fabricating carbon nanotube buckypaper: Structure, mechanical and conductive properties. Microporous and Mesoporous Materials. Retrieved from https://www.sciencedirect.com/science/article/pii/S1387181113005192

Zhang, J., Jiang, D., Peng, H., & Qin, F. (2013). Enhanced mechanical and electrical properties of carbon nanotube buckypaper by in situ cross-linking. Carbon. Retrieved from https://www.sciencedirect.com/science/article/pii/S000862231300568X
