AL-1200

AL-1200

Aladdin SyringeTWELVE Programmable 12 Channel Syringe Pump - Holds 2, 4, 6, 8, 10 or 12 syringes of up to 3 cc



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

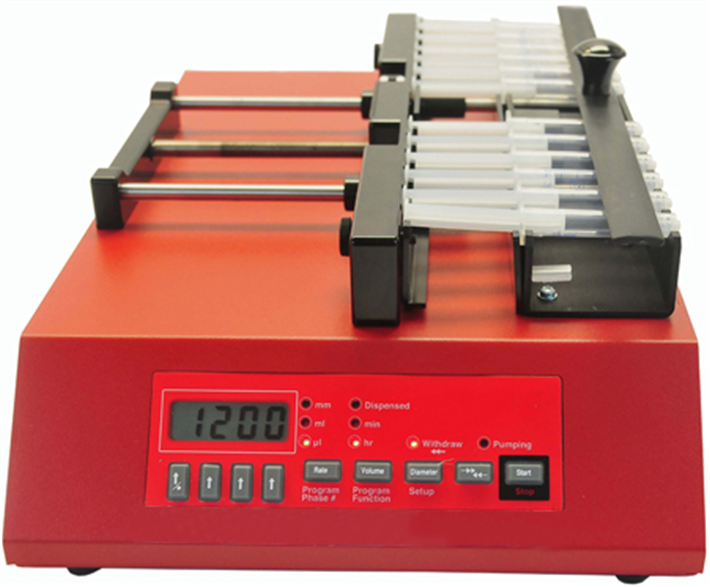

AL1200

There are 1 images available to view - click to enlarge and scroll through the product gallery.

AL-1200 Instruction Manual
/ Download as PDF

  • Holds 2, 4, 6 8, 10 or 12 syringes of up to 3 mL

  • Infusion rates from 0.45 µL/hr (1 mL syringe) to 153.2 mL/hr (3 mL syringe)

  • Operates stand-alone or from a computer

  • Programmable preset protocols

  • RS-232 and TTL logic control interfaces

  • Motor stall detection

  • Non-volatile memory of all parameters and programming

  • Upgradeable memory

  • Dispensing accuracy of ±1%

Channels 12
Type Infusion / Withdrawal
Flow Range 0.001 µL/hr (0.5 µL syringe) to 153.2 mL/hr (3 mL syringe)
Dispensing Accuracy ±1%
Syringe Sizes Accepted 0.5 µL to 3 mL
Linear Force Applied To All Syringes 160 lb at low speed; 30 lb at maximum speed



The AL-1200 Programmable Syringe Pump is perfect for situations requiring flexibility or automation.

With a variety of pumping rates (0.45 µL/hr to 153.2 mL/hr), infusion and withdraw capability, and pumping phases that can be programmed, the AL-1200 was designed for automation. This pump can handle applications like simple infusions, as well as complex pumping programs.

You can program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, or sound an alarm. Connect two pumps with a dual cable (WPI #GN-TTL) to create a dual pump system that allows for continuous infusion or emulsification. If required, you can network, control and monitor up to 100 pumps with a single computer.

AL-1200 Twelve-Channel Syringe Pump Example Flow Rates

Syringe Size Maximum Rate Minimum Rate
0.5 µL 17.45 µL/hr 0.001 µL/hr
2 µL 69.82 µL/hr 0.001 µL/hr
5 µL 174.8 µL/hr 0.003 µL/hr
1 mL 36.19 mL/hr 0.452 µL/hr
3 mL 153.2 mL/hr 1.914 µL/hr

NOTE: This product is not approved for clinical use on humans.

Specifications

Syringe Sizes Up to 3 mL
Number of Syringes 2, 4, 6, 8, 10 or 12
Motor Type Step Motor, 1/8 to 1/4 step modes
Steps per Revolution 200
Advance per Step 0.132291667µM to 0.264583333µM depending on motor speed
Motor to Drive Screw Ratio 5/1
Drive Screw Pitch 24 revolutions/inch
Power Supply Wall adapter 12V DC @ 1000 mA
DC Connector 2.5mm, center positive
Power Supply Type Unregulated linear external wall adapter, country and power source specific
Dimensions 26.03 x 38.1 x 12.7 cm (10 1/4 x 15 x 5 in.)
Weight 4,595 kg (10.125 lbs)
Max. Speed 3.4917cm/min
Min. Speed 0.0026cm/hr
Max. Pumping Rate 121.2 mL/hr. with a B-D 3cc syringe
Min. Pumping Rate 0.454 μL/hr. with a B-D 1cc syringe
Max. Force applied to all syringes 160 lbs. at minimum speed, 30 lbs. at maximum speed
