Lambda 10-B

Lambda 10-B

Optical Filter Changer


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

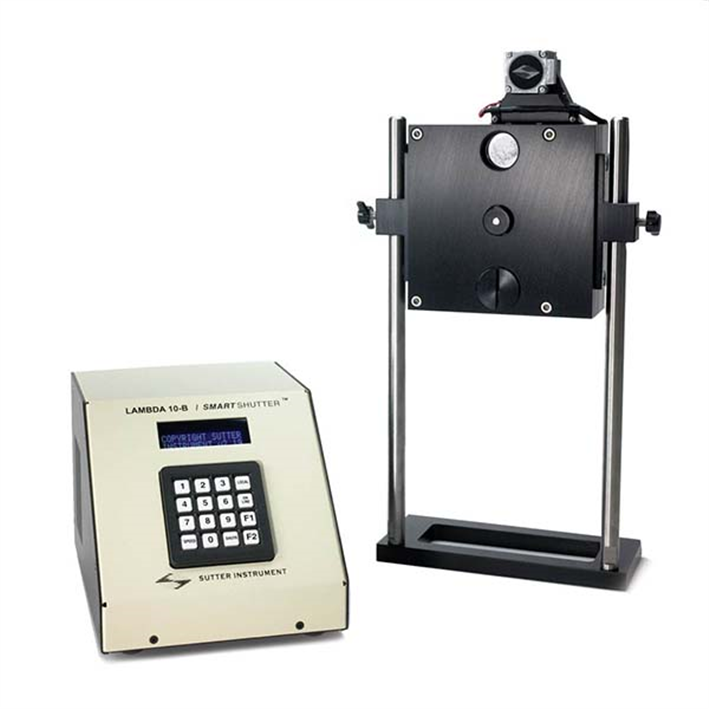

There are 1 images available to view - click to enlarge and scroll through the product gallery.

The Lambda 10-B is a high performance, microprocessor-controlled filter wheel for imaging applications requiring a single filter wheel. The latest release in Sutter's optical filter changer product line, the Lambda 10-B, uses recent advances in motor technology to achieve switching times of 40 msec between adjacent filters. When used with our high-speed 4 position wheels, the Lambda 10-B achieves switching times of less than 31 msec. It features both USB and serial port interfaces as well as keypad control. The Lambda 10-B is a low-cost alternative to the Lambda 10-2 and ideal for imaging applications requiring a single filter wheel.

The Lambda 10-B can operate with switching times as brief as 4 msec with our standard 25 mm filter wheel as well as our 32 mm wheel. The user can select from seven speeds, allowing the speed to be adjusted in accordance with the load of the wheel. Except for the 4 position compact wheel, our filter wheels employ a direct drive system: a feature that prevents belt slippage or backlash. An optional shutter installation is also available.

Filter selection can be made directly from the keypad or from a computer via the serial or USB port. The Lambda 10-B controller determines the shortest route to the selected filter and an acceleration/deceleration algorithm minimizes vibrations during the movement of the wheel. The current filter position is displayed on the front panel. Internal sensors monitor the position of the filter wheel to insure that the correct filter is in place. The drive uses switching mode current regulation, which is more economical than the linear supply of the Lambda 10-2. Although this is not a problem with most imaging applications, the Lambda 10-2 may be more appropriate for systems where electrophysiology is performed.

Both serial and USB input ports are provided to allow complete and easy control from a remote computer. The serial port accepts RS232 level signals through a DB-9 connector. USB input is made through a standard connector and can be directly connected to a USB port. The Lambda 10-B's USB port interface supports multiple USB devices simultaneously, allowing a user to run in tandem as many units as USB ports. The universal power supply will automatically switch to accommodate local line voltage.

Options:

The basic system for the Lambda 10-B includes our popular 10 position 25 mm filter wheel. A significant advantage of the Lambda 10-B controller is that it can accommodate a variety of Sutter filter wheels to suit your particular requirements. The controller will automatically detect and determine the model of wheel installed and adjust for the number of positions and filter size.

Our 32 mm wheel was designed to remedy the problem of vignetting that may occur with a 25 mm filter format in certain microscope systems, and can achieve the same 40 ms switching times as our 25 mm wheel. For applications requiring a larger aperture opening, there is a 5 position 50mm filter wheel. If additional speed is required, we offer a high-speed, 4 position 25 mm wheel which is capable of achieving 31 ms switching times between adjacent filters. An optional liquid light guide is available for applications requiring absolute vibration isolation, and/or spatial uniformity independent of wavelength. The Lambda 10-B is also capable of controlling either the SmartShutter® or the Uniblitz® shutter.

GETTING FASTER FILTER SWITCHING TIMES WITH MANY FILTERS INSTALLED


The Sutter filter wheel systems have always been optimized for fast switching of a lightly loaded wheel. When many thick filters are installed, the added mass requires an increase in the time required to switch from one filter to another. Switching times improve significantly with filters made on a thin substrate that do not require a thick layer of additional glass to obtain the desired blocking. Semrock® has the required coating technology to offer filters with substrates down to 2 mm in thickness.

We have taken the additional step of designing a special threaded ring that Semrock can install in place of their typical plain filter cells. Filters mounted in these rings can be threaded directly into the body of our filter wheels when our standard filter cups have been removed. Semrock filters actually weigh less than the filter cup and retaining ring normally used to mount filters in the Sutter wheels. Thus, if you remove our filter cups and mount the new threaded filters directly in the wheel, even a fully loaded wheel will be able to run at speeds that previously could only be used with just 2 filters installed.

The STR Semrock filters are available in both 25 mm and 32 mm versions and should be purchased directly from Semrock. If you are installing these filters in a sutter wheel that has filter cups, you will need to remove the cup from the position you intend to use to mount the threaded filter. When installing the new threaded filters, you will want to use the new wrench designed for this purpose. Contact Sutter for details.

FEATURES

  • as fast as 40 msec between adjacent filters (10 position wheel)
  • as fast as 30 msec between adjacent filters (4 position wheel)
  • as fast as 28 msec with a fully loaded wheel using STR filters from Semrock®
  • Serial and USB interfaces
  • Can control a variety of 25 mm, 32 mm and 50 mm wheels
  • Controls one wheel and one optional shutter or two SmartShutter®
  • Can accomodate SmartShutter® and Uniblitz® shutter
  • Chopper drives
  • Universal power supply

Specifications

TECHNICAL SPECIFICATIONS

Dimensions of Control Box
6 in x 8.25 in x 5.25 in | 15.2 cm x 21 cm x 13.3 cm


Weight
2.6 lbs | 1.1 kg


Electrical
100/240 Volts
50/60 Hertz power line
75 Watts max.


RoHS Compliant

LB10-B/IQ* Lambda 10-B controller, serial and USB cables, power cord and manual
*CIQ-2 cable provided when ordered with stand-alone shutter

Wheels for Lambda 10-B


25 mm Filter Wheels - 10-position


LB10-NW 10-position 25 mm filter wheel without shutter

LB10-NWIQ 10-position 25 mm filter wheel with SmartShutter®

LB10-NWS 10-position 25 mm filter wheel with Uniblitz® shutter

LB10-NWE 10-position 25 mm filter wheel set up for emission


25 mm Filter Wheels - 4-position


LB10-WHS4 4-position 25 mm filter wheel without shutter

LB10-WHS4IQ 4-position 25 mm filter wheel with SmartShutter®

LB10-WHS4E 4-position 25 mm filter wheel set up for emission


Thin Filter Wheels - 10-position


LB10-TW1 10-position 25 mm thin filter wheel without shutter

LB10-TWIQ 10-position 25 mm thin filter wheel with SmartShutter® (Must be used wtih Semrock filters that have Sutter threaded ring)

LB10-TWE 10-position 25 mm thin filter wheel set up for emission (Must be used wtih Semrock filters that have Sutter threaded ring)

LB10-TW32 10-position 32 mm filter wheel without shutter (Must be used wtih Semrock filters that have Sutter threaded ring)


32 mm Filter Wheels - 10-position


LB10-W32 10-position 32 mm filter wheel without shutter

LB10-W32IQ 10-position 32 mm filter wheel with SmartShutter®

LB10-W32S 10-position 32 mm filter wheel Uniblitz® shutter

LB10-TW32 10-position 32 mm filter wheel without shutter (Must be used wtih Semrock filters that have Sutter threaded ring)

LB10-W32-Y732 32 mm emission wheel for Olympus IX73/83


50mm Filter Wheel - 5-position


LB10-W50 5-position 50mm filter wheel without shutter


Specialty Wheels


LB10-W12 10-position 12.5 mm filter wheel without shutter

LB4-W Belt drive 4-position 25 mm filter wheel without shutter

LB10-NWE-N29B 10-position 25 mm emission for bottom port of Nikon Ti

LB10-NWE-Z40 10-position 25 mm emission for Zeiss Axio Observer

LB5-W32-N31 5-position 32 mm wheel for infinity path of Nikon Ti2

SmartShutter®

IQ12-SA 12.5 mm SmartShutter® with stand-alone housing

IQ12-AN 12.5 mm hard anodized SmartShutter®

IQ25-SA 25 mm SmartShutter® with stand-alone housing (Where vignetting may be an issue, we recommend the 35 mm shutter.)

IQ25-W2 25 mm SmartShutter® with housing to fit filter wheel

IQ25-WU 25 mm SmartShutter® to retrofit non-shuttered filter wheel

IQ25-LS 25 mm SmartShutter® with housing to fit Lambda LS

IQ25-DG 25 mm SmartShutter® with housing to fit Lambda DG-4/DG-5

IQ35-W 35 mm SmartShutter® with housing to fit filter wheel

IQ35-SA 35 mm SmartShutter® with stand-alone housing

IQ50-SA 50 mm SmartShutter® with stand-alone housing

Mounting adapters for Nikon, Zeiss, Leica and Olympus microscopes are available.

Accessories

CIQ-2 25 pin connector to two 9 pin connectors (Allows connection of one stand-alone SmartShutter®)

FSWITCH Foot switch with BNC connector - Changes state of shutter with foot press as long as foot press is maintained

FSTOGGLE Foot switch with BNC connector - alternates open/close with each foot press

SLIDE-IN Slide-in filter holder for 25 mm wheel (Slide-in filter holders are for wheels with a shutter)

DROP-IN Drop-in filter holder for 25 mm wheel (Drop-in filter holders are for wheels without a shutter)

DROP-IN/32 Drop-in filter holder for LB10-W32IQ

X100120 25 mm filter cup

X100145 25 mm angled filter spacer (Two spacers are required for each filter position)

X100150 25 mm spacer

X100160 25 mm retaining ring

X100122 32 mm filter cup

X100152 32 mm spacer

X100162 32 mm retaining ring

X100124 50 mm filter cup

X100126 50 mm short filter cup

X100154 50 mm spacer

X100164 50 mm retaining ring

LLG Liquid light guide (2 meters, 3mm dia), C-mount, lens and lens tube

SHUTTER 25 mm replacement Uniblitz shutter (not an upgrade)

W620005 9 pin male/female serial cable

W620007 15 pin shielded cable for standard filter wheel

W620009 25 pin cable for wheels with SmartShutter

W621520 USB cable

X100111 35 mm replacement Uniblitz shutter (not an upgrade)

X100208 8 inch guide rod for stand (each)

X100210 12 inch guide rod for stand (each)

X100212 22 inch guide rod for stand (each)

X100560 25 mm spanner wrench

X100555 25 mm thin wheel spanner wrench

X100565 32 mm spanner wrench

X100558 32 mm thin wheel spanner wrench

X100567 50 mm spanner wrench

Mounting Posts

Stainless steel 1/2 in diameter. One end is 1/4in-20 (M6) tapped hole. Other end is #8-32 (M4) removable threaded stud. Can be used with 25 mm SmartShutter® or 35 mm when used with PMA-IQ35.

O620120 1 in / 25 mm long post

O620122 1.5 in / 38 mm long post

O620123 2 in / 50 mm long post

PMA-IQ35 35 mm post mount adapter

Post Holder

O620125 1 in | 25 mm holder and spring loaded thumbscrew for mounting post

O620130 2 in | 50 mm holder & spring loaded thumbscrew for post

O620134 4 in | 100 mm holder & spring loaded thumbscrew for post

O620136 6 in | 152 mm holder & spring loaded thumbscrew for post

Post Base Plate Suitable for Imperial or Metric tables, posts, and post holders

O620143 1 in x 2.3 in x 0.375 in base plate

O620140 2 in x 3 in x 0.375 in base plate

Post Collar

O620150 Slip-on collar, 1 in OD x 0.5 in ID
