504928

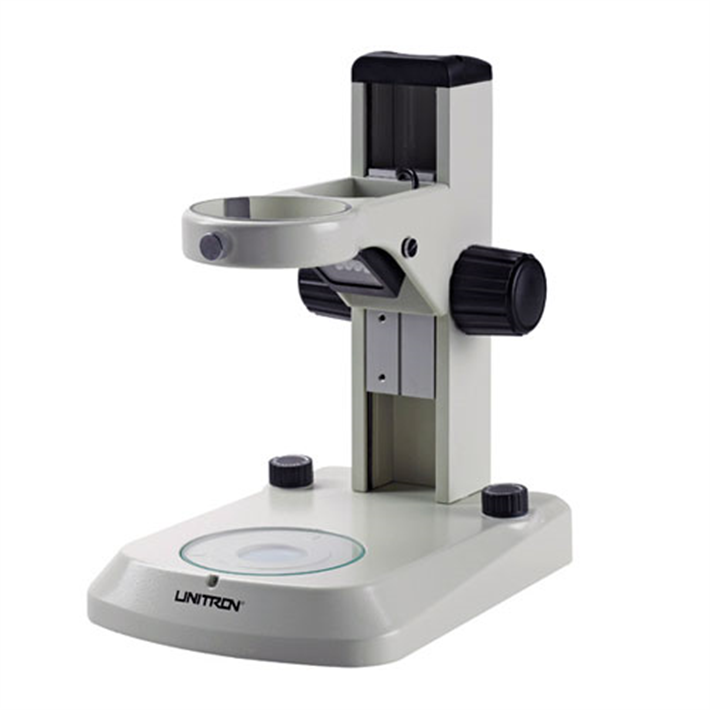

LED Microscope Stand, 10.5"

Overview
Specifications
Accessories
Citations
Related Products

Overview

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Variable reflected and transmitted illumination
LED reflected and transmitted illuminators can be used independently or simultaneously
Light quality: homogenous daylight 6500°K for both the reflected and transmitted illuminators
LED bulbs emit light that is UV and IR free
Approximate service life of the LED bulbs is 50,000 hours
4 inches (100mm) of continuously smooth focus travel
Black, white and clear glass stage plates
Base dimensions (LWH): 260mm x 184mm x 267mm
Universal power supply 100v to 240v, voltage sensitive, integrated

This microscope stand is suitable for use with the PZMIV with specimen heights of up to 5cm when you are using a 1x objective. This base is not suitable for use with the PZMIII series microscopes.

Specifications

Focus Mount Diameter	76mm
Focusing Stroke	100mm
Dimensions (LWH):	260mm x 184mm x 267mm
Plate Size	100mm clear glass and black and white plate
Illumination	LED 6500°K UV and IR free
Power Supply	110v – 240v CE
