AM73115MZTL

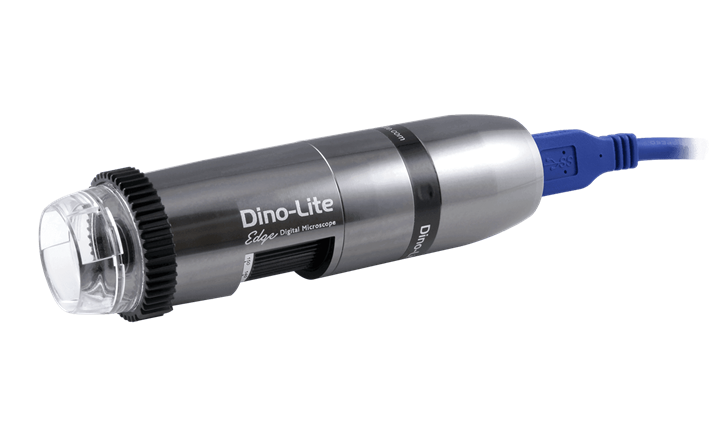

Dino-Lite Edge Digital Microscope 5MP, 10-140x magnification, LWD, polarizer, FLC, USB 3.0 with aluminium housing
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 1 images available to view - click to enlarge and scroll through the product gallery.
- 2592 x 1944 pixel 5MP
- High speed transmission - 15fps at 2560x1920 or 45fps at 1280x960
- 10-140x adjustable magnification
- Long working distance up to 23cm
- Integrated polarizer removes unwanted reflection of glare from the object surface
- Robust aluminium housing. The anodized alloy provides extra protection from electromagnetic interferences
- Flexible LED Control (FLC) maximizes illumination flexibility by offering independent on/off control to the four LED quadrants in addition to the 6-levels intensity adjustment capability
- Extensive measurement and calibration functions
- Exchangeable front caps
- User friendly software featuring comprehensive measurement functions
The AM73115MZTL Dino-Lite Edge Microscope delivers smooth, high-quality imaging via its USB 3.0 connection. Its advanced CMOS image sensor transmits sharp, crisp images at resolutions up to 2560x1920 without compression, meeting the needs of the most demanding microscopy applications. High-quality optics ensure a bright, naturally colored image with minimal aberration and vignetting.
With a magnification range of 10–140x and a long working distance, it suits a broad range of applications. A built-in polarization filter also makes it ideal for working with shiny or reflective objects such as metal, plastic, glass, jewellery, and electronics.
Specifications
What's Included
- Microscope, Carry pouch, Software, User manual, Quick guide, Calibration target, Front cover box
Lighting
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut-filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: No
- Polarizer: Yes, linear
Optics
- Magnification: 10-140x
- Macro zoom: No
- Working distance: Long
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 5 Megapixel (2592x1944)
- Maximum frame rate: 45fps (max 20fps for video recording)
Compatibility
- Interface: USB 3.0, Cable included**
- Operating system: Windows 7, 8 & 10, MacOS 10.9 and up
- Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
- WiFi: no
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF (max 1.3MP)
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV (max 1.3MP)
- Imaging standards: DirectShow, UVC
Housing
- Housing material: Metal housing
- Magnification lock: Yes
- Dimensions: 11.9cm (L) x 3.3cm (H)
- Weight: 110g
- Cable length: 1.8m
Features
- Special feature: Flexible LED Control (FLC)
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: Yes
Information
- Warranty information: 2 years European warranty
- Regulatory approval: CE, FCC, ROHS
Working distance/ field of view/ depth of field:
| Magnification Rate | Working Distance* | Field of View(x) | Field of View(y) | Depth of Field |
|---|---|---|---|---|
| Listed values may differ slightly | *Without front cap | Unit = mm | ||
| 10 | 234.5 | 39 | 31.2 | 12.0 |
| 20 | 112.5 | 19.5 | 15.6 | 4.5 |
| 30 | 72.5 | 13.0 | 10.4 | 3.1 |
| 40 | 54.5 | 9.8 | 7.8 | 1.8 |
| 50 | 43.5 | 7.8 | 6.2 | 1.2 |
| 60 | 37.5 | 6.5 | 5.2 | 0.9 |
| 70 | 33.7 | 5.6 | 4.5 | 0.6 |
| 80 | 31.3 | 4.9 | 3.9 | 0.5 |
| 90 | 29.9 | 4.3 | 3.5 | 0.37 |
| 100 | 29.2 | 3.9 | 3.1 | 0.28 |
| 110 | 29.1 | 3.6 | 2.8 | 0.22 |
| 120 | 29.3 | 3.3 | 2.6 | 0.17 |
| 130 | 29.8 | 3.0 | 2.4 | 0.12 |
| 140 | 30.5 | 2.8 | 2.2 | 0.09 |
**Dino-Lite USB 3.0 models use a custom USB cable that is specifically designed for Dino-Lite
