504221

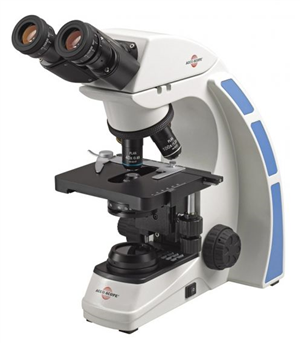

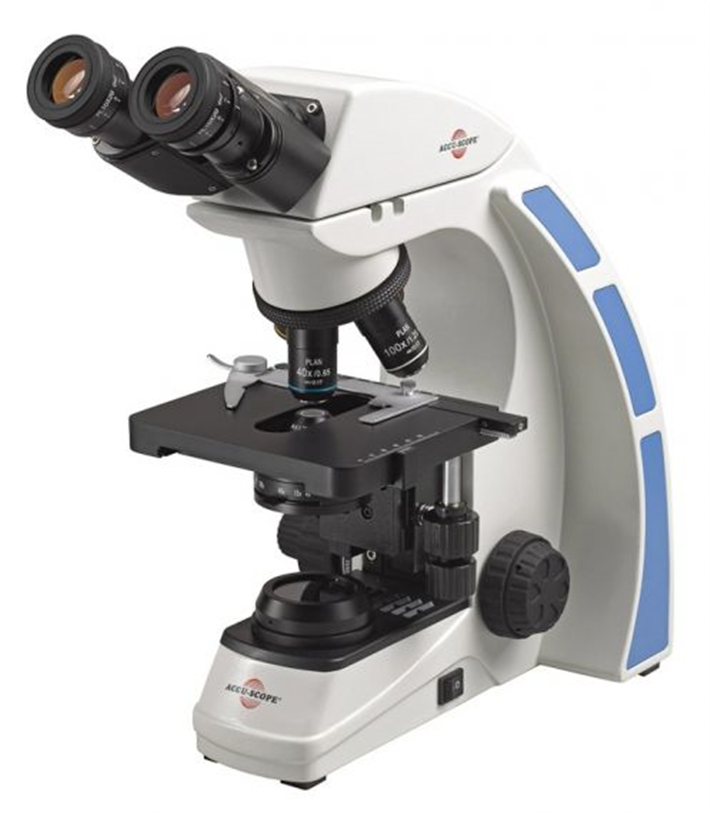

LED Illluminated Binocular Microscope, infinity plan achromat
Superb optics, durable and high performance microscopes
- Binocular
- Infinity plan achromat optics
- 20 mm FOV
- 3W LED illuminator
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 1 images available to view - click to enlarge and scroll through the product gallery.
Camera to Microscope chart
/ Download as PDF
Benefits
- Super bright LED illuminator
Applications
- Student laboratories
- Life science research
The ACCU-SCOPE® 3000-LED Microscope Series delivers outstanding optical performance, value and resolution to meet the exacting standards of life science professionals and students. With a newly designed infinity plan optical system, a best-in-class 20 mm field of view and a super-bright 3-watt LED illuminator, the 3000-LED Series provides high contrast images with outstanding resolution, precision design and enhanced illumination.
Specifications
| Optical System | Infinity Optical System, f=180mm, Anti-Mold |
| Viewing Head | Siedentopf type, inclined 30°; interpupillary distance adjustment 48-75mm, 360° rotatable; available in binocular or trinocular configurations |
| Eyepieces | HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent classroom tampering |
| Nosepiece | Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration |
| Stage | Stage size 140mm X 132mm with X-Y movement range of 76mm X 50 mm |
| Condenser | N.A. 1.25 Abbe condenser (with slot for sliders) on a rack and pinion with iris diaphragm; glass lens in condensing system protects iris diaphragm from classroom tampering |
| Focusing System | Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Illumination | 3 watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use |
| Accessories | Dust cover, immersion oil and instruction manual, universal power supply 110v-240v |
| Stand | Cast alloy aluminum; coaxial coarse and fine focusing controls. Physical Weight: 16lbs. Microscope Dimensions (LWH): 387mm x 196mm x 391mm |
| Digital Imaging | AU Series CCD and CMOS Cameras and image analysis software, Micrometrics® CCD and CMOS Cameras and image analysis software |
| Eyepieces | HWF15x/16mm field of view with built-in diopter (accepts 20mm reticle) HWF20x/12.5mm field of view eyepiece with built-in diopter (does not accept a reticle) |
| Objectives | Infinity plan achromat 20x, 50xR* oil and 60xR*; 10x, 20x, 40xR* or 100xR* Infinity Plan Phase objectives |
| Phase Contrast | Phase sliders for 10x/BF/40x and 20x/BF/100x; Darkfield sliders; Simple polarizer/analyzer |
| Miscellaneous | Optional cord hanger, field diaphragm and carry case, Darkfield slider (4x – 40x), Simple polarizer/analyzer |
| Warranty | 5-year limited warranty for parts, labor and electronic components; LED bulb warranteed for 1 year |
| Dimensions | 15.25 × 7.75 × 15.4 in. (387 × 196 × 391 mm) |
| Weight | 16 lb (7.26 kg) |
