504220

504220

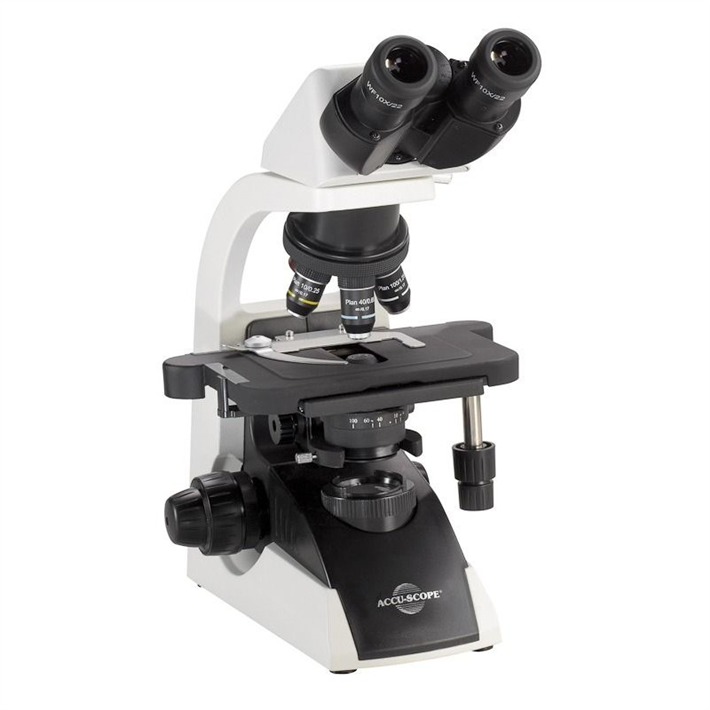

Binocular Microscope, plan achromat objectives-LED



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

There are 1 images available to view - click to enlarge and scroll through the product gallery.

The 504220 Series features E-Plan Achromat Infinity objectives which are renowned for crisp, high contrast images with outstanding resolution.

Modular in design, the 504220 boasts options for entry level fluorescence applications, phase contrast, darkfield and simple polarization.

With 22mm field of view eyepieces and an eyepoint height that is adjustable, it can be raised 35mm by rotating the eyepiece tubes up 180° to accommodate the needs of various users.

The Infinity E-plan objectives provide users with best in class high resolution, high contrast objectives. Objectives are available in plan achromat and plan phase configurations.

The rackless, scratch resistant rectangular stage has low-positioned X-Y coaxial controls.

A clinical level microscope for routine applications in medical, veterinary and university labs.

Specifications

Optical System Infinity Optical System, f = 200 mm, Anti-mold
Viewing Head Binocular, siedentopf type, inclination 30°, lnterpupillary distance 47-75 mm, 360° rotatable
Eyepiece Tubes  Eyepoint height is adjustable and can be raised 35mm when the interpupillary distance is 64 mm by rotating the eyepiece tubes up 180° to accommodate the needs of various users.
Eyepieces WF10x eyepiece, 22 mm field of view with built-in diopter adjustment and reticle holder. Eyepiece accepts 26.5 mm reticle.
Nosepiece Quintuple, reversed type with positive click stops
Stage ackless, scratch resistant rectangular stage, 188 x 150 mm surface area with 78 x 54 mm cross travel using low-postioned X-Y coaxial control knobs
Condenser N.A. 1.25 Abbe Condenser with aperture diaphragm and position guide markings for each objective and filter holder
Focusing Mechanism  Coaxial coarse and fine focus mechanism. Fine focus sensitivity 0.2 mm
Objectives E Plan Achromat 4x N.A. 0.10, 10x N.A. 0.25, 40xR N.A. 0.65, 1 00xR oil N.A. 1.25
Illumination 5 watt LED (20,000 hour rated life) variable, an optional field diaphragm is available
Filters Blue filter (optional)
Stand Cast alloy aluminum with built-in carrying handle and removable lamp house for easy bulb replacement. Physical weight: 7.5 Kg
Dimensions Microscope Dimensions (LWH): 10" 9.25" x 16.75". Physical Weight: 7.5 Kg
