502007

502007

Articulated Arm and Table Clamp without focus mount, requires 502009 focus mount for PZMIV and PZMIII series.



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

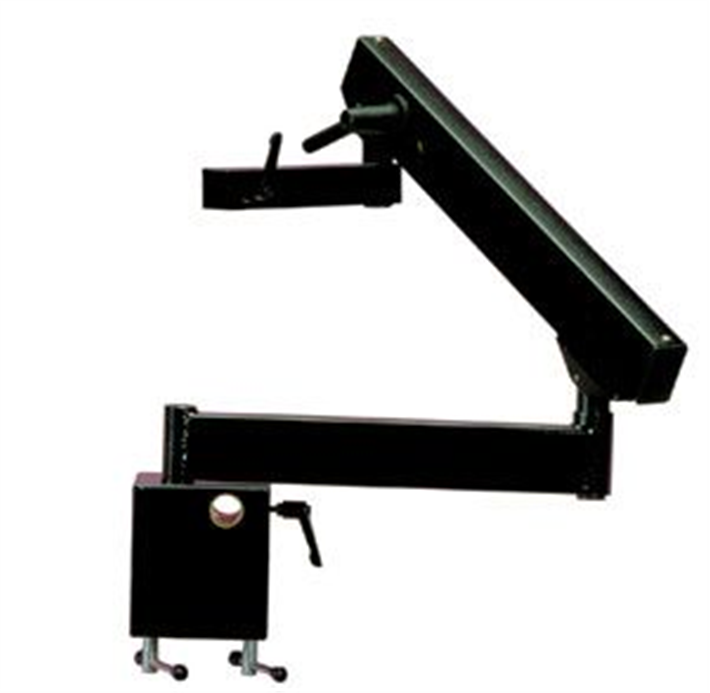

articulated_arm 502007

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Instruction Manual
/ Download as PDF

Articulated Arm and Table Clamp without focus mount, requires 502009 focus mount for PZMIV and PZMIII series. Clamp opens to 50mm, Articulation range 46cm (18”), Arm lengths L-R 23, 40, 30cm (9”, 16”, 12”) +37cm (+13.25”) –12cm (– 4.3/4”). Shipping Weight: 21 lb.

Features

  • Articulated Arm Table Mount w/o Focus Mount
  • Requires 502009 focus mount (sold separately) for PZMIII
  • Not recommended for PZMIV

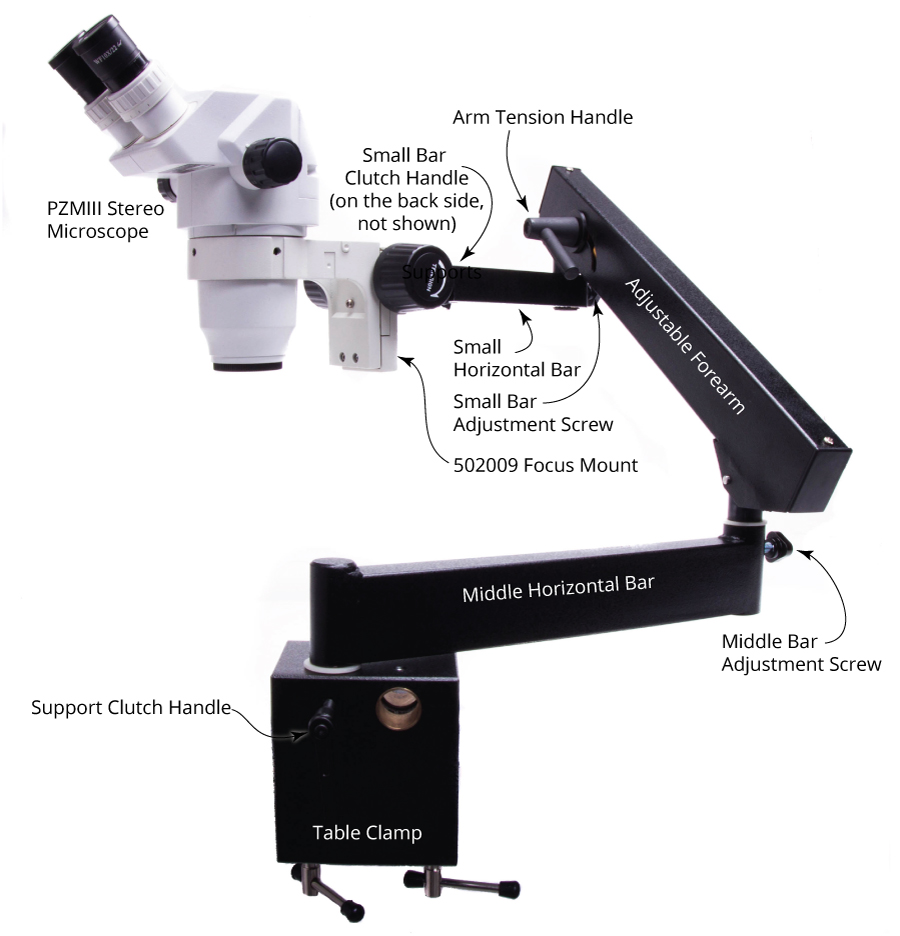

Details

  • Between the small horizontal bar and the adjustable forearm
  • Between the adjustable forearm and the middle horizontal bar
  • Between the middle horizontal bar and the table clamp

Requirements

  • Clamp opens to 50mm, Articulation range 46cm (18”), Arm lengths L-R 23, 40, 30cm (9”, 16”, 12”) +37cm (+13.25”) –12cm (– 4.3/4”). Shipping Weight: 21 lb.
