Overview

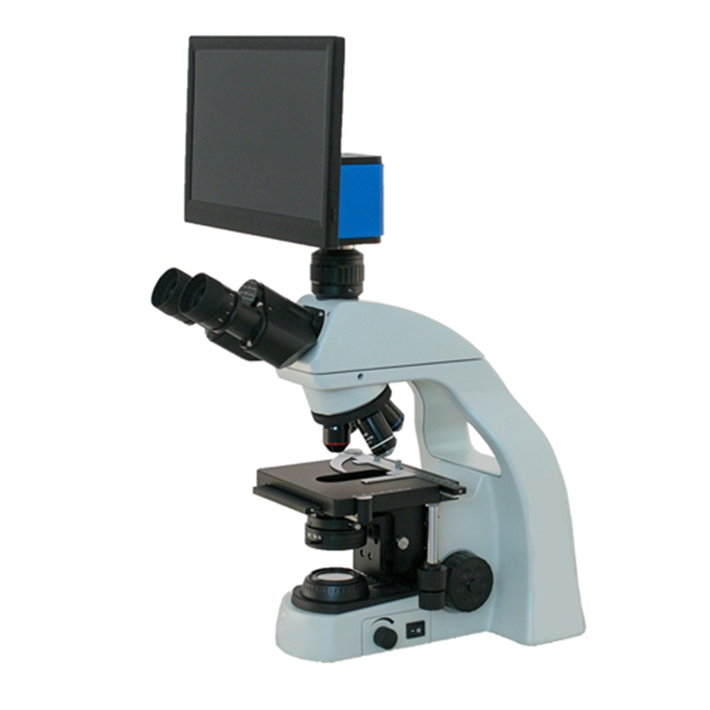

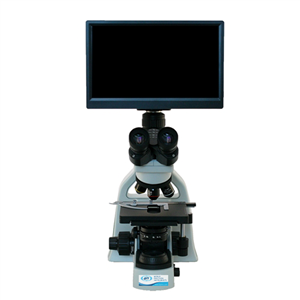

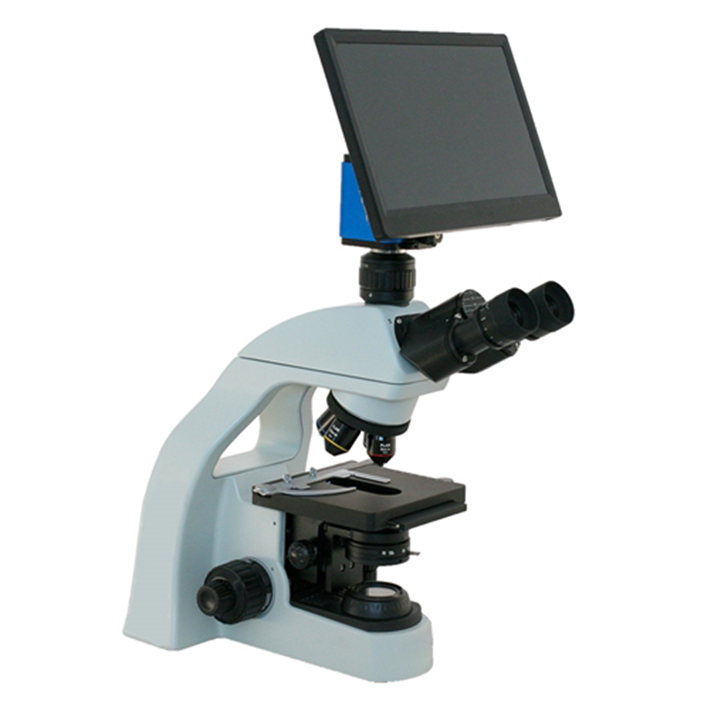

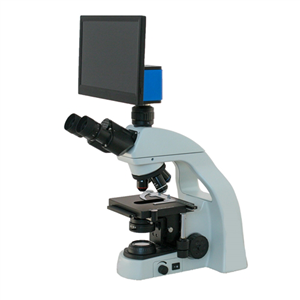

WPI's newest microscope addition: A digital LCD high power laboratory biological microscope that offers high quality optics at an affordable price point.

The included HD camera has a 13" monitor for viewing live images with embedded software. Perfect for any fixed-tissue analysis!

• Objective Lenses: Infinity Corrected DIN Plan Achromat 4x, 10x, 40xR, 100xR (oil immersion) objectives. All microscope objectives are parfocalled, parcentered and color-coded. Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives, features textured rubber knurling for easy grip. Mounted in reverse position to facilitate ease in changing slides
• Eyepieces: Widefield High Eyepoint Focusing 10x eyepieces / FN 20mm. Trinocular Siedentopf viewing head with 30° inclined binocular eyepiece with interpupillary adjustment 47mm to 75mm. Vertical trinocular tube for camera integration
• Total Magnification: 40x, 100x, 400x, 1000x
• Specimen Stage: Large 150mm x 140mm stage with professional quality, built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls, 78mm (x) by 50mm (y) movement with graduations of 0.1mm. 1.25 N.A. Abbe condenser has rack & pinion focusing and iris diaphragm
• Focusing: Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated. Locking position for stage
• Illumination: Fixed Koehler illuminator, 3W LED with variable rheostat control and on/off switch. 110~240V power supply
• Camera / LCD HD Monitor: HD 1080p camera, live resolution 1920x1080 pixels. 2mp image capture to USB flash drive (flash drive not included). Live image 1080p / 60 fps. HDMI connection to 13" HD monitor. Camera controls for exposure, gain, white balance, color adjustment, sharpness. Includes mouse for on-screen controls. 13" 1080p LCD HDMI monitor features an LED backlight. The monitor mounts directly to the HD camera and includes 110~240v power cord and HDMI cable
• Cord and Accessory Storage: Storage compartment located on the back of the microscope frame to store power cord and microscope accessories when not in use

The triangular design of the microscope body ensures stability and reduces the chance for vibration while viewing samples. The handle on the back of the microscope body encourages safe transportation of the microscope.

A large storage compartment located on the back of the microscope allows for the power cord and other microscope accessories to be securely stored when not in use to keep the working environment neat and tidy. This is a great feature when storing microscopes in cabinets or on carts.

Specifications

Optical System	Infinity Color Corrected Optical System
Viewing Head	30° inclined Siedentopf trinocular head. Interpupillary distance adjustable 47~75mm.
Eyepieces	Pair of WF10x widefield eyepieces, FN20
Objective Lenses	Plan Achromat 4x, NA 0.10 Plan Achromat 10x, NA 0.25 Plan Achromat 40x, NA 0.65, spring loaded Plan Achromat 100x oil, NA 1.25, spring loaded
Nosepiece	Revolving quadruple nosepiece
Focus Adjustment	Coaxial coarse and fine focusing adjustment with rack and pinion mechanism. Fine focusing scale 0.002mm
Body	Automatic voltage sensing power supply 110v~240v, removable power cord
Stage	150mm x 140mm mechanical stage with low-position controls. Movement range of 76 x 50mm, precision 0.1mm
Condenser	N.A. 1.25 fixed Koehler illuminator condenser with slot for phase contrast or darkfield slider
Illumination	3W LED illuminator with rheostat control. 100V~240V
Simple Phase Contrast	Phase centering telescope, Plan phase contrast PH40x/0.65 objective, Phase slider, and Phase centering screws
Filters	Microscope accepts 45mm diameter filters
Size & Weight	9" W x 15.5" D x 14" H, 9 kg
