505842

Overview

There are 4 images available to view - click to enlarge and scroll through the product gallery.

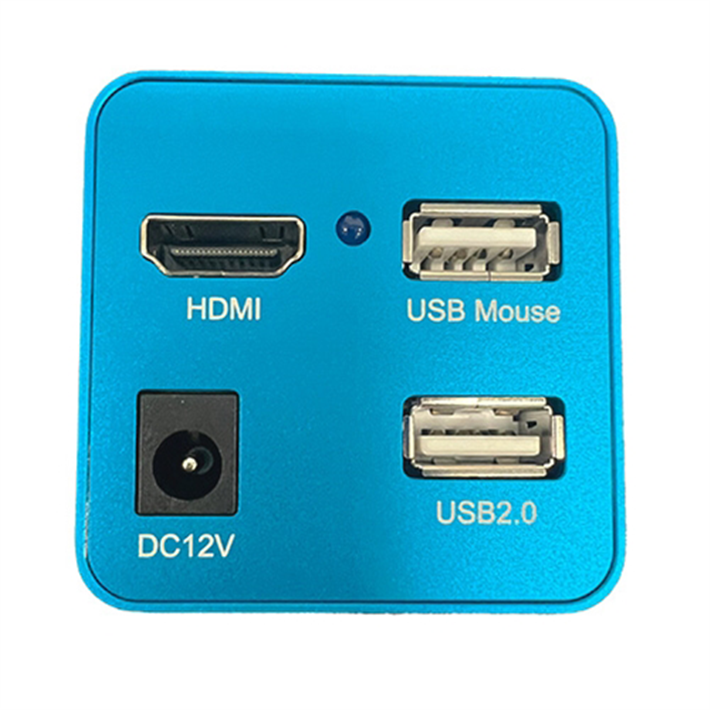

This 4K Microscope HD 1080p camera offering scientific-grade image processing. The all-in-one camera is attached to a 13" HD monitor, and features HDMI connectivity, an SD card, and USB ports to easily save and transfer image stills and recordings.


Easily capture and record with this HD camera with embedded software. The software allows for:

• Adjustment of contrast, gain, exposure, brightness, sharpness, de-noise, white balance, saturation, exposure compensation


• Image compare: view a captured image and compare directly with another


• Playback


• Vertical and horizontal flipping of the live image


• Create gridding overlays


• Take measurements


• Digital zoom

Specifications

High Definition Camera Specifications:

• Direct output to HDMI Screen for viewing live images via USB Mouse (included).


• 1/2.8" (5.57 x 3.13mm) CMOS Sony IMX307(C) sensor.


• Pixels 2.9x2.9 µm


• 60 frames per second at 1920 x 1080 HDMI.


• Binning 1x1


• Image capture to USB2.0 flash drive (flash drive is not included).


• Camera control panel for exposure, gain, white balance, color, sharpness and noise control.


• Includes on-screen monitor toolbar for for image capture, measurements, digital zoom in/out, horizontal flip, vertical flip, video freeze, display/hide camera control panel.


• C-mount connection to your microscope.

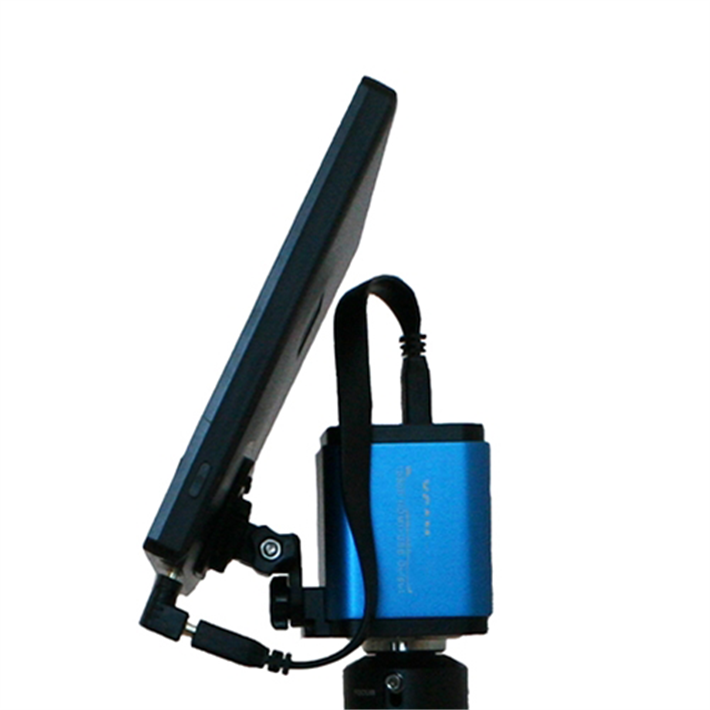

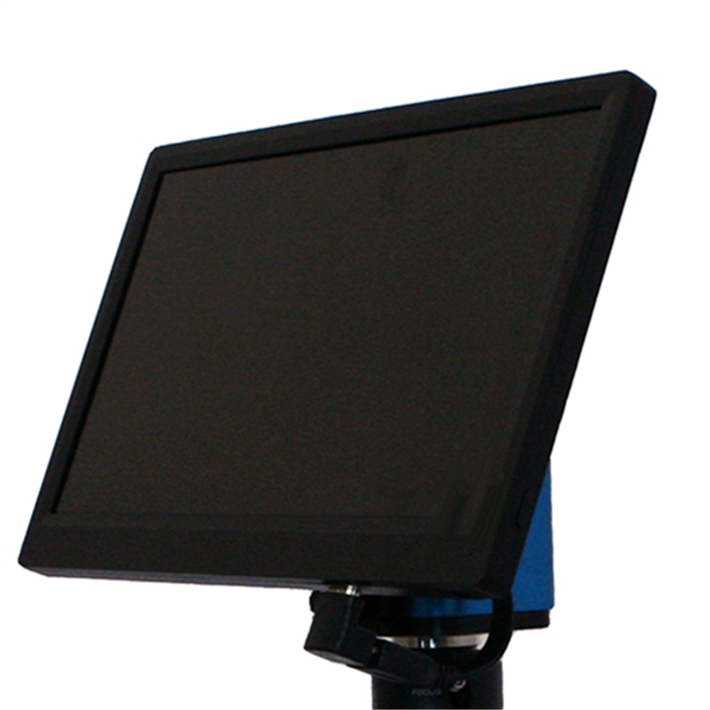

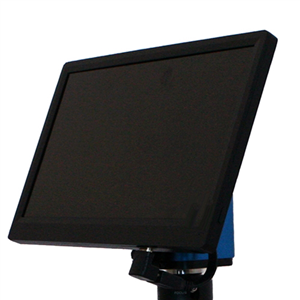

• 13" LCD HDMI monitor, true 1080P. LED backlight. Monitor mounts directly to HD camera.


• Size & Weight: 1.97" x 1.97" x 2.4", 0.55lb.


• Includes: Camera, Power Adapter 100~240V, HDMI Cable, USB Mouse.


• Warranty: 1 Year Warranty
