MPC-145

Overview

There are 1 images available to view - click to enlarge and scroll through the product gallery.

MPC-100 Brochure
/ Download as PDF

MPC-145 Quick reference
/ Download as PDF

MPC-145 Instruction manual
/ Download as PDF

MP-845 Technical Drawing
/ Download as PDF

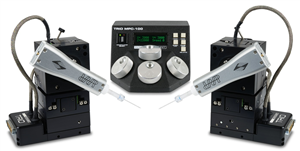

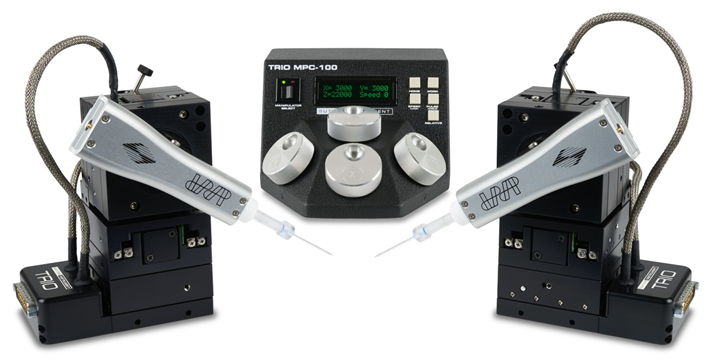

The MPC-145 System consists of the MPC-100 controller and an MP-845 micromanipulator.

The new MP-845 micromanipulator features construction based on the lead screw design of the TRIO-245, but with the addition of precision cross-roller bearings for even tighter tolerances. A 25 pin connector insures future compatibility with our other controllers. Available in aluminum or stainless steel (see Stainless MP-845 tab above) the MP-845 is a highly stable 3-axis manipulator with 25 mm of travel on each axis. The TRIO MPC-100 controller gives the MP-845 a synthetic 4th axis that can be set in software to any angle between 0 and 90 degrees for diagonal movement. Based on a lead-screw design with a smaller overall size and footprint than most manipulators, the MP-845 is ideal for applications that require 2 pipettes in one setup or for setups where space is limited.

The compact design of the integrated Rotary Optical Encoder (ROE) controller requires minimal bench space; provides quiet, fan-free operation; and is easy to use. No rack mounted controller is required. Position coordinates, in relative or absolute values, are displayed directly on the ROE. The TRIO MPC-100 uses a logarithmic acceleration algorithm that eliminates the need for speed selection. As the knobs on the ROE are turned faster, acceleration ramps up. This allows for smooth and intuitive motion control of electrode position without the need to stop and change speeds or lift your hand from the controller. When not moving, the motors are powered down, reducing electrical noise in the system to unmeasurable levels which keeps the motors cool to eliminate thermal drift.

Five conveniently located buttons control all the functions you will need in normal operation. Press and hold the [WORK] button to quickly store a work position; pressing [WORK] after this will return the manipulator to the same location. [HOME] sends the manipulator to a second position, often set for a point furthest from the microscope, which is useful for rapid pipette exchange. Pressing [SPEED] allows the selection of one of 4 speed ranges. With practice, there is no need to ever change speeds, however, we have included three low speed ranges for those who work at very high magnification. Holding [SPEED] for three-seconds will lock the knobs out, to prevent accidental movement. Display coordinates can toggle between relative and absolute by pressing the [RELATIVE] button; holding the button down will zero the relative coordinates. Finally, [PULSE] activates a pulse movement mode that produces small, rapid bursts of motion that can be advantageous for cell penetration with sharp electrodes. Hold [PULSE] for three-seconds to set or modify the 4th axis angle between 0 and 90 degrees.

Designed with maximum flexibility in mind, a DIP switch on the controller changes the directional movement of the ROE knobs to accommodate the preference of the user. A Y-axis lockout function (accessible by DIP switch) is also available, allowing X/Z-only axial movement during HOME and WORK repositioning. The TRIO comes standard with a universal mounting system suitable for the most popular headstages or pipette holders.

FEATURES: TRIO MPC-100 ControllerControls one or two manipulators

• Sub-micron (less than 100 nm) resolution
• User selectable angle from 0 - 90 degrees via ROE input
• Fast movement with a top speed of 3 mm/sec (while homing)
• Compact, fanless, user-friendly ROE controller preserves bench and rack space
• Push button control of multiple functions - WORK, HOME, LOCK, PULSE and RELATIVE
• DIP switches on ROE select direction of movement produced by turn of ROE knob
• USB interface for computer control

FEATURES: MP-845 MechanicalNow also available in thermally stable stainless steel (See tab above)

• Mechanically robust construction for high stability
• Precision cross-roller bearings
• Three independent axes - 25 mm orthogonal travel in X, Y and Z
• Carries up to a kilogram
• Suited for in vitro and in vivo electrophysiological recording
• Universal mounting system for headstage or pipette holder

Specifications

TECHNICAL SPECIFICATIONS

Travel

MP-845 / MP-845S: 25 mm on X, Y and Z axes

Long Term Stability

< 0.5 micron in 24 hours (aluminum)
< 0.05 micron in 24 hours (stainless steel)

TRIO MPC-100 Control Box

6.25 in x 8 in x 5.9 in | 15.9 cm x 20.3 cm x 10.2 cm
Manipulator Weight
MP-845 (aluminum)
3.5 lbs | 1.6 kg

MP-845S (stainless steel)
7.7 lbs | 3.5 kg

TRIO MPC-100 Controller
2.3 lbs | 1.04 kg

Electrical

115/230 Volts
50/60 Hertz power line
