MM3-ALL
Complete 3-Axis Mini Micromanipulator and Magnetic Base
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 2 images available to view - click to enlarge and scroll through the product gallery.
Instruction Manual
/ Download as PDF
Manipulator Care
/ Download as PDF
- Opens 0-7mm
Details

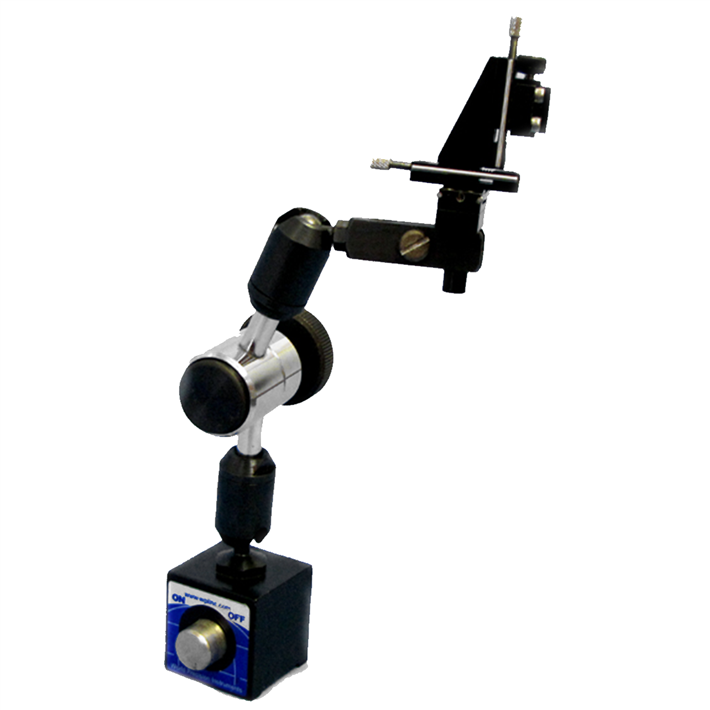

Kit includes one each MM3-3 (Miniature Micropositioner - Three Axes), MM3-A (Adapter for MM3 or MM3-3), MM3-C (Clamp for MM3 and MM3-3), and MB2 (Magnetic Base)
Specifications
| Travel | 0.5" (12.7mm) |
| Runout (maximum) | 1.5μm |
| Return Force ext.-comp. | 6-20oz. (170-56g) |
| Weight | 16g |
| Screw Pitch | 80TPI |
| Screw Pitch | 0 (no ball bearings) |
| Sensitivity | 0.5μm |
| Wobble (maximum) | 0.01 lmrad |
| Thermal Stabilty | 15°-75°C |
| Load Capacity | |
| Direct top or side load | 0.34kg |
| Push | 1kg |
| Retract ext-comp | See return force as specified above |
| Tilt | 6 in-oz (420g-cm) |
| Twist | 3 in-oz (210g-cm) |

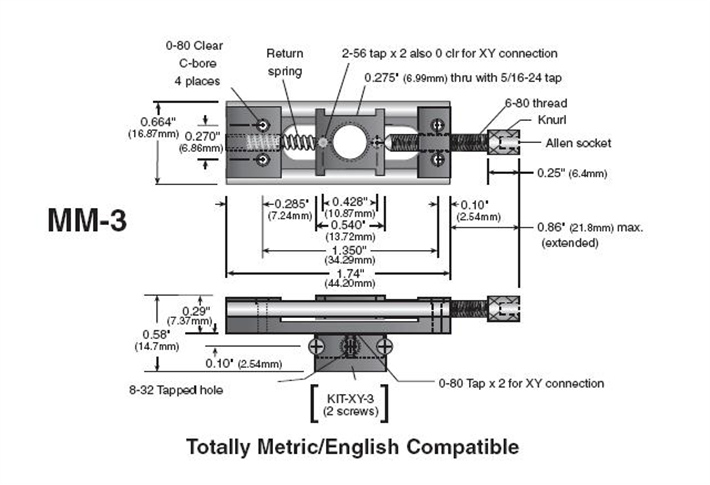

| Dimensions (not including lead screw extension) | 17.4 x 0.66 x 0.29" (44.2 x 16.8 x 7.4mm) |
