MM1
Miniature Micropositioner - Single Axis
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview

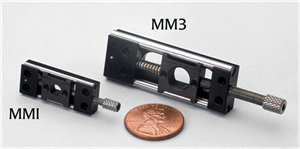

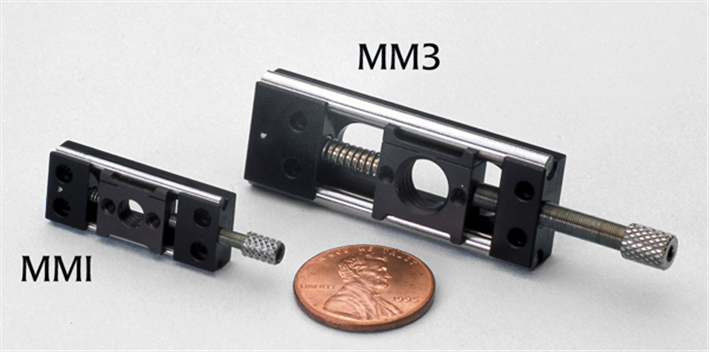

There are 2 images available to view - click to enlarge and scroll through the product gallery.
Manipulator Care
/ Download as PDF
- 3 mm travel
- Precise and smooth motion
- Less than 1 micron maximum wobble
Features

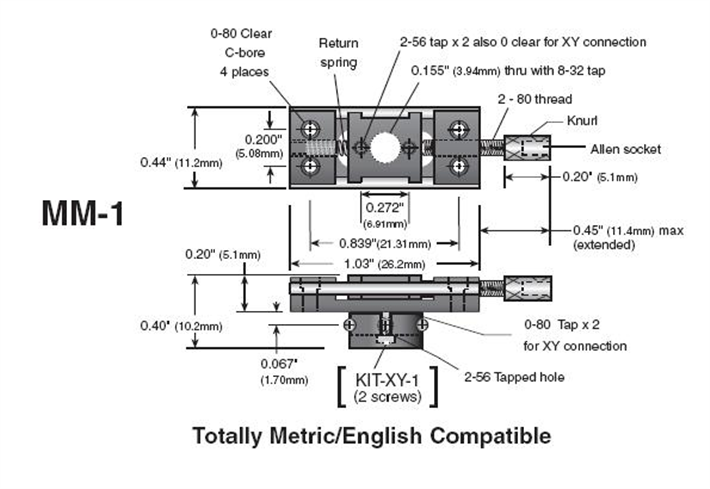

Single stage measures only 5 x 11 x 26 mm with 3 mm travel. Provides precise and smooth motion with no backlash, positive spring loaded carriage, straight within 1 micron and less than 1 micron maximum wobble. Features fine 80 TPI screw adjustment. 10 mm square mounting surface has a 3.9 mm tapped center hole for transmission and/or mounting. Single X axis.
Specifications
| Travel | 3.175mm |
| Runout (maximum) | 1.0μm |
| Reutrn Force ext.-comp. | 113-312g |
| Weight | 3g |
| Screw Pitch | 80TPI |
| Backlash | 0 (no ball bearings) |
| Sensitivity | 0.5μm |
| Wobble (maximum) | 10μrad (2 arc sec) (no ball bearings) |
| Thermal Stabilty | 15°-75°C |
| Load Capacity | |
| Direct top or side load | 0.25kg |
| Push | 0.5kg |
| Retract ext-comp | See return force as specified above |
| Tilt | 3 in-oz (210g-cm) |
| Twist | 1.5 in-oz (105g-cm) |
| Dimensions (not including lead screw extension) | -X Single Stage: 26.2 x 11.2 x 5.1mm -XY (2-axis): 26.2 x 26.2 x 10.2mm -XYZ (3-axis): 26.2 x 26.2 x 36.3mm |
