MM1-ALL
Complete 3-Axis Mini Micromanipulator and Magnetic Base
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 2 images available to view - click to enlarge and scroll through the product gallery.
MM1-ALL Instruction Manual
/ Download as PDF
Manipulator Care
/ Download as PDF
- Opens 0-4mm

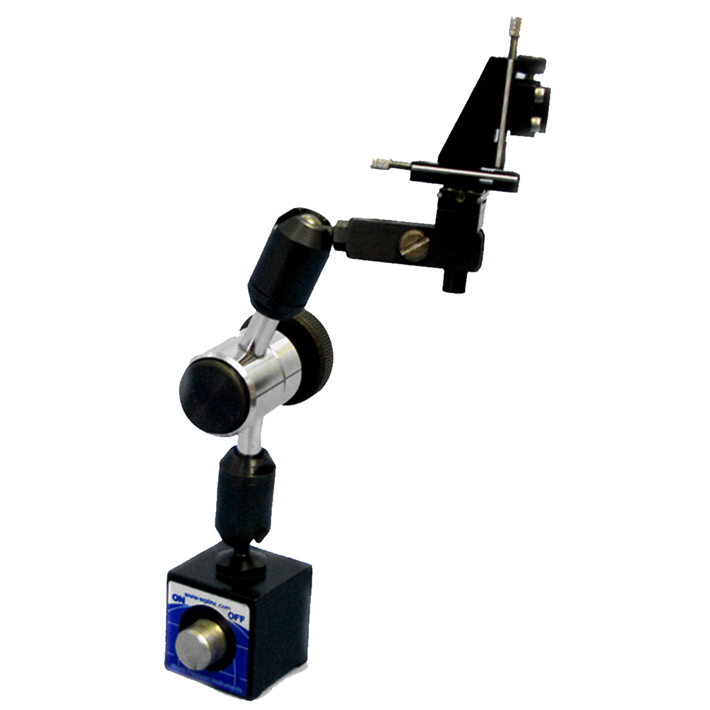

- Image shows MM3-ALL, which is larger than the MM1-ALL
Features
Kit includes one each MM1-3 (Miniature Micropositioner - Three Axes), MM1-A (Adapter for MM1 or MM1-3), MM1-C (Clamp for MM1 and MM1-3), and MB2 (Magnetic Base)

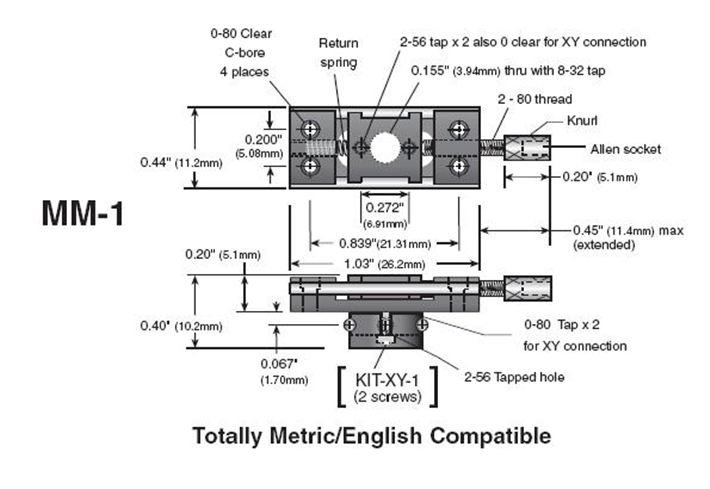

Specifications
| Travel | 3.175mm |
| Runout (maximum) | 1.0μm |
| Return Force ext.-comp. | 113-312g |
| Weight | 10g |
| Screw Pitch | 80TPI |
| Backlash | 0 (no ball bearings) |
| Sensitivity | 0.5μm |
| Wobble (maximum) | 10μrad (2 arc sec) (no ball bearings) |
| Thermal Stabilty | 15°-75°C |
| Load Capacity | |
| Direct top or side load | 0.25kg |
| Push | 0.5kg |
| Retract ext-comp | see return force as specified above |
| Tilt | 3 in-oz (210g-cm) |
| Twist | 1.5 in-oz (105g-cm) |
| Dimensions (not including lead screw extension) | XYZ (3-axis): 26.2 x 26.2 x 36.3mm |
