M3301-M3-R

M3301-M3-R

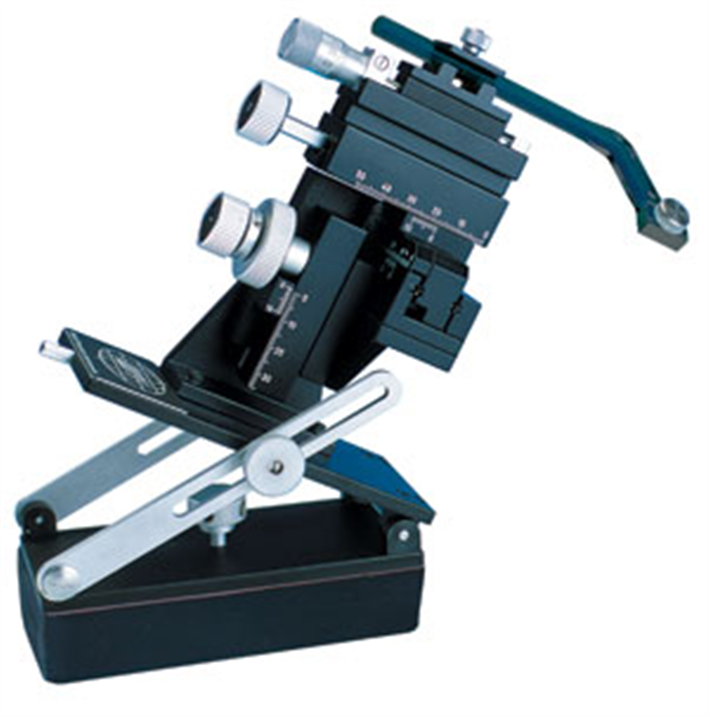

Manual Micromanipulator & Tilting Base (right-handed)


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

M3301-M3-R

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Manipulator Care
/ Download as PDF

M3301 Drift adjustment sheet
/ Download as PDF

  • Vernier scales for readings to 0.1mm & x-axis fine control for readings to 10um
  • Control knobs project to rear; located in same vertical plane
  • Tilting base M-3 included
  • For M6 table
  • Weight #5464 not included

Combination Unit

Contains the M3301R Manipulator and the M-3 Tilting Base

The world's most widely used micromanipulator

Weighing just 550 grams and employing a slim space-saving design, this well built micromanipulator outsells all others worldwide for high precision experiments where magnification is in the range of up to 250x. Its design allows units to stand tightly grouped - since all control knobs project to the rear. And because control knobs are clustered within an 8 cm area in a single vertical plane, resolution is quick - the hand works blindly while the eye monitors the microscopic image. Vernier scales allow readings to 0.1 mm; x-axis fine control allows readings to 10 microns.

Features

The instrument employs rack-and-pinion drive, V-shaped guideways, and cross roller bearings, so all movement is sure and repeatable, without drift, sideplay, backlash, or sticking. Contact parts are milled of hardened steel for high performance and long life. Left- or right-handed versions of the M3301 are supplied with a standard 12 mm clamp (M2) and one microelectrode holder (M3301EH).

With the M-3 magnetic stand, the M3301-M3 base is 1.25" tall.

Specifications

Travel Range: X-axis Fine 10mm
Travel Range: X-axis 37mm
Travel Range: Y-axis 20mm
Travel Range: Z-axis 25mm
Resolution: X-axis Fine 0.01mm
Resolution: X-axis 0.1mm
Resolution: Y-axis 0.1mm
Resolution: Z-axis 0.1mm
Shipping Weight: 3 lbs (1.4 kg)

Accessories

Citations

L.B. Padnick, R.A. Linsemeier "Properties of the flash visual evoked potential recorded in the cat primary visual cortex" Vision Research 39. 1999: 2833-2840
