KITE-R

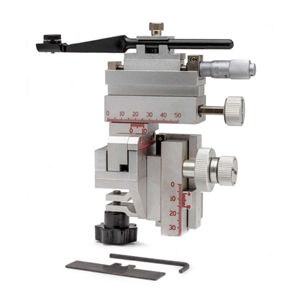

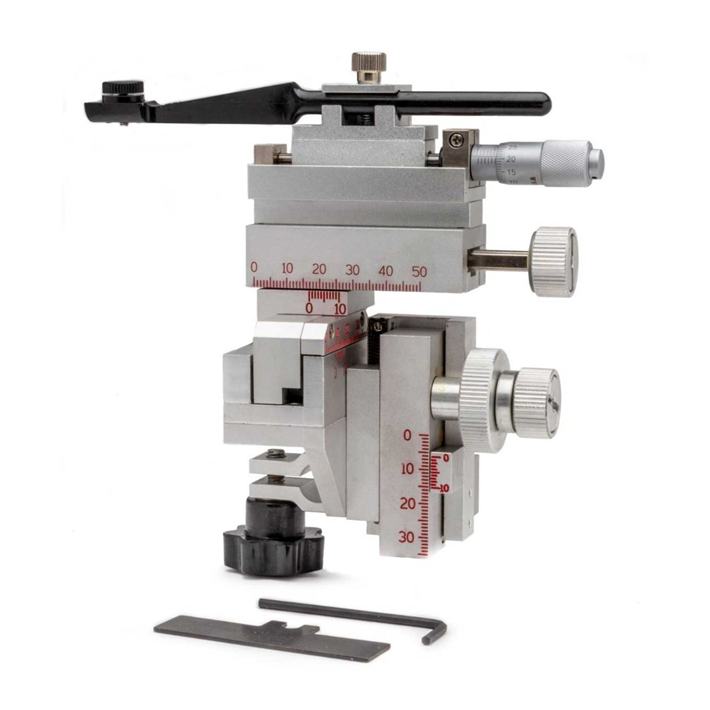

Kite Manual Micromanipulator (right-handed)
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 1 images available to view - click to enlarge and scroll through the product gallery.
KITE Instruction Manual
/ Download as PDF
- Vernier scales allow readings to 0.1mm
- x-axis fine control allows readings to 10 micrometers
Features
Vernier scales allow readings to 0.1 mm. X-axis fine control allows readings to 10 µm. Left- or right-handed versions of the KITE micromanipulator are supplied with a standard 12 mm clamp and electrode holder M3301EH.
Specifications
| Travel Range: X-axis Fine | 10mm |
| Travel Range: X-axis | 37mm |
| Travel Range: Y-axis | 20mm |
| Travel Range: Z-axis | 20mm |
| Resolution: X-axis Fine | 0.01mm |
| Resolution: X-axis | 0.1mm |
| Resolution: Y-axis | 0.1mm |
| Resolution: Z-axis | 0.1mm |
| Shipping Weight: | 3 lbs (1.4 kg) |
Accessories
Citations
S. Gelman, A. Ayali, E. Tytell, A. Cohen "Larval lampreys possess a functional lateral line system" J of Comparative Physiology 193. 2007: 271-277
