Overview
There are 1 images available to view - click to enlarge and scroll through the product gallery.
Applications
- Microinjection
- Electrophysiology
- Patch clamp
- Fluid Handling
Quality glass, superior prices for microinjection/microelectrodes
- Quality borosilicate glass capillaries
- OD: 1.5, ID: 1.02
- 6 in. (152 mm) Long
- OD/ID Tolerance: ±0.1 mm
- Length Tolerance: ±1 mm
- Recommended to use with Glass Handling Forceps (77020)
Superior Cell Impalement

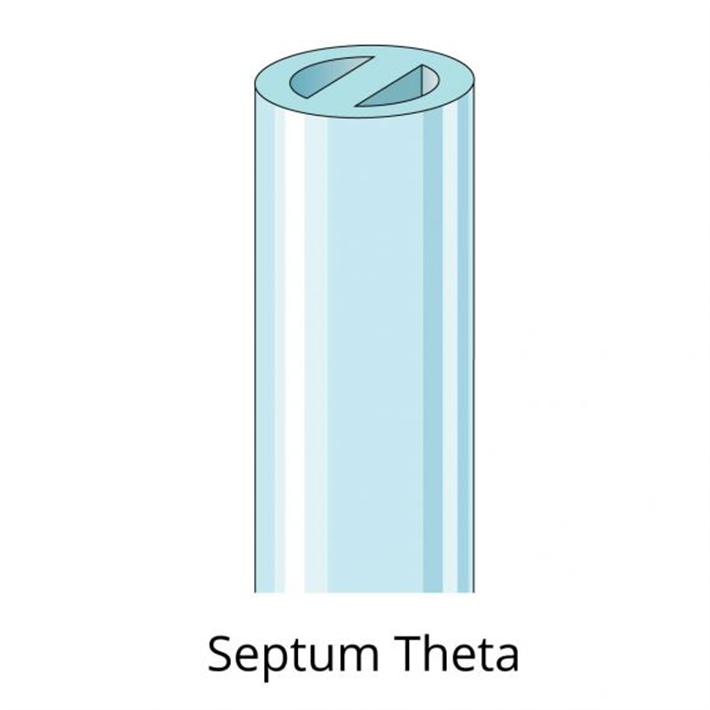

Septum Theta offers superior cell impalement. The natural bevel resulting from the prominent spear-like projection of the septum gives microelectrodes a sharp, spear-point tip. This style has low resistance for use as a single microelectrode, and it can be used to make superior double-tipped microelectrodes with low trans-tip coupling. The natural bevel of Septum Theta also significantly increases the effective tip cross-section. As supplied, the width of the septum is approximately 0.2 mm, and the wall thickness is approximately 0.2 mm.
Specifications
Special Configuration Borosilicate Glass Tubing
| Item | Description | OD/ID (mm) | Length | Quantity |
|---|---|---|---|---|
| TST150-6 | Septum Theta | 1.5/1.02 | 6 in. (152 mm) | 100 |
| PB150F-4 | Piggyback | 1.51/0.84 0.75/0.35 |
4 in. (102 mm) | 50 |
| PB150F-6 | Piggyback | 1.51/0.84 0.75/0.35 |
6 in. (152 mm) | 50 |
