502125

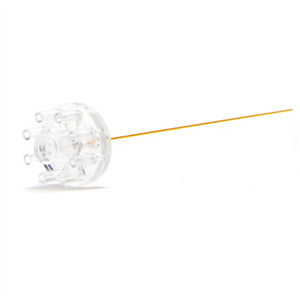

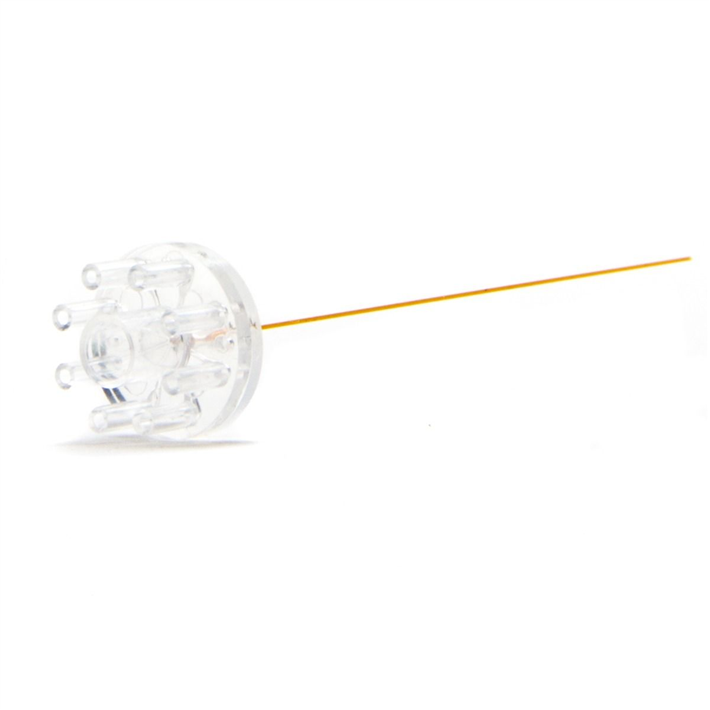

µ-manifold, 250µm ID tip

Overview
Specifications
Accessories
Citations
Related Products

Overview

There are 1 images available to view - click to enlarge and scroll through the product gallery.

MPS-2 Manual
/ Download as PDF

Micromanifold Manual
/ Download as PDF

Maximum flow rate: 500µL/min at 50cm

Unique features

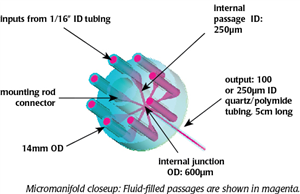

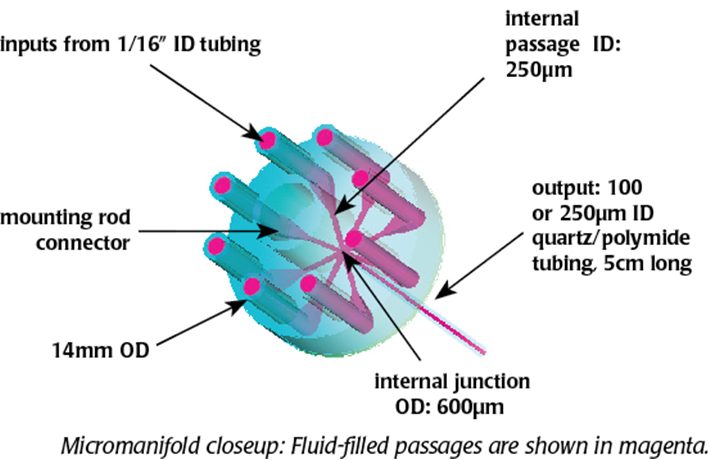

The perfusion µ-manifold is the most unique feature of the MPS-2 system. Using the latest microfluidic techniques, the injection molded µ-manifold provides the least flow resistance and dead volume of any product on the market. The flow channel inner diameter is approximately 1.0mm, except for the last 5mm before the junction point. This design allows a fast flow rate without using a pressured system. The maximum flow rate is 500µL/min at 50cm for the 15mm long 250µm ID tip. Small channels and a unique design at the merging point further reduce the chance of cross contamination. Dead volume is less than 100nL.
