AUTOLCI-BF4

AUTOLCI-BF4

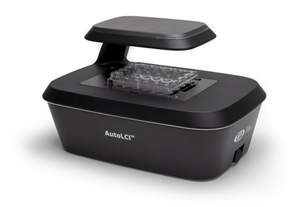

AutoLCI, Brightfield, 4X Magnification Automated Live Cell Imaging System

Objective Lens: 4X

Imaging Modes: Bright Field

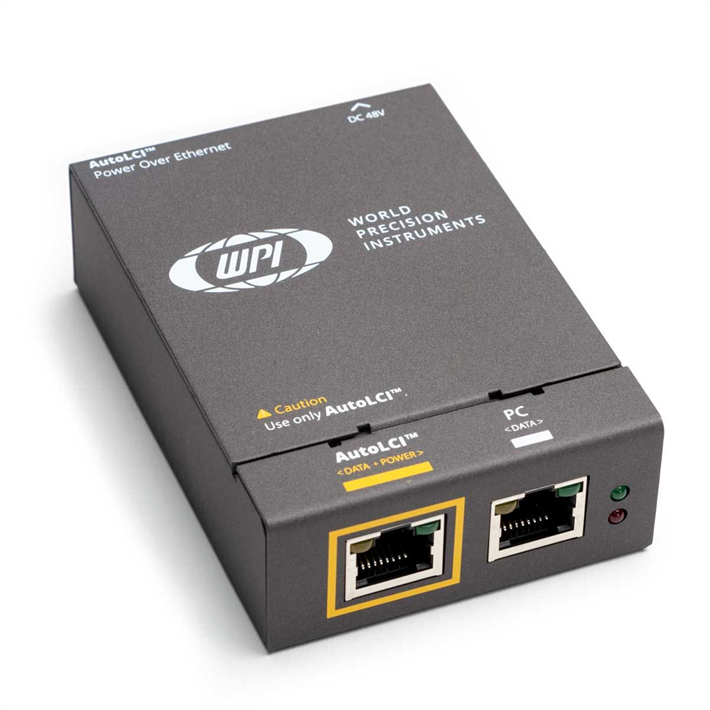

Output: Ethernet via PoE Adapter (included)

Software: AutoLCI Scan and AutoLCI Analysis (Requires Windows 10 PC/Laptop - not included)





Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

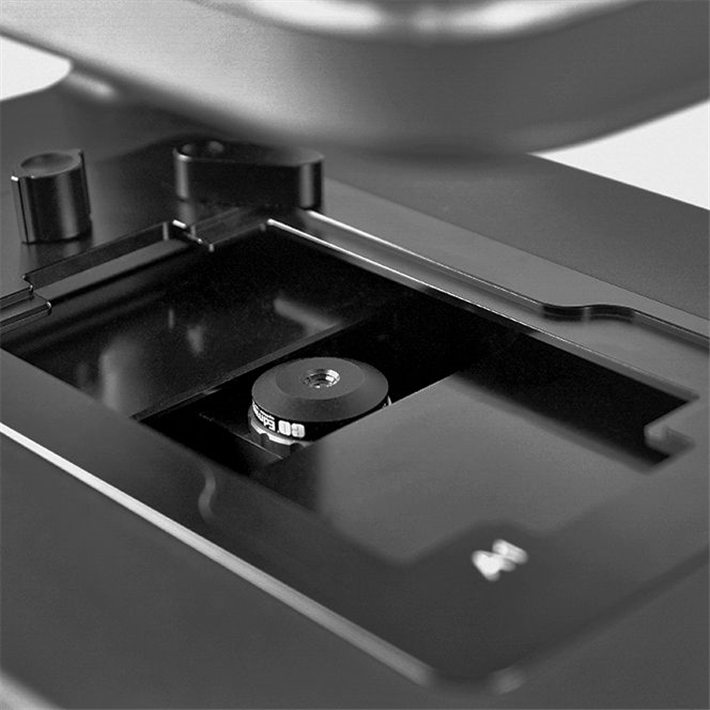

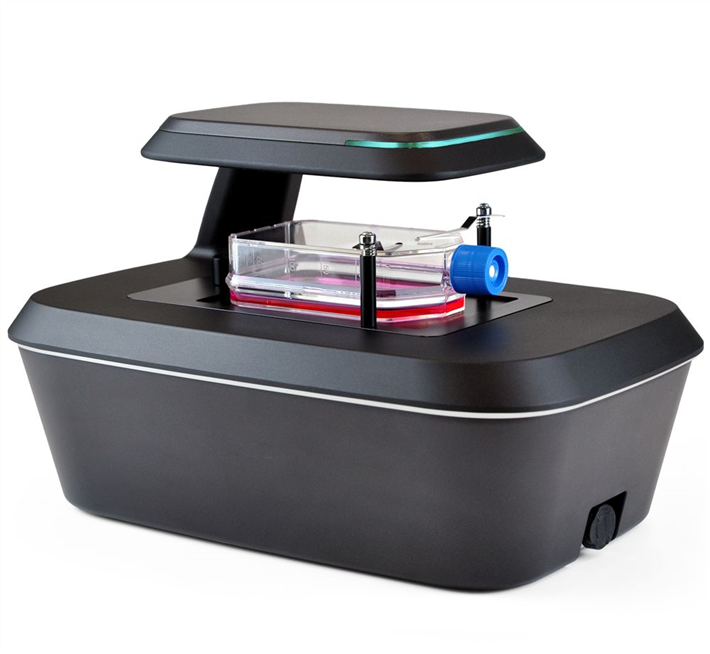

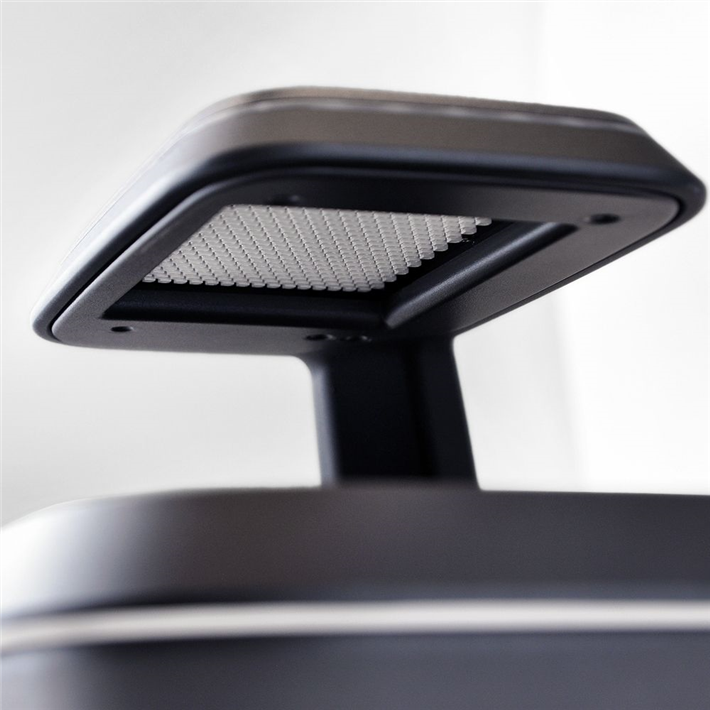

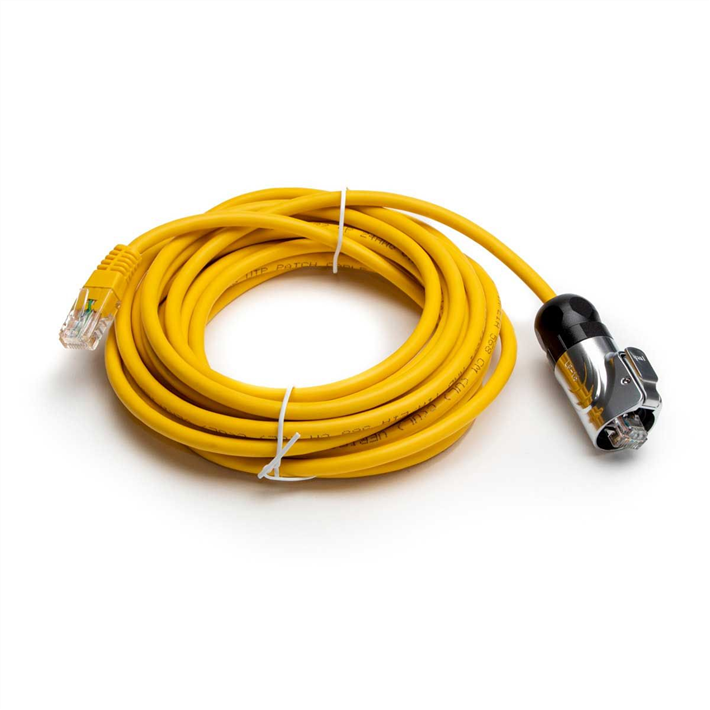

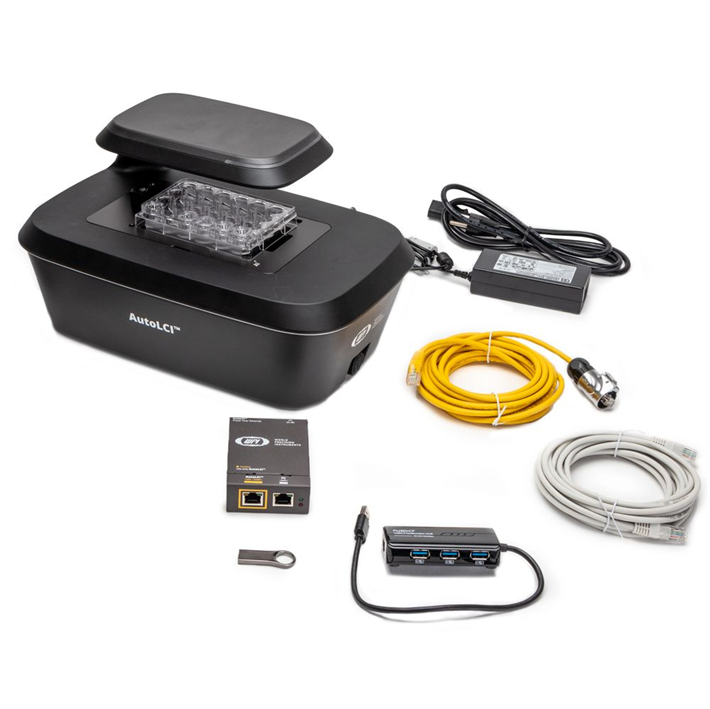

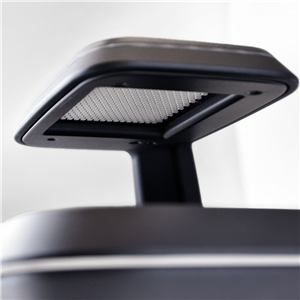

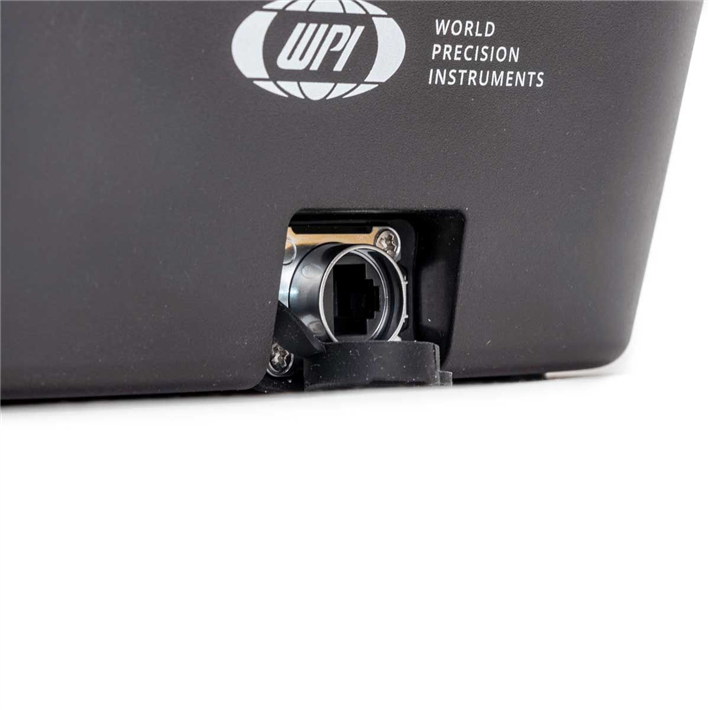

AutoLCI with plate AutoLCI with T-flask AutoLCI What's Included AutoLCI Stacked In Incubator AutoLCI In Incubator AutoLCI lens AutoLCI Light AutoLCI Ethernet Port AutoLCI PoE AutoLCI Ethernet Cable For Incubator Use

There are 10 images available to view - click to enlarge and scroll through the product gallery.

AutoLCI Brochure
/ Download as PDF

AutoLCI Instruction Manual
/ Download as PDF

Applications

  • Wound Healing Assay
  • Cell Confluency
  • Co-Culture Monitoring
  • Cell Migration
  • Cell Proliferation
  • Multi-Point Cell Monitoring
  • Cell Morphology
  • Cytoxicity Assay

Expand Your Cell Discoveries with Automated Live Cell Imaging

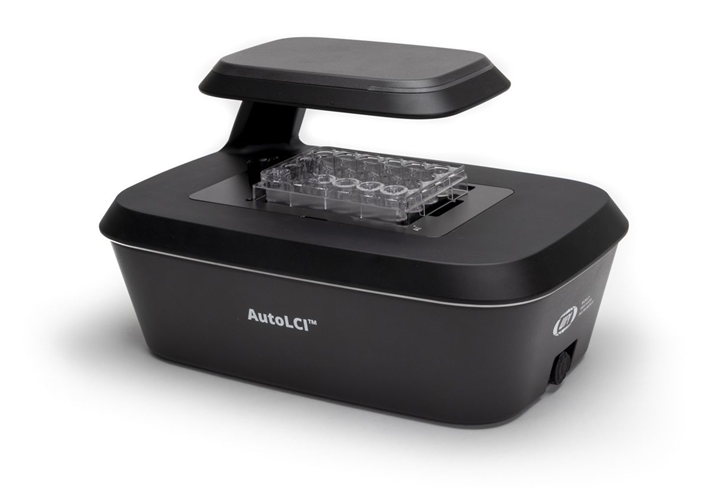

AutoLCI is an automated live cell imaging system that is equipped with an advanced fluorescence and bright field microscopy, autofocusing and real time multi-position imaging technology for a well plate, dish or T-flask.

The streamlined process provides an easy workflow solution giving you a full set of tools you need to acquire the best quality images and accurate research results.

The compact nature of the AutoLCI allows positioning in an incubator providing improved cell viability as there is less disturbances over the course of your experiment reducing chances of cellular abnormality.

The AutoLCI live cell imaging system includes two software packages

  • AutoLCI Scan to control the actual operation of AutoLCI device which includes real-time cell monitoring and time-lapse imaging functions
  • AutoLCI Analysis for analyzing and post-processing the images. This comes with an unlimited software usage license, ideal for allowing multiple users to work with the unit without additional fees



Fluorescence imaging
Bright field imaging

Compact size

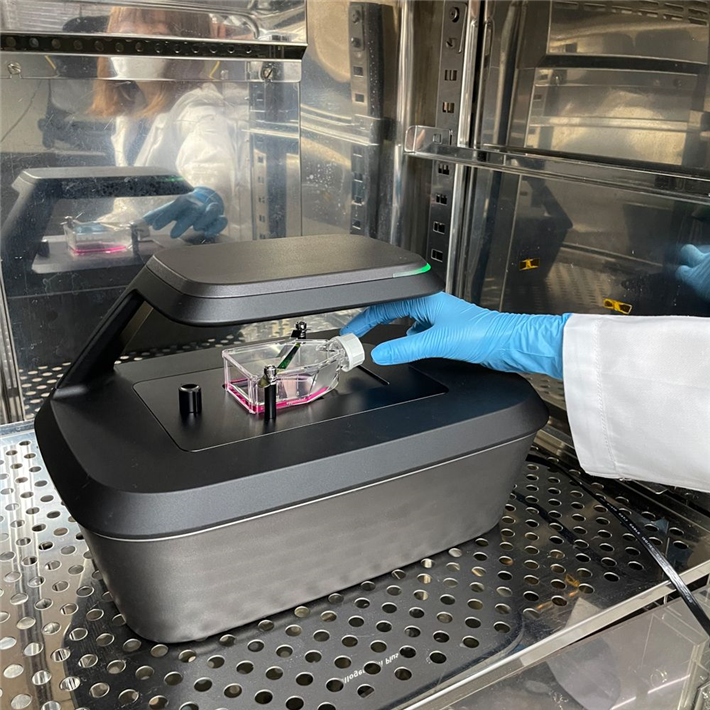

AutoLCI is a live cell imaging system that easily fits into a standard CO2 incubator

Multi-position imaging
Fully-automated, multi-position imaging for high resolution analysis with a motorized camera that allows for multi-point imaging up to 96 wells.

Autofocusing
Increased focus speed and reproducibility with reliable autofocusing function

High compatibility
Compatible with various cell culture vessel types. Well plate (6, 12, 24, 48, 96 wells), Dish (35 mm, 60 mm, 90 mm), and T-flask (25 cm2 , 75cm2) may be selected.

Intuitive interface
With user-friendly functions, the easy-to-use analysis tools such as confluency mark, growth curve and a ruler are build into the included software.

Z-stacking imaging
Capture multiple focal planes and use the Z-stacking function to view high dynamic range (HDR) images.

Image stitching
Stitching combines images for analysis of a single high resolution composite image. This enables analysis of a larger volume and sections.

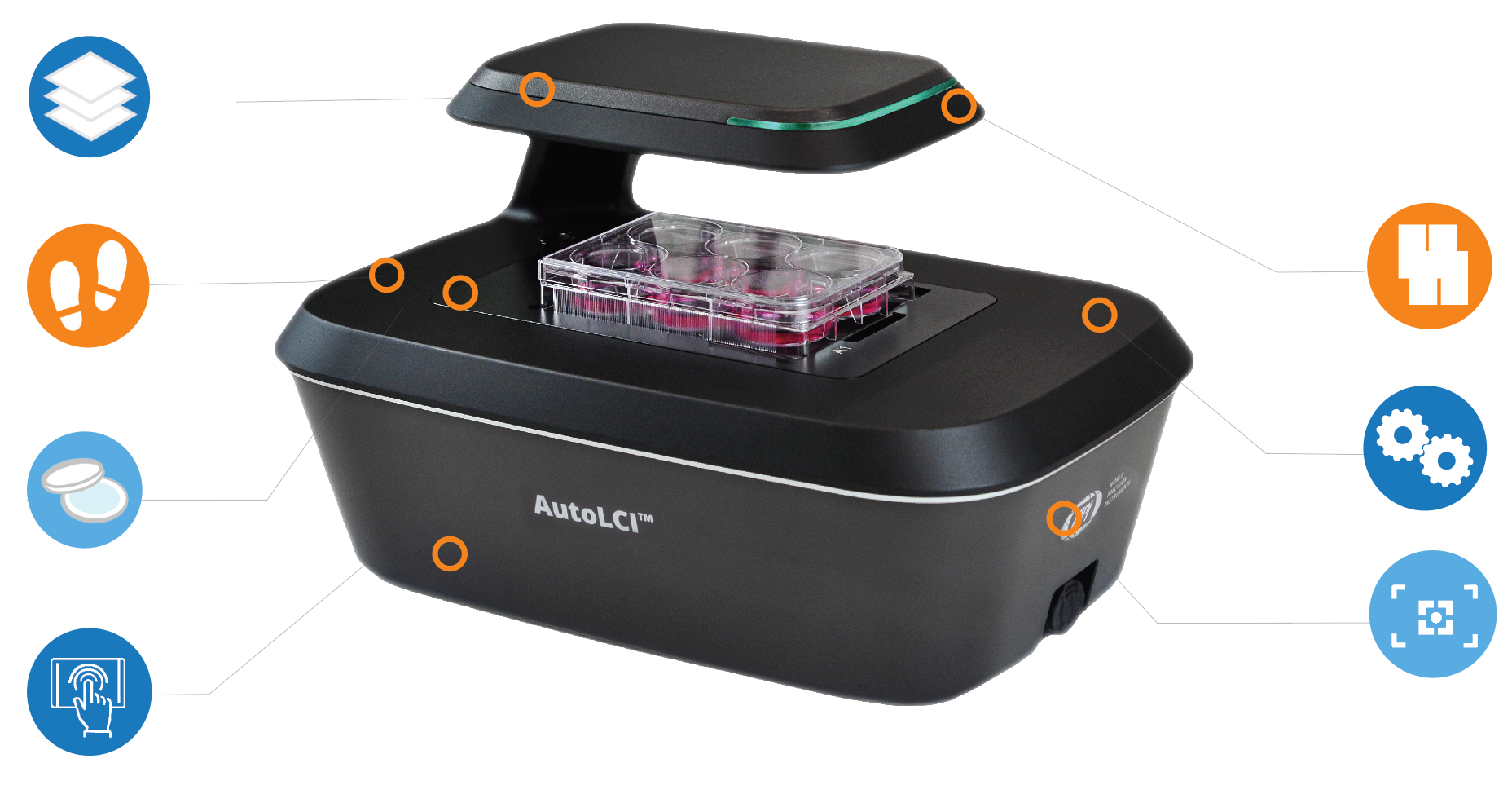

Unique Benefits of AutoLCI

Stable Stage – Get clearer images with a stable plate. Unlike other devices, AutoLCI has a fixed stage and the optics move.

Open-Source Data – Unlike other brands, AutoLCI gives you the raw images so that you can work with any analysis software you prefer, like Image J.

Regular Software Updates – Stay current with all the new functions of the AutoLCI software. Customers are lifetime members and are never charged for the software updates.

Unlimited Software Usage License – Multiple users may analyze images using their own computers (after the scanning is complete) without additional fees. Other brands limit usage to one computer.

Features

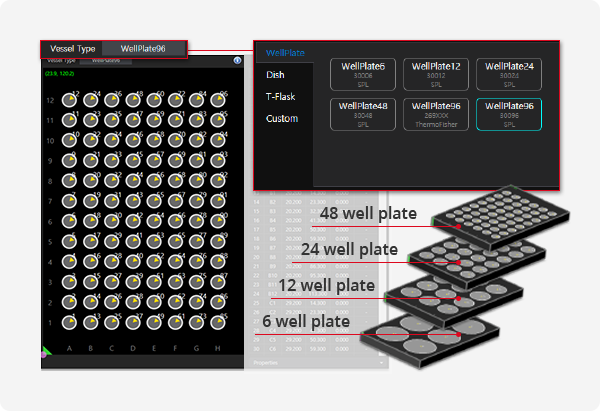

Multipoint imaging

The optics system travels 117mm x 77mm, x and y axis respectively, multiple points within the travel range can be captured following the schedule (intervals, cycles, total time) set by the researcher.
Different kinds of vessels can be used (Well plates, dishes, flasks, slides)

AUTOLCI

AUTOLCI

Stable imaging performance

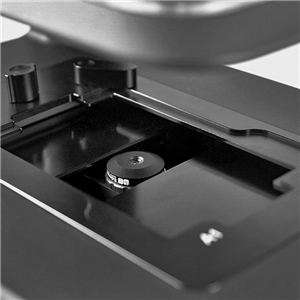

AutoLCI doesn’t have a moveable stage but instead, the camera located inside the system moves to capture the images of cell in multiple positions
Precise and sensitive fluorescence detection is possible with the integrated hard-coated optical set and LED filter with more than 50,000-hour lifetime.

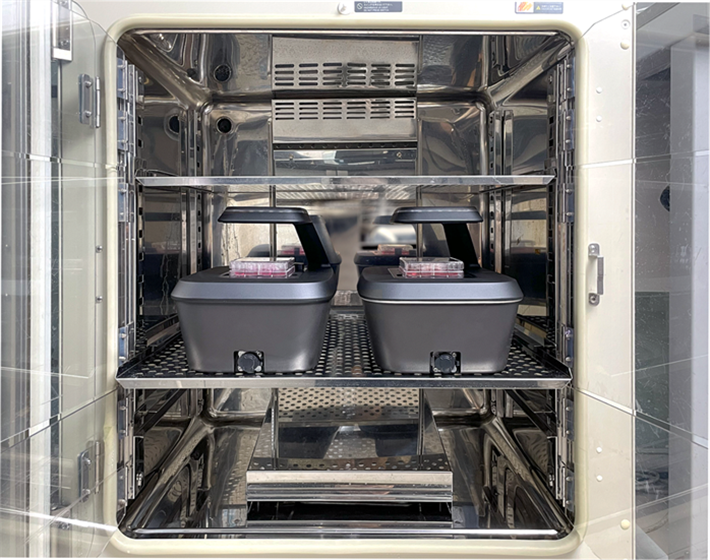

Compact size

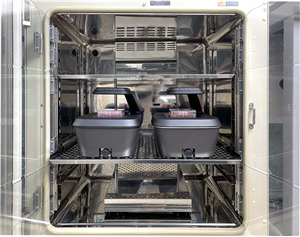

AutoLCI is compact in size with 226(h) x 358(l) x 215(w)mm where several AutoLCI systems can fit into a standard CO2 incubator.
Maintaining the performance of a device working in a hot and humid environment is very challenging. With AutoLCI, you can easily monitor live cells inside the incubator for a long time without disturbing the environment suitable for cell culture.

AUTOLCI

Scanning Application

The scanning application is used for capturing images. You can preview cells, schedule image capture, adjust light and contrast, and monitor time lapse progression from one intuitive screen. It includes auto-focusing technology that finds a clear focal plane of cells and has excellent repeatability.

Z-Stacking

With the Z-stacking function, where images of multiple planes of focus are merged, spheroid cells can be clearly observed under time-lapse imaging.

Image Stitching

Image stitching lets you capturing multiple images and combine the overlapping parts to enable high-resolution mapping of a large sample area.

Time Lapse Imaging

The AutoLCI Scan app gives you an intuitive interface for scheduling your time-lapse images. You can set the total time, cycle and intervals for the time lapse images of your live cell imaging setup.

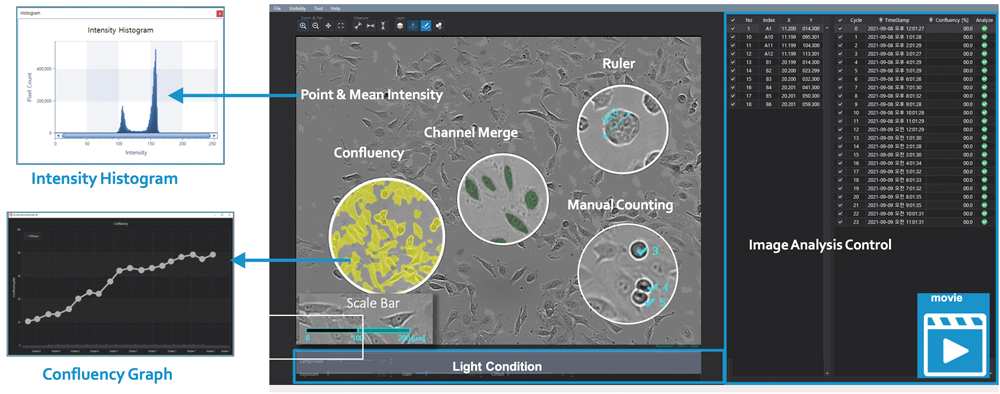

Analysis Application

Auto LCI Analysis has a variety of tools in the analysis application simplify the analytic process, reducing errors and saving time.

  • Intensity Histograms
  • Confluency Graphs
  • Channel Merge
  • Video Creation
  • Time Lapse Imaging
  • Manual Counting
  • Measurement
  • Z-Stacking Image
  • More

Specifications

Type Description
Dimension 226 x 358 x 215 mm
Weight 5.6kg
Objective Lens 4X
Imaging modes Bright field
Fluorescence N/A
Light source LED
Camera 5MP CMOS
Optics Stage Motorized XYZ
Imaging positions Multiple
File export format TIFF, AVI, JPEG, PNG
Culture vessels Well plate (6, 12, 24, 48, 96 wells), Dish* (35 mm, 60 mm, 90 mm), and T-flask* (25 cm2 , 75cm2)
Operating environment 10~40°C, 20~95% humidity
Power requirements 100-240V, ~50/60Hz

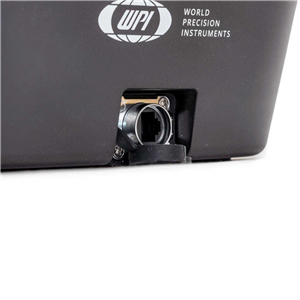

Output ports Ethernet
Software** AutoLCI Scan and AutoLCI Analysis

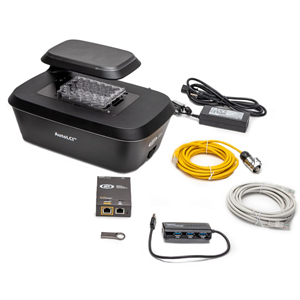

Accessories PoE adapter, ethernet cable, USB/LAN adapter, USB memory
Warranty 1 year


* Requires optional adapters

** Requires External PC/Laptop with Windows 10 (not included with system). Recommended specs for PC/Laptop: Storage >1TB; Monitor: 1920 x 1080 pixels (Full HD)

Accessories


Choose Quantity
505627

505627

AutoLCI Adapter for T-Flask 75 cm2, Single

View details...


Choose Quantity
505628

505628

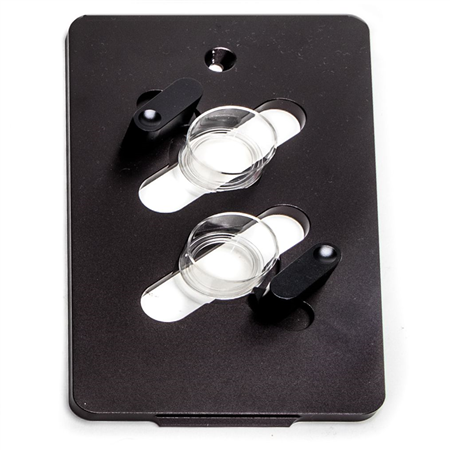

AutoLCI Adapter for 35 mm FluoroDish, Dual

View details...


Choose Quantity
505630

505630

AutoLCI Adapter for 90 mm Dish

View details...


Choose Quantity
505626

505626

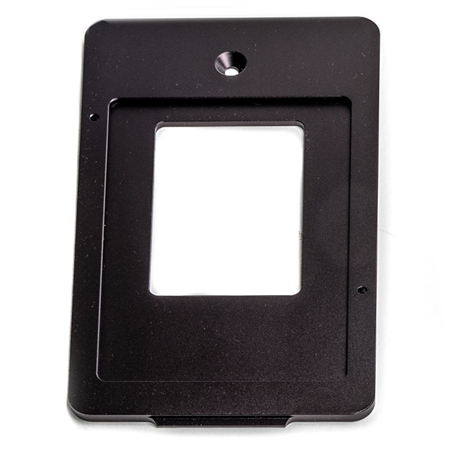

AutoLCI Adapter for T-Flask 25 cm2, Single
