MCFX-400

Overview

Key Features

• Uniaxial stretch of 16 culture wells in a single-use silicone well plate
• 0.25mm thick membranes for high-magnification imaging using an inverted microscope
• PC-independent operation
• User-friendly interface software for specifying simple, cyclic, and intermittent stimulation protocols for download to the device controller

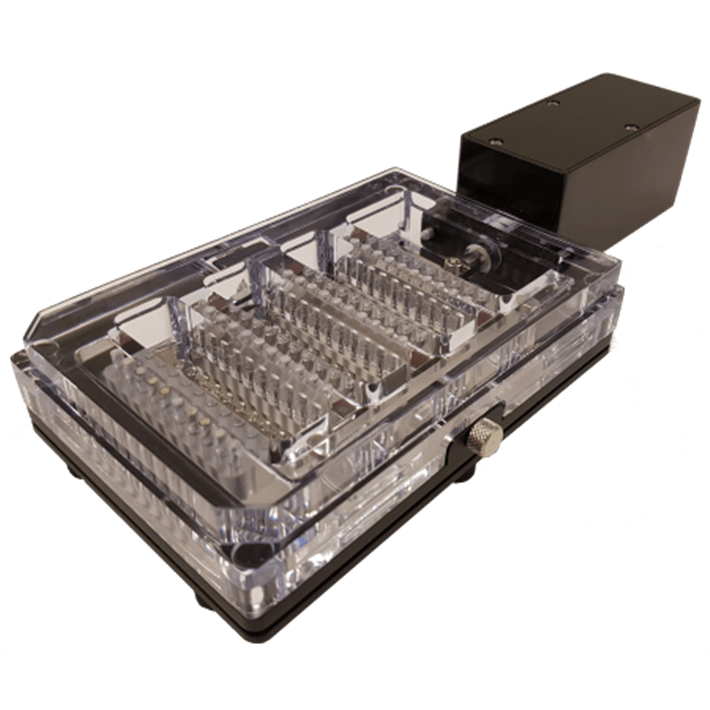

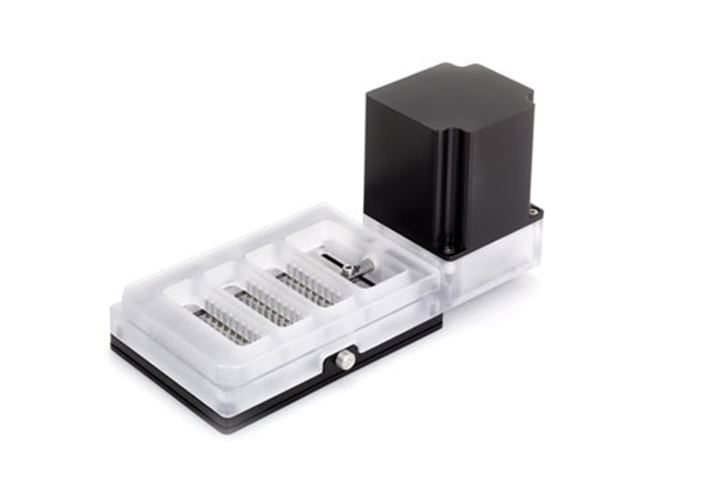

The MCFX uses a single-use flexible silicone well plate to culture cells in much the same environment as a traditional polystyrene well plate. After allowing the cells to develop adhesion to the well bottom, the MCFX can execute a user-specified stretch protocol to the well plate, causing the cells to deform. The well bottoms have similar optical properties to a glass coverslip, permitting high-magnification imaging of the cultured cells. The well plates can be sterilized and the system is suitable for long-term cell culture in a laboratory incubator.

Adhered Cell Monolayer Culture

Single-use silicone well plate.  Cell culture wells are 8mm X 8mm with a 0.25mm thick transparent bottom membrane. The 16 cell culture surfaces are shown in red.







Specifications

Dimensions	19 X 9 X 10 cm
Weight	1 kg
Stimulation mode	Uniaxial tension
Configuration	Cell monolayer
Culture area	16 wells, 8mm X 8mm
Maximum strain	12.5%
Maximum Velocity	10 mm/s
Maximum Cycle Frequency	5 Hz
Loading capacity	30 N
Media volume/well	0.5 mL

Accessories

Citations

Angela Papalamprou, Victoria Yu, Angel Chen, Tina Stefanovic, Giselle Kaneda, Khosrowdad Salehi, Chloe Castaneda, Arkadiusz Gertych, Juliane D Glaeser,  View ORCID ProfileDmitriy Sheyn (2021). Directing iPSC Differentiation into iTenocytes using Combined Scleraxis Overexpression and Cyclic Loading.

Thompson, C.L.; McFie, M.; Chapple, J.P.; Beales, P.; Knight, M.M. (2021). Polycystin-2 Is Required for Chondrocyte Mechanotransduction and Traffics to the Primary Cilium in Response to Mechanical Stimulation. International journal of molecular sciences vol. 22,9 4313. 21 Apr. 2021, doi:10.3390/ijms22094313

Tran, R.D.H.; Morris, T.A.; Gonzalez, D.; Hetta, A.H.S.H.A.; Grosberg, A. (2021). Quantitative Evaluation of Cardiac Cell Interactions and Responses to Cyclic Strain. Cells vol. 10,11 3199. 17 Nov. 2021, doi:10.3390/cells10113199

Rogers, J.D., Holmes, J.W., Saucerman, J.J. and Richardson, W.J. (2020). Mechano-Chemo Signaling Interactions Modulate Matrix Production by Cardiac Fibroblasts. Matrix biology plus vol. 10 100055. 30 Dec. 2020, doi:10.1016/j.mbplus.2020.100055

Tran, R.D., Siemens, M., Nguyen, C.H., Ochs, A.R., Zaragoza, M.V. and Grosberg, A. (2020). The Effect of Cyclic Strain on Human Fibroblasts With Lamin A/C Mutations and Its Relation to Heart Disease. Journal of biomechanical engineering vol. 142,6 (2020): 0610021–0610029. doi:10.1115/1.4044091

N. Shealy, J. Rex, A. Bradshaw, C. Gross (2019). Dynamic Stretching of Fibrillar Collagen Enhances Cross-linking by Transglutaminas. Foot & Ankle Orthopaedics, Oct. 2019, doi:10.1177/2473011419S00380.

S. N. Bradley (2018). Stretching Vascular Smooth Muscle Cells on Micropatterned Surfaces.

P.R. Sonavane, C. Wang, B. Dzamba, G.F. Weber, A. Periasamy, D.W. DeSimone (2017). Mechanical And Signaling Roles For Keratin Intermediate Filaments In The Assembly And Morphogenesis Of Mesendoderm Tissue At Gastrulation. Development (Cambridge, England) vol. 144,23 (2017): 4363-4376. doi:10.1242/dev.155200

D. Gaspar, A. Pandit, D. Zeugolis (2017). Tenogenic Phenotype Maintenance And Differentiation Using Macromolecular Crowding And Mechanical Loading. FASEB journal : official publication of the Federation of American Societies for Experimental Biology vol. 33,4 (2019): 5741-5754. doi:10.1096/fj.201802451R
