IX83TB-WSKM-G-CL

IX83TB-WSKM-G-CL

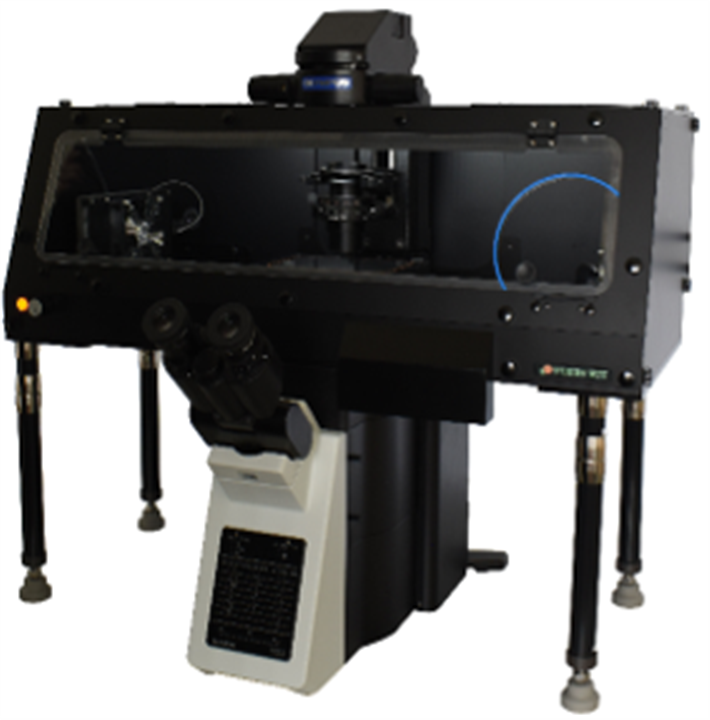

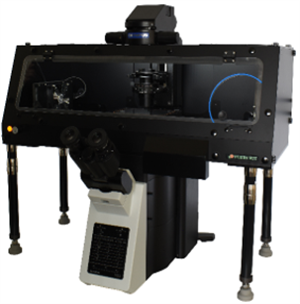

Transparent type ThermoBox incubator package for Olympus IX3



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

IX83TB-WSKM-G-CL

There are 1 images available to view - click to enlarge and scroll through the product gallery.

The system includes:

  • Dark Enclosure
  • Temperature controller for Enclosure
  • Cost-effective Stage Top Incuator for general XY motorized/manual stage with 110x160mm opening stage.
  • Stage Top Incubator temp. controller with built-in digital gas mixer for 100%CO2 gas use.
  • Dish Holder set for wellplate, 35mm, 60mm, chamber slide, slideglass and chambered coverglass.

To install IX3-SSU motorized stage, it requires optional Stage Adapter (MK-IX3).

Specifications



Temperature Control PID Control
Increments 0.1°C by digital switches
Setting Method Digital switch, up/down key
Setting Range Room temperature ~ 40°C
Sensor Accuracy ±0.5°C
Sensor Type Thermocouple type K
Rising Time 30 minutes to reach 37°C inside the box under room temperature 25°C
Power Source AC 100~240V 50/60Hz
Maximum Power Consumption 160W
