Submerged slice preparations with easy objective and microelectrode access
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 1 images available to view - click to enlarge and scroll through the product gallery.
MS1 Brochure
/ Download as PDF

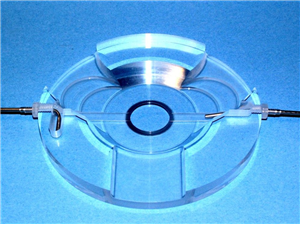

The MS1 chamber has been designed for use with fixed-stage upright-type microscopes. The particular feature of this chamber is the profiled contour that allows the microscope objective to sweep across the preparation when changing magnification, without having to adjust the focusing. In this way the specimen and any pre-positioned microelectrodes remain par-focal. This is particularly useful for confocal microscopy where it is the intention to combine electrophysiology and precise localisation of structures (Emptage, Bliss & Fine, 1999). The design also allows for movement of objectives that swing from front to back (see below).
Schematic
Parts description

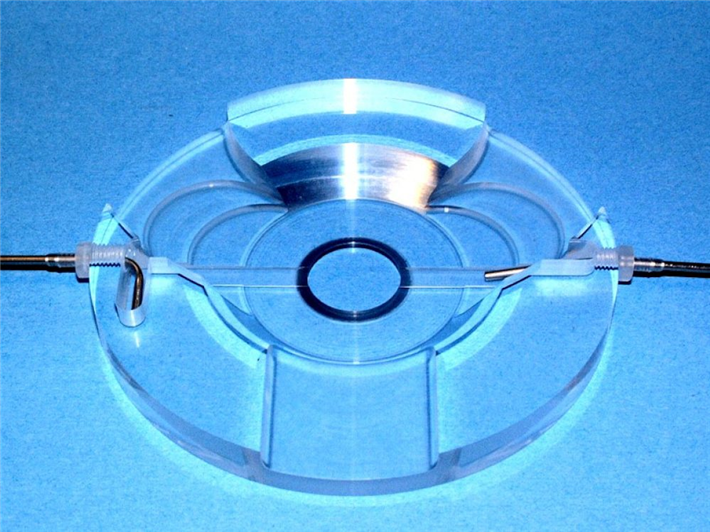

Perfusion solution enters from one side (right) via a stainless steel tube and exits through a well (left) in which a movable “L” shaped tube attached to a pump/suction line adjusts the fluid level. The profile slopes in towards the central coverslip base so that the perfusion solution forms a pool around the preparation whilst being refreshed by the flow created by the inlet and exit ports. Solutions can be pre-warmed before entering the chamber with the Mini Heating Module MH02.
