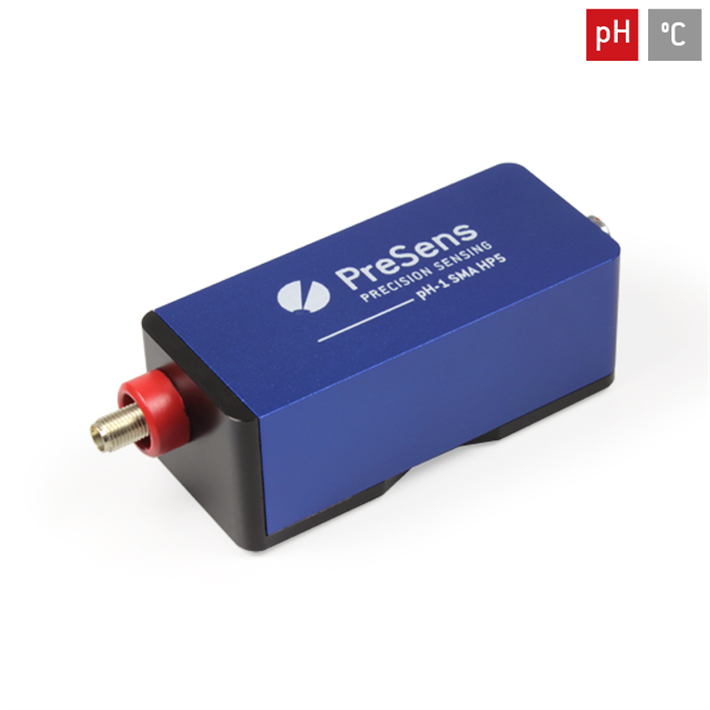

pH-1 SMA HP5

Overview

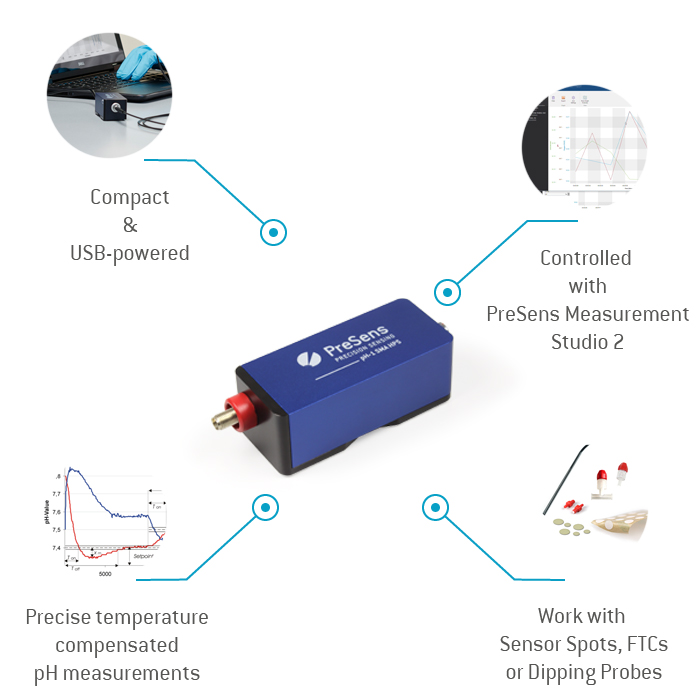

Compact Fiber Optic pH Meter

• Measurement range of pH 5.5 - 8.5
• Compact system with small outer dimensions
• Lightweight (only 128 g)
• USB-powered
• Controlled by PreSens Measurement Studio 2
• For use with non-invasive sensors, dipping probes & flow-through cells
• One calibration for a multitude of sensor spots

Due to its small outer dimensions pH-1 SMA HP5 can be set up almost anywhere. It is compatible with non-invasive sensors, dipping probes and flow-through cells of type HP5 & HP8 (measurement range pH 5.5 - 8.5). pH-1 SMA HP5 has temperature compensation, so even in environments with changing temperatures precise pH measurements can be performed. The optical pH sensor can directly be integrated in bioreactors and cultivation vessels, and are read out with pH-1 SMA HP5 non-invasively from the outside. It is not necessary to open the vessel or take samples for measurements, so there is no risk of contamination. This USB-powered pH meter is operated with the PreSens Measurement Studio 2 software, which enables simultaneous control of several PreSens pH, O2 and CO2 devices, so measurement networks can be set up. With numerous features, the software makes the pH-1 SMA HP5 applicable in almost any application where precise pH measurements are needed.

Applications

Compact pH Meters for Culture Monitoring pH-1 SMA devices are ideally suited for benchtop applications. Combined with non-invasive pH Sensor Spots they allow continuous culture monitoring in transparent bioreactors or other culture vessels without the risk of contamination. Connected to pH flow-through cells the pH in perfusion systems and bypaths can easily be determined. The pH-1 SMA devices are quickly installed, easy to operate and even multiple devices can be controlled from one PC. No matter if lab space or time are limited - pH-1 SMA is the solution for culture monitoring!

pH-1 SMA for Biological Research Check the pH in tissue or sediment samples, or measure pH continuously in perfusion systems. The pH-1 SMA devices can be set up in a few quick steps and fit almost anywhere. As the devices are powered via USB no extra power connection, cables or adapter are necessary. Use them for fast pH checks in samples of for continuous long-term measurements. Applicable with different sensor designs, from slender dipping probes and flow-through cells to non-invasive pH Sensor Spots, the pH-1 SMA can be used for pH monitoring in various measurement set-ups and applications.

Specifications

pH sensors	HP5 / HP8 (optical SMA connector, 2 mm POF)
Temperature sensor	1 x Pt100 temperature connection (sensor not included)
Temperature performance	From 0 °C to + 50 °C, resolution ± 0.1  °C, accuracy ± 1.0  °C
Power supply	5 VDC (USB-2.0-Mini-B, cable included)
Temperature: operating / storage	0 °C to + 50 °C / + 5 °C to + 40 °C
Relative humidity	0 % to 80 % (non-condensing)

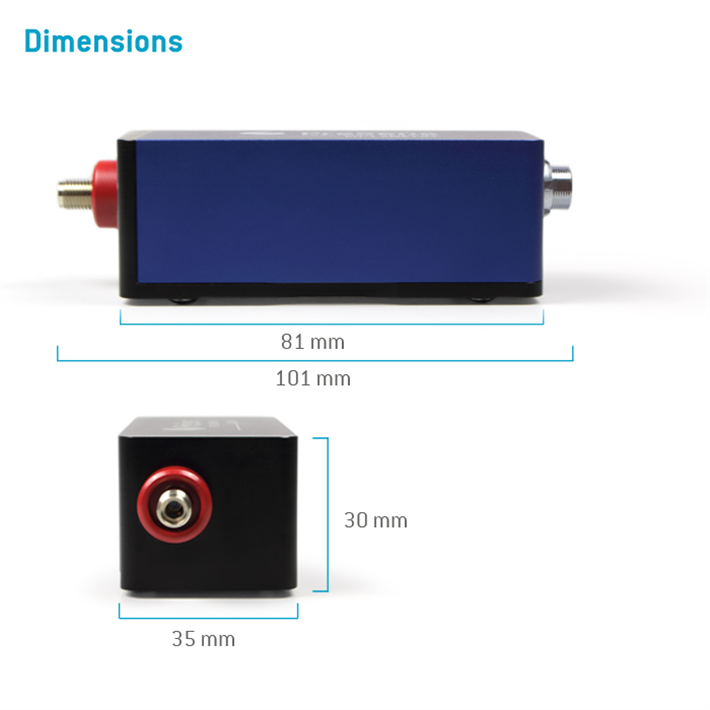

Dimensions	101 mm (with connectors) x 35 mm x 30 mm
Weight	128 g
Digital interface	USB interface cable to PC, cable included
