SDR2

SDR2

Super Dri-Ref Reference Electrode



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

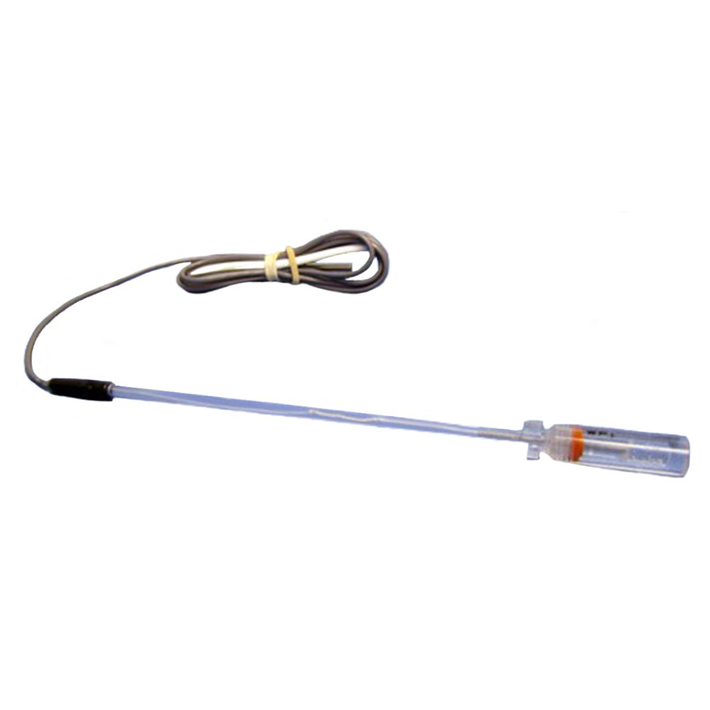

SDR2 Super Dri-Ref Reference Electrode

There are 1 images available to view - click to enlarge and scroll through the product gallery.

DRIREF Instruction Manual
/ Download as PDF

  • 1.5mm diameter
  • Does not leak electrolyte at all
  • Stable and reproducible potential
  • Low resistance

Low leakage properties

Dri-Ref™ reference electrodes were developed by WPI to have extremely low electrolyte leakage properties, hence the name "Dri-Ref". In addition to this key feature, these electrodes exhibit stable and reproducible potential and low resistance. Stored in KCl when not in use, they have a long life expectancy.

Use with ion selective electrodes

Although the internal filling solution contains KCl, the low fluid leakage means Dri-Ref may be used in combination with ion selective electrodes, including those for K+ and Cl-, without significant contamination from the reference electrode.

Chemically resistant

The Dri-Ref electrodes are chemically resistant to strong acids and alkalines. Dri-Ref electrodes are not suitable for use in organic solvents.

Super Dry

SUPER-Dri-Ref, a reference electrode with a diameter of 2mm, does not leak electrolyte at all. Exhibiting the electrical stability of a classic flowing junction reference cell, this electrode exhibits low resistance and a stable half-cell potential essentially independent of sample electrolyte concentration. SUPER-Dri-Ref is ideal for small volume and low salt concentration measurements.

Specifications

Length 9 cm
Diameter 2 mm
Construction PVC
Lead Length 30 in. (76cm)
Connector 2 mm pin
Resistance (typical) < 5 KΩ
Filling Solution KCl
Leakage (mL/hr) -
