DRIREF-L

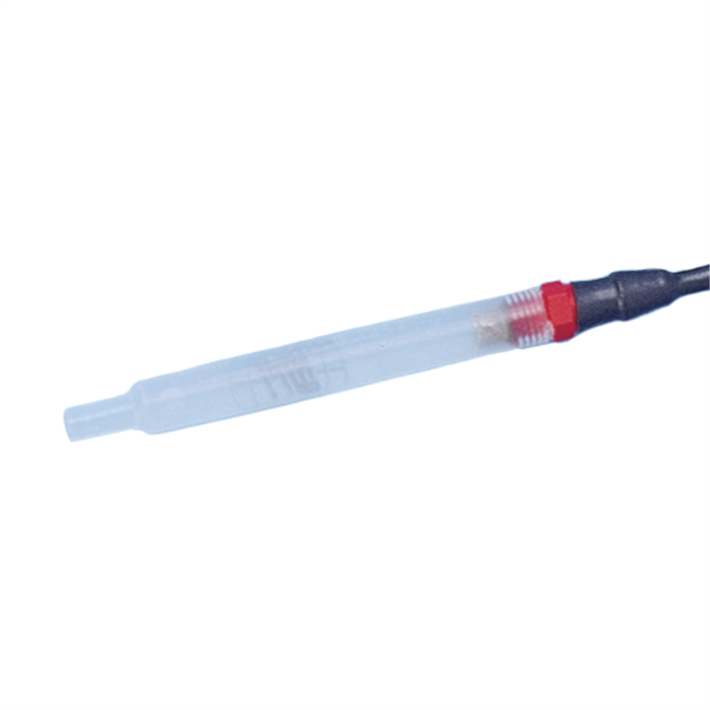

Dri-Ref Reference Electrode with Luer Tip
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 1 images available to view - click to enlarge and scroll through the product gallery.
DRIREF-L Instruction Manual
/ Download as PDF
- Extremely low electrolyte leakage properties
- Stable and reproducible potential
- Low resistance
Low leakage properties
Dri-Ref™ reference electrodes were developed by WPI to have extremely low electrolyte leakage properties, hence the name "Dri-Ref". In addition to this key feature, these electrodes exhibit stable and reproducible potential and low resistance. Stored in KCl when not in use, they have a long life expectancy.
Use with ion selective electrodes
Although the internal filling solution contains KCl, the low fluid leakage means Dri-Ref may be used in combination with ion selective electrodes, including those for K+ and Cl-, without significant contamination from the reference electrode.
Chemically resistant
The Dri-Ref electrodes are chemically resistant to strong acids and alkalines. Dri-Ref electrodes are not suitable for use in organic solvents.
Luer tip electrode
The male luer fitting at the front of the DRIREF-L allows it to be easily connected to a female luer port (see WPI™s luer fittings kit) to form a tight seal — a very convenient installation for a flow-through system.
Specifications
| Length | 7.5 cm |
| Diameter | Standard Luer |
| Construction | Polypropylene |
| Lead Length | 30 in. (76cm) |
| Connector | 2mm pin |
| Resistance (typical) | ~500 Ω |
| Filling Solution | KCl |
| Electrolyte Leakage | ~7.4x10-7 |
