DRIREF-5SH

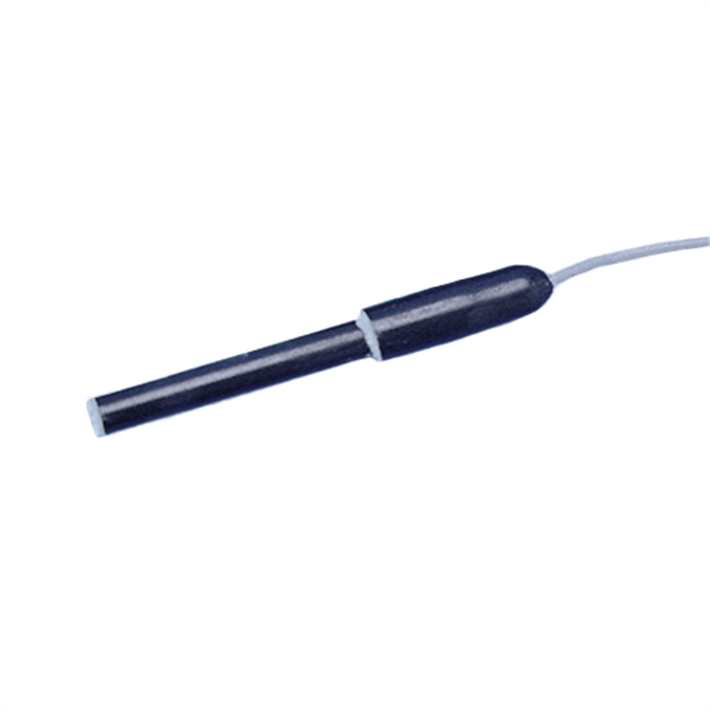

Dri-Ref Reference Electrode, 4.7mm diameter (short)
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 1 images available to view - click to enlarge and scroll through the product gallery.
DRIREF Instruction Manual
/ Download as PDF
- 4.7 mm diameter (short)
- Extremely low electrolyte leakage properties
- Stable and reproducible potential
- Low resistance
Low leakage properties
Dri-Ref™ reference electrodes were developed by WPI to have extremely low electrolyte leakage properties, hence the name "Dri-Ref". In addition to this key feature, these electrodes exhibit stable and reproducible potential and low resistance. Stored in KCl when not in use, they have a long life expectancy.
Use with ion selective electrodes
Although the internal filling solution contains KCl, the low fluid leakage means Dri-Ref may be used in combination with ion selective electrodes, including those for K+ and Cl-, without significant contamination from the reference electrode.
Chemically resistant
The Dri-Ref electrodes are chemically resistant to strong acids and alkalines. Dri-Ref electrodes are not suitable for use in organic solvents.
Specifications
| Length | 3.5cm |
| Diameter | 4.7mm |
| Construction | Epoxy |
| Lead Length | 30 in. (76cm) |
| Connector | 2 mm pin |
| Resistance (typical) | ~500Ω |
| Filling Solution | KCl Electrolyte |
| Leakage (mL/hr) | ~7.4x10-7 |
Notes: Isoplast is a trade mark of Dow Chemical. Teflon is a trade mark of DuPont.
Accessories
Citations
Caterino, Roberta et al. 2015. “Photocurrent Generation in Diamond Electrodes Modified with Reaction Centers.” ACS applied materials & interfaces. https://dx.doi.org/10.1021/acsami.5b00711 (April 8, 2015).
