DRIREF-2

DRIREF-2

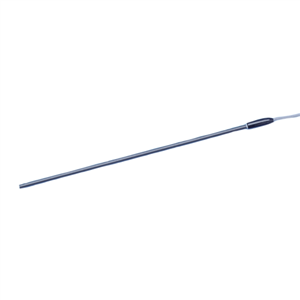

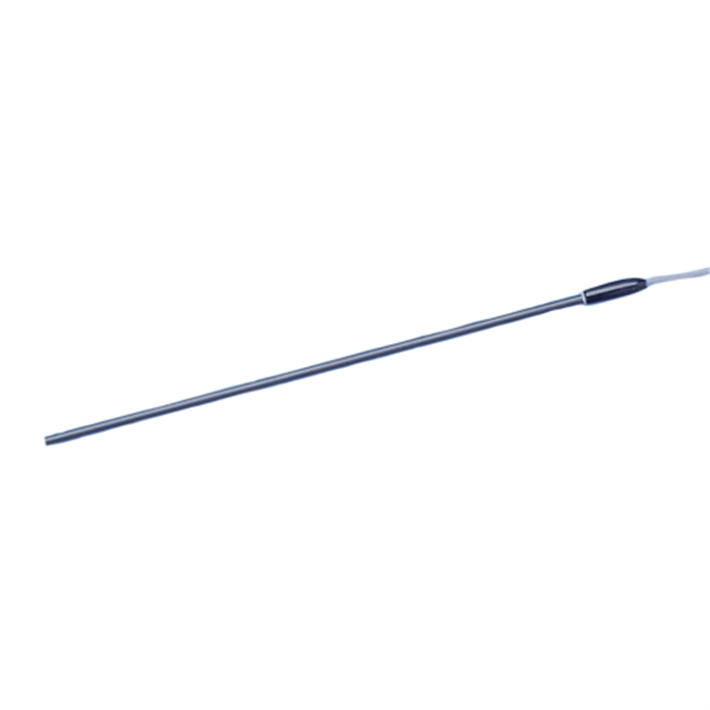

Dri-Ref Reference Electrode, 2mm diameter



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

DRIREF-2

There are 1 images available to view - click to enlarge and scroll through the product gallery.

DRIREF Instruction Manual
/ Download as PDF

  • 2 mm diameter
  • Extremely low electrolyte leakage properties
  • Stable and reproducible potential
  • Low resistance

Low leakage properties

Dri-Ref™ reference electrodes were developed by WPI to have extremely low electrolyte leakage properties, hence the name "Dri-Ref". In addition to this key feature, these electrodes exhibit stable and reproducible potential and low resistance. Stored in KCl when not in use, they have a long life expectancy.

Use with ion selective electrodes

Although the internal filling solution contains KCl, the low fluid leakage means Dri-Ref may be used in combination with ion selective electrodes, including those for K+ and Cl-, without significant contamination from the reference electrode.

Chemically resistant

The Dri-Ref electrodes are chemically resistant to strong acids and alkalines. Dri-Ref electrodes are not suitable for use in organic solvents.

Specifications

Length 13cm
Diameter 2mm
Construction Isoplast
Lead Length 30 in. (76cm)
Connector 2mm pin
Resistance (typical) ~2.7 KΩ
Filling Solution KCl
Electrolyte Leakage ~5.7x10-8
Notes:

Isoplast is a trade mark of Dow Chemical. Teflon is a trade mark of DuPont.
