ISO-COP-2

Overview

• For use with Apollo1000, Apollo4000, TBR4100 and TBR1025
• Response Time:
• Lowest Detection Limit: ~10nM
• Sensitivity: ~0.5pA/nM
• Application: Cell Cultures
• Package of 1

Details

Carbon monoxide (CO) is a versatile mediator of physiological processes. Carbon monoxide (CO) formed by internal mechanisms (endogenous) is measured in a variety of ways, but standard measurement methods are of limited utility in most biological systems.  WPI's ingenious ISO-COP-2 CO sensor measures CO in vivo or in vitro in real time!

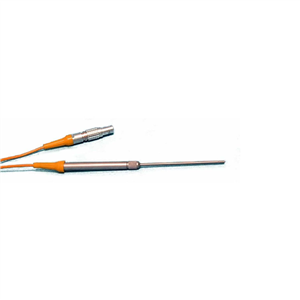

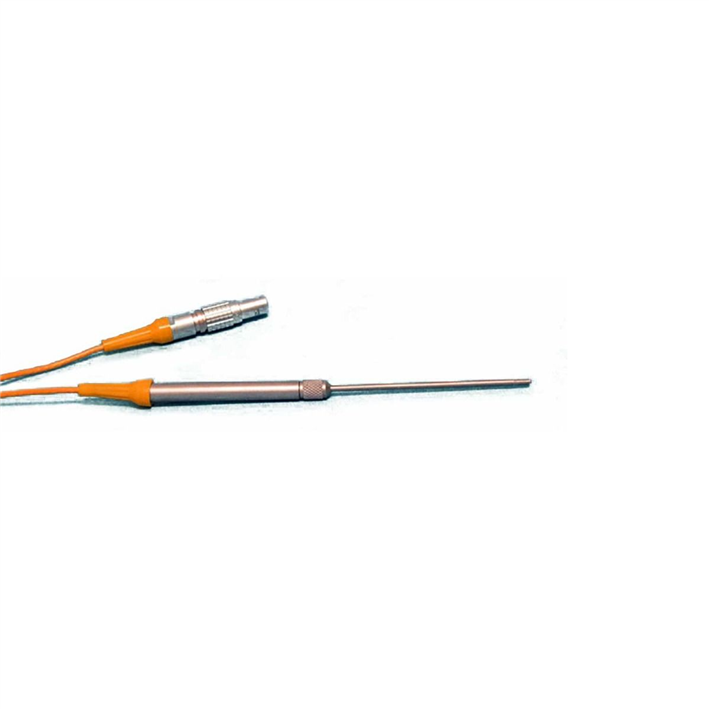

This CO sensor is comprised of a 2.0mm stainless steel body with a replaceable membrane-covered sleeve. The sleeve is filled with electrolyte. It is an amperometric sensor designed for use in cell culture and similar applications.

In principle, CO diffuses through the gas-permeable membrane and is then oxidized to CO2 on the working electrode of the sensor. This oxidation  creates a current with a magnitude directly related to the concentration of CO in solution.

It is designed for use with WPI's TRB4100 (4-Channel) or TBR1025 (1-Channel)  Free Radical Analyzers.

NOTE: The 2mm biosensors come with a spare membrane sleeve, 1cc syringe, an MF28G67 MicroFil needle and 10mL of filling solution.

Specifications

Accessories

Citations

Roberto Motterlini, Philip Sawle, Sandip Bains, Jehad Hammad, Roger Alberto, Roberta Foresti, Colin J. Green "CORM-A1: a new pharmacologically active carbon monoxide-releasing molecule" The FASEB Journal express article 10.1096/fj.04-2169fje, November 19, 2004.
