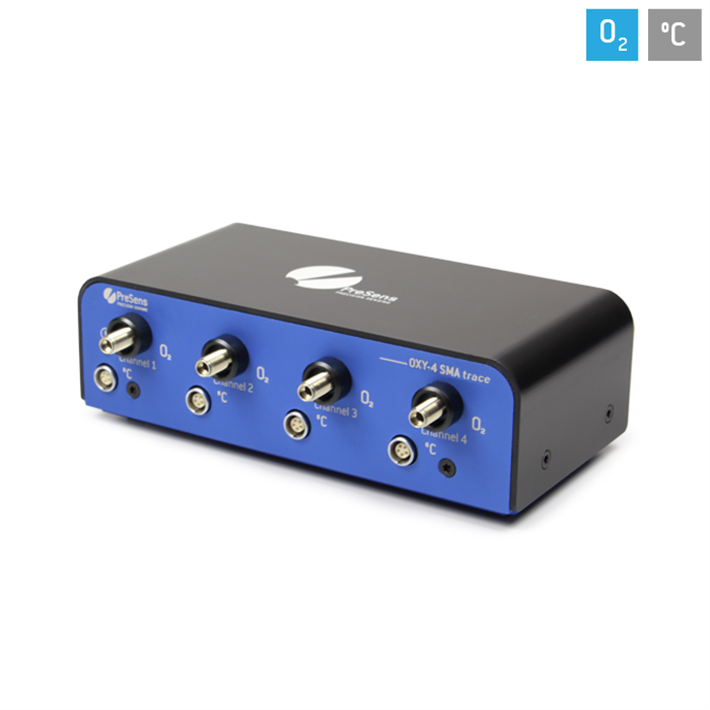

OXY-4 SMA Trace (G3)
Multi-Channel Trace Oxygen Meter
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 2 images available to view - click to enlarge and scroll through the product gallery.

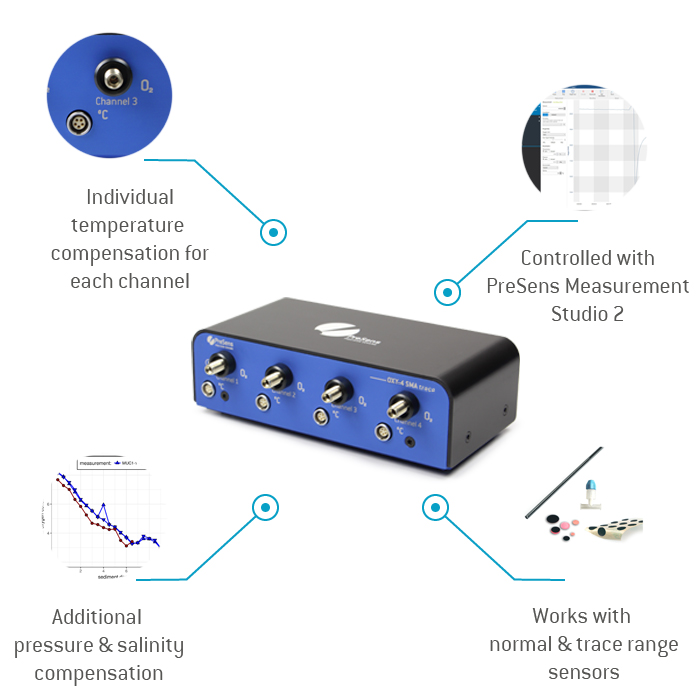

Multi-Channel Trace Oxygen Meter
- 0 – 5 % trace oxygen & 0 – 100 % oxygen measurement range
- Individual temperature compensation for each channel
- Pressure & salinity compensation
- For use with non-invasive sensors, dipping probes & flow-through cells
The OXY-4 SMA trace is compatible with sensor spots, dipping probes and flow-through cells of type PSt3 (detection limit 15 ppb dissolved oxygen, 0 – 100 % oxygen) and type PSt6 (detection limit 1 ppb dissolved oxygen, 0 – 5 % oxygen). With separate temperature compensation for each channel the system ensures most precise oxygen measurements in environments with changing temperatures. OXY-4 SMA trace is operated with the PreSens Measurement Studio 2 software, which offers numerous functions – like additional pressure and salinity compensation – and enables simultaneous control of multiple single and multi-channel devices.
Applications
 |
Food & Beverage: Oxygen Permeation Measurement in PET BottlesNon-invasive oxygen sensors measure both in liquid and in gaseous (headspace) phases. They perform through transparent materials up to a thickness of 10 mm and even through slightly opaque packaging. The measurement is carried out by firmly holding the fiber optic probe against the side of a PET bottle where the sensor spot is positioned. Adjustable mountings and bespoke fixtures are available. This system allows even the parallel measurement of different bottles as the fiber can be moved from bottle to bottle. |
 |
Long-term Measurements in SoilPreSens offers dipping probes for oxygen measurement that does not consume oxygen. Due to their small dimensions they do not disturb the flow and mass-transport and consequently display the in-situ oxygen concentration. As minisensors from PreSens are long-term stable they can be implanted in soil for many years! With this new method the process of soil aeration, which is very critical for plant productivity, can be investigated. Dr. Heidi Heuberger, Technical University of Munich, Munich, Germany |
Specifications
| Oxygen sensors | PSt3, PSt6 (optical SMA connector) |
| Temperature sensor | 4 x Pt100 temperature connection (sensors not included) |
| Temperature performance | From 0 °C to + 50 °C, resolution ± 0.1 °C, accuracy ± 1.0 °C |
| Power supply | Supply voltage: 5 VDC (USB-2.0-Mini-B), current/power: 400 mA |
| Temperature: operating / storage | From 0 °C to + 50 °C / - 20 °C to + 70 °C |
| Relative humidity | From 0 to 80 % (non-condensing) |

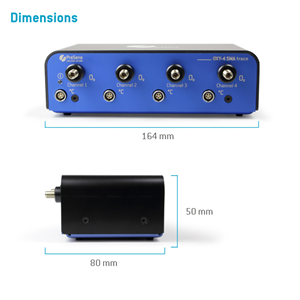

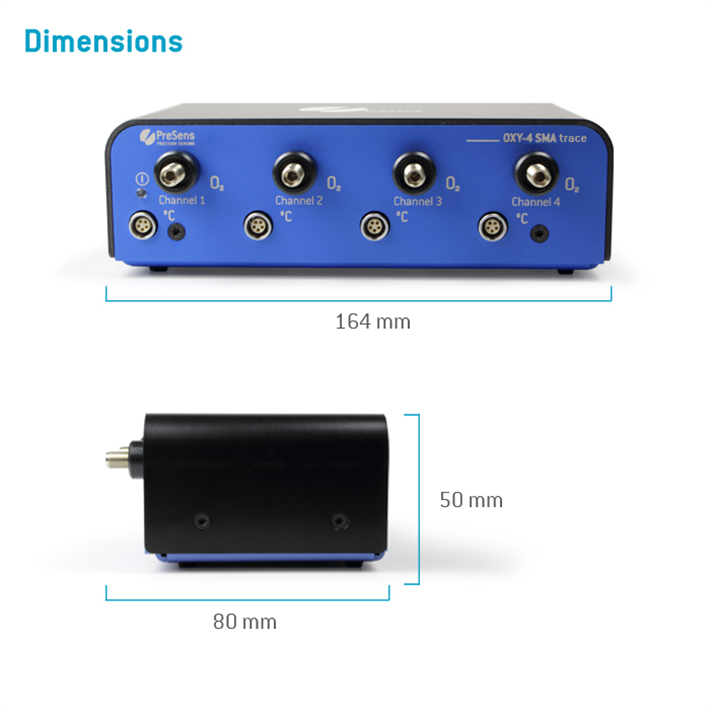

| Dimensions | 164 mm x 80 mm (with SMA connectors) x 50 mm |
| Weight | 590 g |
| Digital interface | USB interface cable to PC, cable included |
