501641

501641

MiniTip - Fiber Optic Oxygen Sensor for use with OXY-MINI-AOT


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

501641

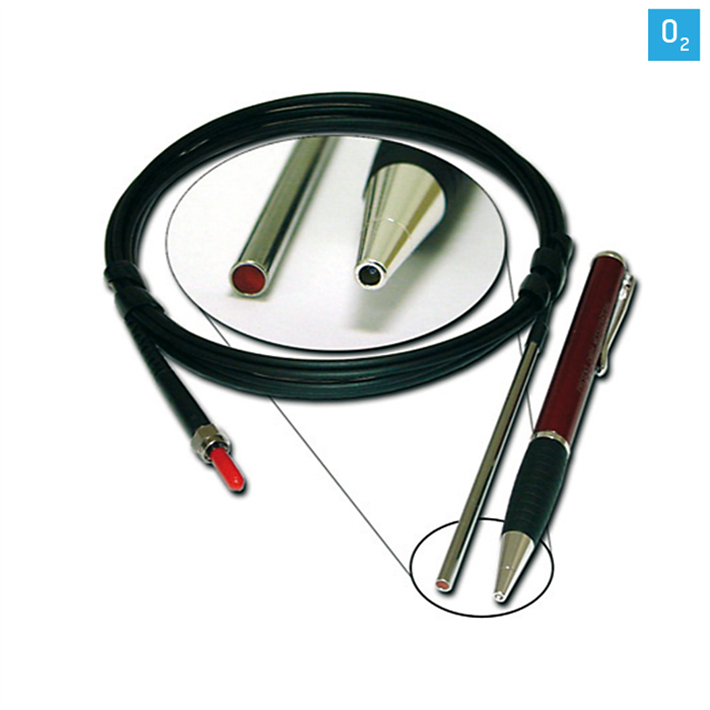

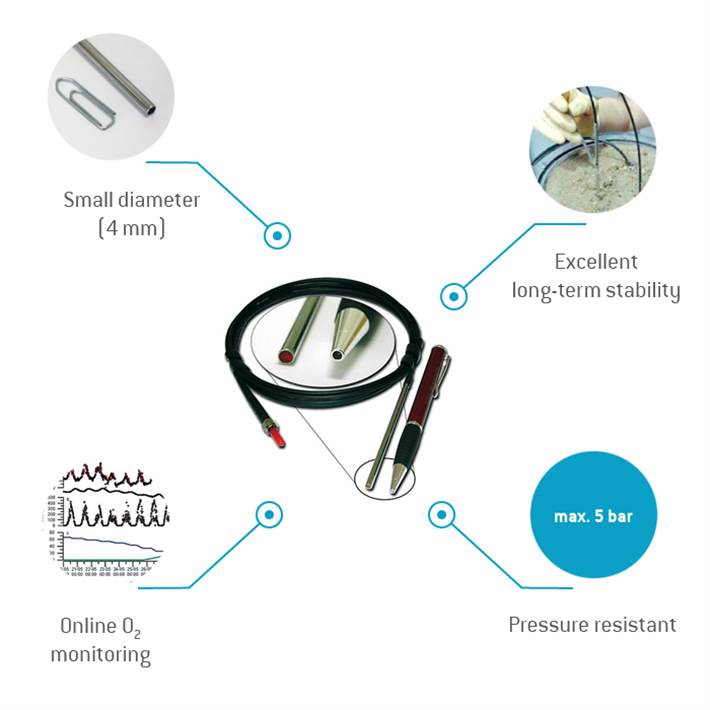

There are 3 images available to view - click to enlarge and scroll through the product gallery.

  • Tip diameter: 4mm
  • Polymer optical fiber with an oxygen sensitive coating

Details

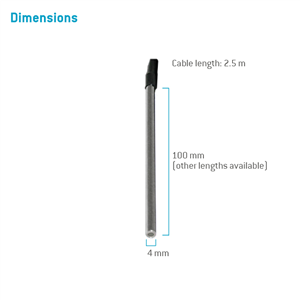

The oxygen dipping probe type PSt3 for measurement in normal oxygen range consists of a polymer optical fiber where one end is coated with an oxygen-sensitive foil. The end of the fiber is covered in a high grade steel tube to protect both the sensor material and the fiber. The steel tube has an outer diameter of 4 mm and a length of 10 cm. Other lengths are available on request. Due to the use of a polymer optical fiber this probe is compatible to temperatures up to + 70 °C.

Specifications

Accessories

Citations

RelatedItems

Featured Publication

Dorsal Root Ganglion Injection and Dorsal Root Crush Injury as a Model for Sensory Axon Regeneration.
[Using WPI's UMP3-1]
