MicroTip - Fiber Optic Oxygen Sensor for use with OXY-MICRO-AOT
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 2 images available to view - click to enlarge and scroll through the product gallery.
- Needle-type housing
- 2.5m cable
- 0-250% Air saturation
- 20mm needle with 27 gauge (0.400mm) diameter
- 50um tip
Details

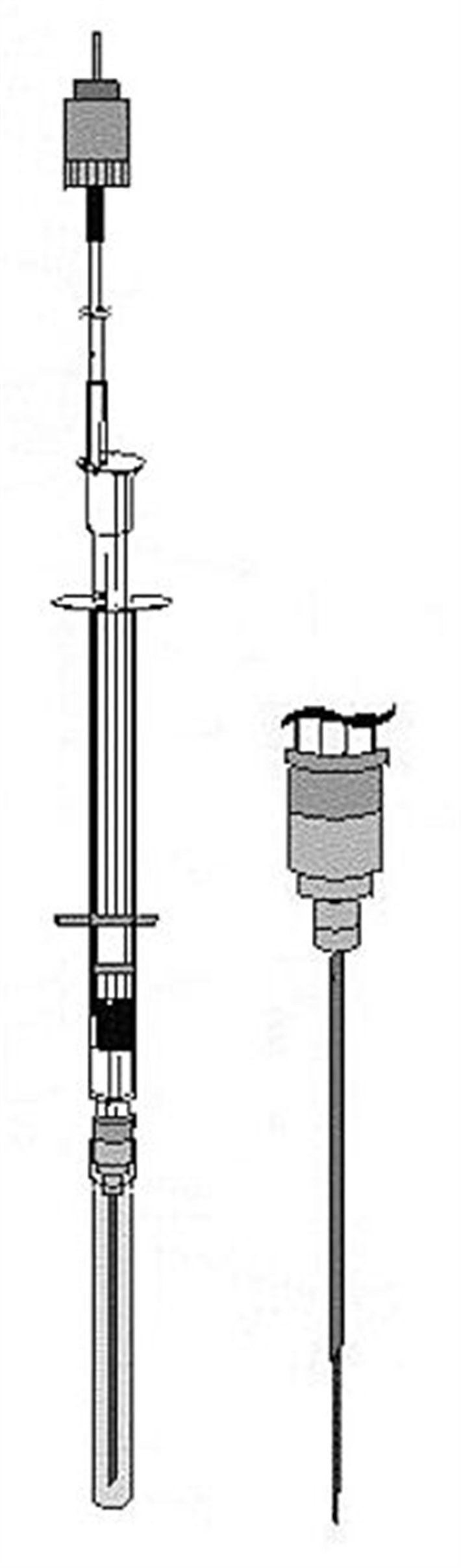

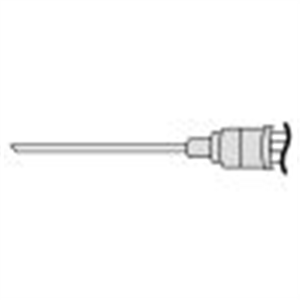

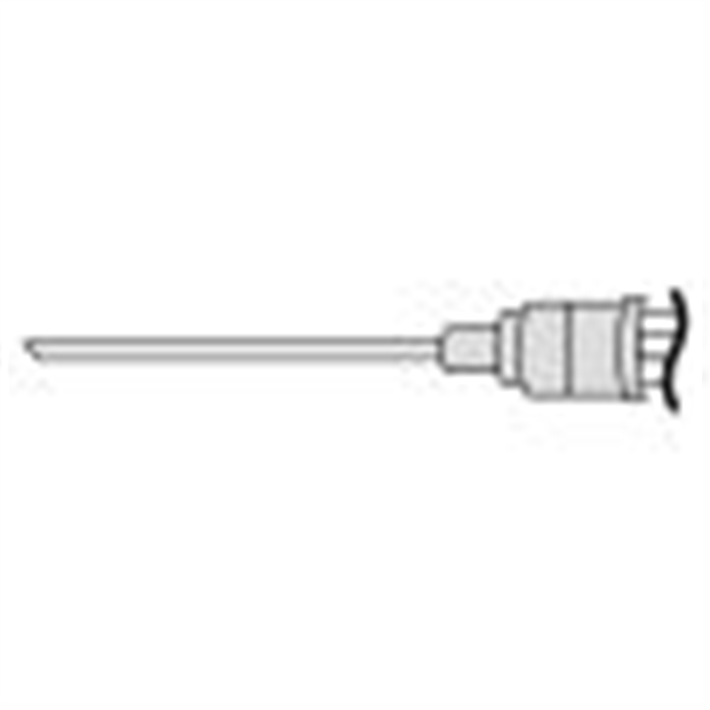

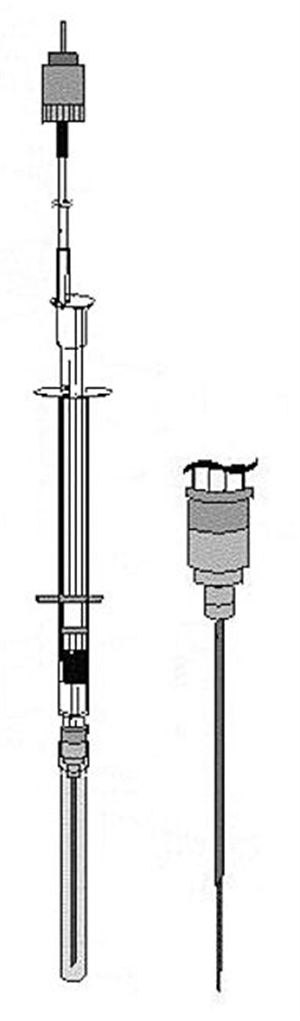

The MicroTip is a needle-type (27 ga.) oxygen micro sensor designed for applications where a small tip size of 50 µm and a fast response time (t90) of 1 s are necessary. The oxygen sensitive sensor tip consists of 140 µm fiber tapered to a 50 µm tip. The sensor is housed inside a stainless steel needle of 22 mm length and 0.4 mm diameter. This allows penetration through a septum rubber or similar material. These sensors are ideal for oxygen profiling in sediments and biofilms.
OPTIONS
501656-C - This sensor is coated for optical isolation. The optical isolation is an optional, opaque, oxygen-permeable material that can be coated over the luminophore that prevents ambient light from reaching the sensor and also prevents excitation light from escaping. This coating lengthens the reponse time due to the adtional layer of material that oxygen must diffuse through to reach the luminophore.
501656-F - This sensor has a 140μm flat tip.
