502245

502245

Manual Microsyringe Injection Holder


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

502245

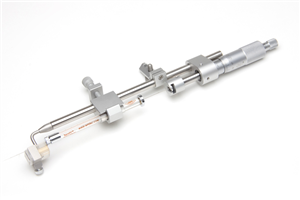

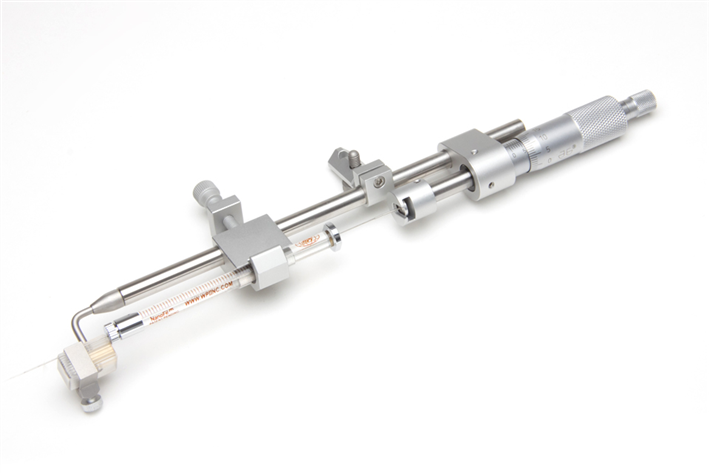

There are 1 images available to view - click to enlarge and scroll through the product gallery.

  • For use with stereotaxic frame
  • 10µm resolution
  • 25mm travel
  • Holds probes 0.3mm to 1.5mm OD

Details

The manual sterotaxic injector provides an economical means of injecting/withdrawing a calibrated volume with simple, precise manual control. Mounted directly to a stereotaxic manipulator, it allows for procise injection directly through the needle into the brain tissue. Syringe volume range: 1μL to 500μL
Movement accuracy: 10μm
Total travel: 25mm

10μL syringe - 0.0018μL/div
25μL syringe - 0.00416μL/div
50μL syringe - 0.012μL/div
100μL syringe - 0.0167μL/div
250μL syringe - 0.0417μL/div
500μL syringe - 0.0833μL/div
