Temperature Controller, 2-Channel w/cable, For Premium Stereotaxic Frames
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview

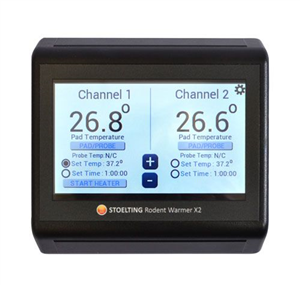

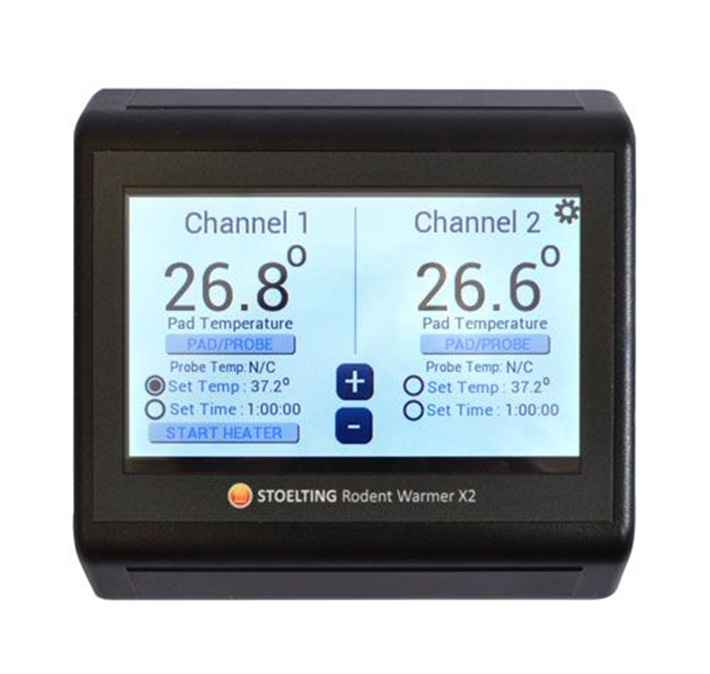

There are 1 images available to view - click to enlarge and scroll through the product gallery.
Minimize heat loss and improve surgical outcomes with Rodent Warmer.
Rodent Warmer is ideal for use before, during or after surgical procedures. Warming the animal the minimizes heat loss and improve surgical outcomes. It can be used as a general warming system or with a rectal probe (505377 sold separately) for more accurate, core temperature monitoring during pre- and post-op surgical procedures.
- Integrated touch screen for easy programming
- Controls two independent heating pads simultaneously
- Rectal probe (sold seperately) for body temperature feedback
- Pre-Op: Heating pad can be placed underneath an induction chamber to reduce heat loss during anesthetic administration.
- During: Place heating pad on a rodent surgery table or stereotaxic instrument to maintain and monitor temperature during surgical procedures
- Post-Op: Cage heating pads can be placed in the animal's home cage for faster recovery following surgical procedures
Premium Stereotaxic's Rodent Warmer X1 vs. the X2
Connecting your Premium Stereotaxic Warming Base to your Rodent Warmer control box
Premium Stereotaxic AP Dove Tail Drive Installation on Lab Standard Stereotaxic Instrument
Specifications
Heating pads are constructed of silicone rubber heaters.
| Type | Description |
| Temperature Control Range | 25-45°C |
| Temperature Resolution | 0.1°C |
| Heater Blanket Connection | 4-pin locking DIN |
| Heater Power | 24VDC@3Amax |
| Power Requirements | 120/240VAC (switchable), 50/60Hz, 75VA |
| Probe Input Connector | Phone jack |
| Probe Dimensions | 0.62in/1.6mm tip diameter |
| Control Box Dimensions | 14 cm (L) x 13 cm (W) x 4 cm (H) |
| Control Box Weight | 380 g |
