GCXX-YY
Neuroscience Guide Cannula (available in 22, 24 or 26 gauge)- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
For in vivo investigation of rodents
- Exceptional Quality
- Best Prices
- Rapid Order Response
- Custom lengths from 1.0-9.9mm (0.1mm increments)
*NOTE: Use 26g Dummy Cap for 24g cannulas
Flexible PE tubing is recommended to connect to Internal Cannula (INC) only, NOT Guide Cannula (GC) or Dummy Cap (DUMC).
504278 matches INC26-XX
504279 matches INC24-XX
504280 matches INC22-XX
Benefits
- Beveled inside and out and polished to remove burrs and ensure that the inside diameter is perfectly cylindrical. This limits trauma to tissue and ensures smooth operation.
- Exceptional quality at the best prices.
Applications
- Drug administration
- Optogenetics
These cannulas for neuroscience study and pre-clinical research includes an entire range of cannula options, including the Guide Cannula, the Internal Cannula and the Dummy Cannula (cap).
 |

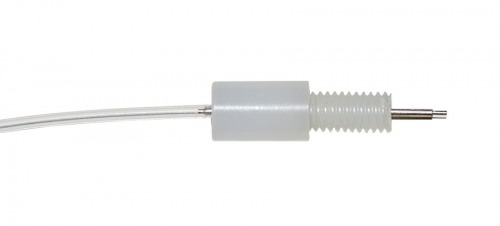

Cannula assembly: fixing screw, internal cannula with attached tubing, and guide cannula.
 |
Internal cannula secured with fixing screw
Specifications
| Gauge | OD | ID |
| 22 | 0.64 | 0.46 |
| 24 | 0.56 | 0.40 |
| 26 | 0.48 | 0.32 |
The Guide Cannula is a surgical grade, stainless steel tube that is implanted into a rodent's skull and cemented into place using dental cement and screws. It guides the Internal Cannula to the specific injection site.
